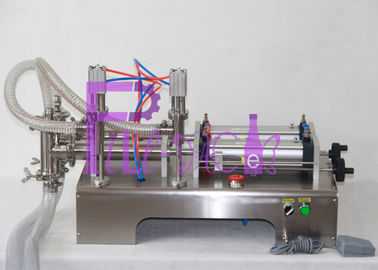

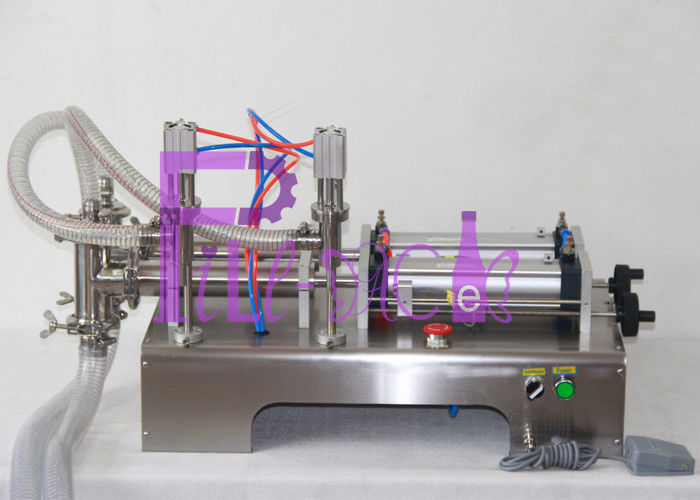

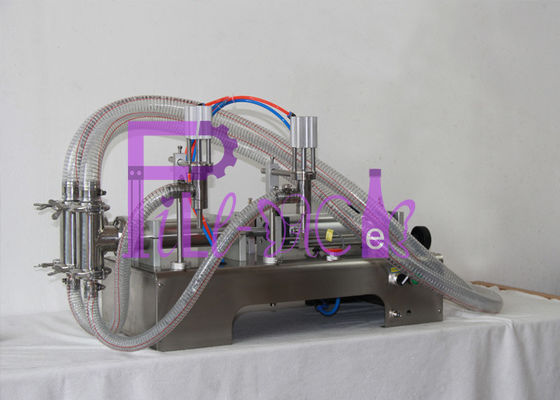

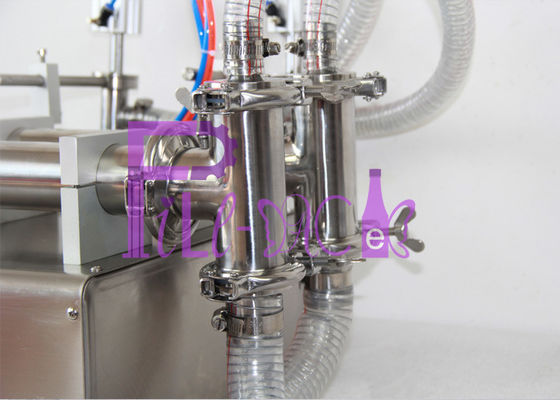

Pneumatic Liquid Filling Divice Double Heads 1000BPH Beverage

Pneumatic Liquid Filling Divice Double Heads 1000BPH Beverage

Product Details:

Place of Origin: ZhangJiaGang JiangSu China
Brand Name: FILL PACK
Certification: CE , ISO9001
Model Number: PFM02

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD $700-$1200/set
Packaging Details: carton case
Delivery Time: 20 working days
Payment Terms: T/T, L/C, D/A, D/P, , MoneyGram
Supply Ability: 20 sets/month
Get Best Price Contact Now

Detail Information

Machine Material: Stainless Steel Capacity: 1000
Automatic Grade: Semi-automatic Air Power: 0.6MPa
Type: Liquid Filling Machine Application: Liquid
High Light:

water production line

,

water bottle filling machine

Product Description

Pneumatic Liquid Filling Divice Double Heads 1000BPH Beverage



Descriptions:



This liquid filling device is used to filling food industry such as pearl milk tea, coco, edible oil, thick broad-bean sauce, and chili sauce, cosmetic industry, such as shampoo, cream, liquid soap and shower gel and so on. It can be used to filling both cream and liquid.


Principle:

The machine adopts pneumatic working principle, simple operation, high filling precision, is a certain concentration or certain size granular materials ideal filling equipment. The machine is equipped with foot switch, it can stop working at any time.



Model:



Items Description Model
1.1.1 Pneumatic Filling Machine 10-100ml
1.1.2 Pneumatic Filling Machine 30-300ml
1.1.3 Pneumatic Filling Machine 50-500ml
1.1.4 Pneumatic Filling Machine 100-1000ml
1.1.5 Pneumatic Filling Machine 500-3000ml
1.1.6 Pneumatic Filling Machine 1000-5000ml
1.2 Air compressor 0.21m3/min 8kg



REMARK:



The machine has round and square hopper, can be customized as customer’s requirements.


Characteristics:



1. The liquid filling device has simple and reasonable structure, high filling precision, it is easy to operate.

2. It is the ideal equipment to filling high viscosity fluid, and scream.

3. The pneumatic parts adopt famous brand pneumatic elements.

4. The material of the machine which contact the liquid are all made of stainless steel. It meets the GMP standard.

5. It equipped with the regulating handle, which can adjust the filling speed freely, the filling precision is high.

6. The machine is drip-proof, avoid drawing, and equipped filling lifting device.



Parameters:



Material: high quality Stainless steel Filling range: 25-2000ml

Air power: 0.6MPa

Working pressure: 0.1-0.5MPa Filling precision: ±1%

Filling speed: 10-30 bottles/min

Air consumption: 0.015-0.025m3/min



Guarantee:



We response for one year warranty for the machine , liquid filling plant , however, it without any human conduct. And provide one-year free spare part for client. And send engineer to client’s company with client’s provision for flight charge and accommodation. Help install the machine, teaching their staff operate the machine and also, we do have a private school which help our client sending their staff to china, help them training.

Pneumatic Liquid Filling Divice Double Heads 1000BPH Beverage 0

please kindly click the play button to watch the video



Pneumatic Liquid Filling Divice Double Heads 1000BPH Beverage 1
