Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE. ISO9001
Model Number: FP-5000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set/pcs
Price: Negotiation
Packaging Details: Sea worthy package
Delivery Time: 35-40 days after deposit receipt
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 1 set / month
Get Best Price Contact Now

Detail Information

Bottle Volume: 0.1L-5L Weight: 3500Kg
Dimension: 2508*1858*1920mm Output: 800 - 1000BPH
Cavitiy: 1Cavity Preform Unscrambler: 2000*950*2480mm
Condition: New Application: PET Bottle
Automatic: Yes Blow Moulding Type: Stretch Blow Moulding
Voltage: 380V/220V 3 Phase 50HZ / 60HZ / Customized Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

Bottle Injection Machine

,

Bottle Making Machine

Product Description

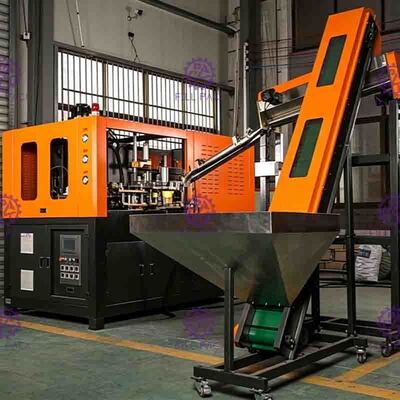

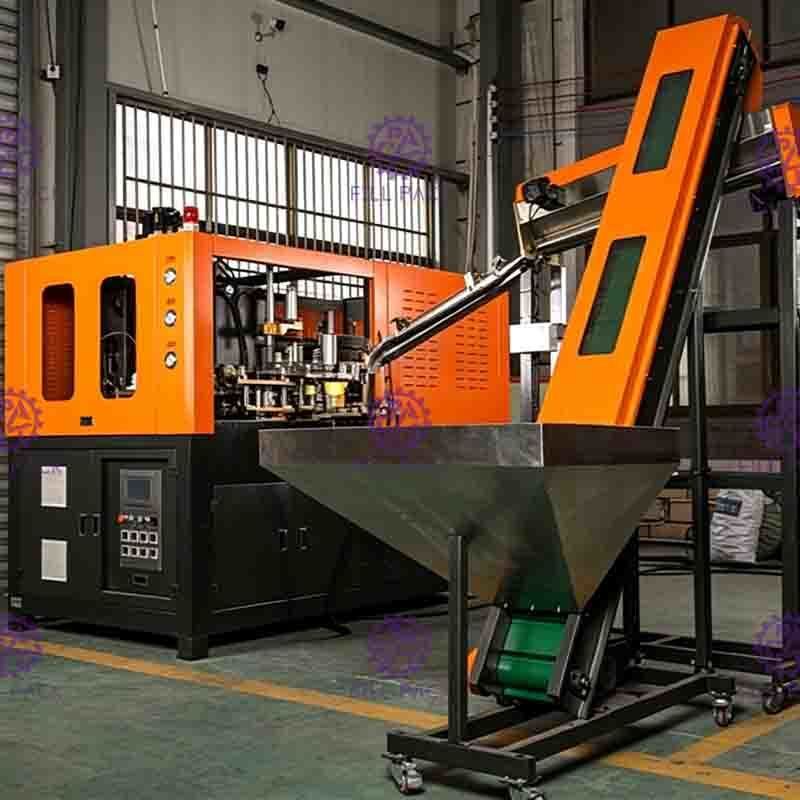

Automatic 1 Cavity PET bottle blow molding machine



>>> Product Introduction:

FP-5000 type Automatic blow molding machine is suitable for blowing PET bottles of various shapes, volume from 100 ml to 5000 ml, wide application for blowing mineral water bottles, soda bottles, cola bottles.etc



>>> Product Features:

1, Adopts advanced microcomputer control system, stable performance, the conveyor automatically send embryo;

2, Use infrared heating lamps, penetrating power strong, embryo heated while rotation, orbital revolution, heating uniformity, rapid and reliable;

3, Light tube in heating area, reflector width and height can be adjusted to suit the different structure preform heating, and automatic exhaust temperature device in order to ensure constant temperature of the drying tunnel;

4, Each machine has a safety self-locking device, when a processes have problem, the program will automatically switch to a safe state;

5, All the action drive by the cylinder, do not use pumps, with no pollution, low noise;

6, Gas way design divide action and air blowing into three parts, action to meet the needs of the different pressure of the blowing, action;

7, Cooling system to achieve the desired cooling effect; H- the bottle scrap rate less than 0.2%.

Pure Drink / Drinking / Drinkable Water Bottle Blow Making Machine / Equipment / Line / Plant / System 0
>>> Flow and Auxiliary machines:
HP Air Compressor → Air Tank → Air Filter → Air Dryer → Air Filter → Chiller → LP Air Compressor → Automatic Bottle Blowing Machine


>>> Technical Paramters:

Container
Theoretical output
800-1000PCS/H (5L)
Volume
0.1L-5L
Applicable bottle neck
15mm-60mm
Applicable bottle body diameter
20-200mm
Applicable bottle height
50mm-350mm
Moulding
Cavity
1Cavity
Mold effective area
350*450mm
Machine size and weight
Main machine (L×W×H)
2508*1858*1920mm
Main machine weight
3600Kg
Unscramble(LxWxH)
2000*950*2480mm/250kg
Cooling water
15L/min
Installed Capacity Power / Actual Usage Power
15kw/10kw
Items
Nme of machine
Model
Size
Qty
1.1
HP Air storage Tank
0.6 m3/ min 30Kg
1200*1200*1650
1 set
1.2
HP Air Compressor
1.2 m3/ min 30Kg
1880×850×1050
1set
1.3
HP air filter
3.0 m3/min 30Kg
750*350*350
2sets
1.4
Blow mold
5000ml
/
1set
1.5
HP Air dryer
2.0 m3/min 30Kg
1100x650x1100
1set
1.6
LP Air Compressor
2.0 m3/min 10Kg
1780*840*1455
1set
1.7
LP Air Filters
2.0 m3/min 10Kg
750*350*350
2sets
1.8
Mould Chiller
5HP
850*560*870
1set
1.9
Connecting pipes
2.0 m3/min 30Kg
/
1suit

Pure Drink / Drinking / Drinkable Water Bottle Blow Making Machine / Equipment / Line / Plant / System 1

Pure Drink / Drinking / Drinkable Water Bottle Blow Making Machine / Equipment / Line / Plant / System 2
