Pure Drink / Drinking / Drinkable Water Bottle Blow Production / Producing Machine / Equipment / Line / Plant / System
Product Details:
| Place of Origin: | China,JiangSu,Zhangjiagang |
| Brand Name: | FillPack |
| Certification: | CE. ISO9001 |
| Model Number: | FP-1200R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set/pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Sea worthy package |
| Delivery Time: | 35-40 days after deposit receipt |
| Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram |
| Supply Ability: | 1 set / month |
|
Detail Information |
|||
| Bottle Volume: | 0.1L-5L | Weight: | 13000kg |
|---|---|---|---|
| Main Machine: | 1650*650*1600mm | Output: | 600-800BPH |
| Cavitiy: | 2 Cavities | Heater: | 1800*700*1600mm |
| Application: | PET Bottle | Automatic: | No, Semi-auto |
| Blow Moulding Type: | Stretch Blow Moulding | Voltage: | 380V/220V 3 Phase 50HZ / 60HZ / Customized |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Condition: | New | ||
| High Light: | Bottle Injection Machine,Bottle Making Machine |
||
Product Description

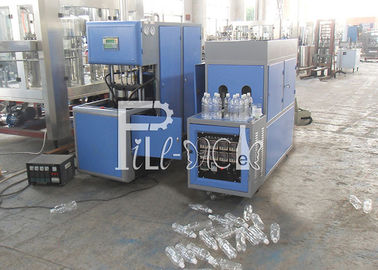

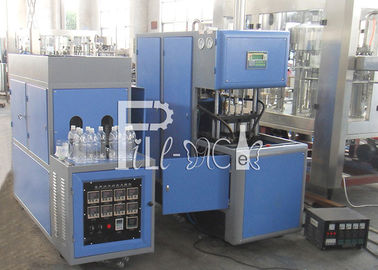

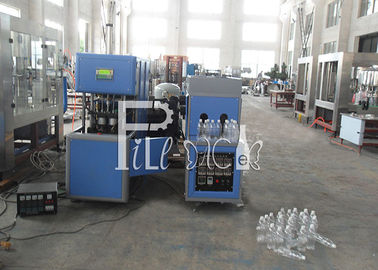

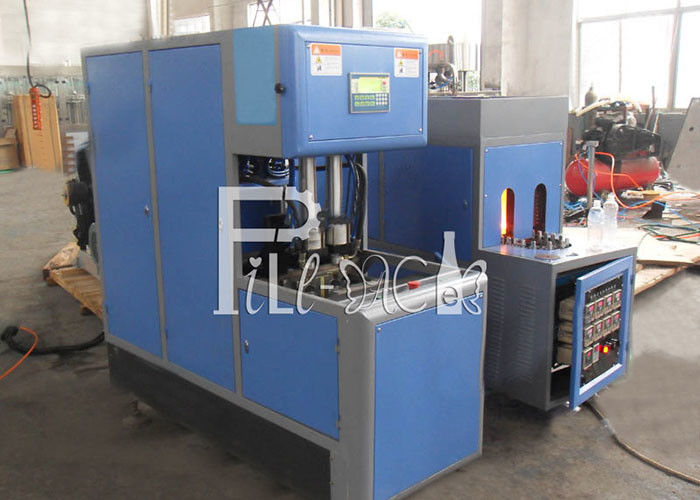

Semi auto PET heat resistant bottle blow molding machine
>>> Product Introduction:
1200R heat-resistant bottle blow molding machine is suitable for producing PET plastic containers and bottles from 10-1000ml. It is especially used for hot fill bottles. Also it can be widely used to produce the carbonated bottle, mineral water pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
>>> Product Features:
●1, Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
●2, The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
●3, The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
1. Auxiliary Machine To operate this PET blowing machine, it also need some auxiliary machines. such as air compressor, air filter, air dryer, chiller and so on. we will equip the auxiliary machine according to your need.
>>> Technical Paramters:
|
Molding
|
Clamping force
|
KN
|
45KN
|
|
Mould opening stroke
|
mm
|
160mm
|
|
|
Max.mould plate Dimenstion
|
mm
|
350x380mm
|
|
|
Max.mould thickness
|
mm
|
180mm
|
|
|
Number of Cavity
|
Cavity
|
2
|
|
|
|
Container volume
|
Itr
|
0.1L-1L
|
|
Preform inner diameter
|
mm
|
φ5mm-38mm
|
|
|
Max.container diameter
|
mm
|
130
|
|
|
Max.container height
|
mm
|
350
|
|
|
Preform length
|
mm
|
15mm-350mm
|
|
|
Theoretical output
|
bph
|
600-800
|
|
|
|
Total power
|
kw
|
24.8kw
|
|
Heating power
|
kw
|
16
|
|
|
Max.herating power
|
kw
|
8
|
|
|
Items
|
Components
|
Model
|
|
1
|
Blow Moulding Machine
|
FP-1200R
|
|
2
|
HP air cooling dryer
|
2.0m3/min 30Kg
|
|
3
|
HP Air Compressor
|
1.2m3/min 30Kg
|
|
4
|
Air Filters
|
2.0m3 3Mpa
|
|
5
|
Blow Mould
|
350ml500ml750ml
|
