PET Plastic Glass 3 In 1 Monobloc Soft Drink Cola Bottling Machine / Equipment / Line / Plant / System

PET Plastic Glass 3 In 1 Monobloc Soft Drink Cola Bottling Machine / Equipment / Line / Plant / System

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE & ISO & TUV & SGS
Model Number: DCGF24-24-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 20000-50000USD
Packaging Details: Wooden Case Package
Delivery Time: 30 Working Days After Receiving Your Deposit Payment
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 20 sets/month
Get Best Price Contact Now

Detail Information

Dimension(L*W*H): 2980*2200*2250 Mm Weight: 4500KG
Power: 4.4KW Capacity: 5000-7000BPH
Cap Style: Plastic Screw Cap Voltage: 380V/220V 50HZ
High Light:

coke filling machine

,

csd filling machine

Product Description


Description of Plastic bottle carbonated drink filling line DCGF24-24-8

Assuring You of Our Best Machines
We are committed to provide you with the exceptional carbonated filling line and helping you attain your requirements.

Please feel free to contact us for more information of interest.

>>>Overview of Production Line:
The plastic bottle carbonated beverage production line consists of three parts:
Material system (distribution and carbon dioxide mixing), filling system, packaging system.
★A) Filling equipment: choose different capacity of filling machine according to actual production needs
★B) Temperature bottle spraying equipment: the low-temperature filling bottle will be heated to the set temperature through this equipment, effectively prevent the phenomenon of bottle explosion, while ensuring the stability of gas content;

>>>Design basis:
★1. Raw Water Quality Report: Required to be Provided by Users
★2. The design and manufacture of control equipment, measuring instruments and electrical equipment conform to relevant regulations and standards.

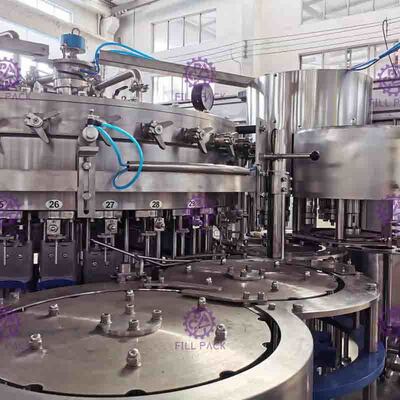

PET Plastic Glass 3 In 1 Monobloc Soft Drink Cola Bottling Machine / Equipment / Line / Plant / System 0

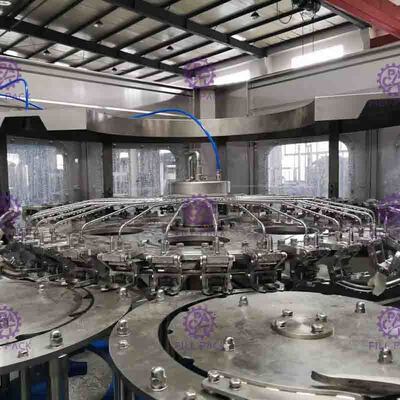

PET Plastic Glass 3 In 1 Monobloc Soft Drink Cola Bottling Machine / Equipment / Line / Plant / System 1
Optional carbonated drink making machines in the carbonated filling line
Drink carbonator
Output
Mixing precision
Purity of CO2
Dimension
Weigh
Power
QHS-1000
1T
2%
99.9%
1000*900*1900mm
500Kg
1.5Kw
QHS-3000
3T
2%
99.9%
2000*1400*2200mm
1200Kg
5.8Kw
QHS-6000
6T
2%
99.9%
2100*1500*2270mm
1350Kg
6.3Kw
QHS-9000
9T
2%
99.9%
2150*1400*2380mm
1500Kg
6.5Kw
QHS-18000
18T
2%
99.9%
2000*1750*2400mm
1950Kg
7.2Kw

Optional RO water treatment machines in the carbonated filling line
Model
Capacity(liter per hour)
RO-1000
1000LPH
RO-3000
3000LPH
RO-5000
5000LPH
RO-6000
6000LPH
RO-10000
10000LPH
Optional plastic bottle carbonated filling machine in the carbonated filling line
Model
Capacity(bottle per hour)
DCGF12-12-4
1000-2000BPH
DCGF18-18-6
3000-4000BPH
DCGF24-24-8
6000-7000BPH
DCGF32-32-10
8000-10000BPH
DCGF40-40-12
10000-12000BPH

If you need glass bottle carbonated filling line, please check them on our website or contact the sales consultant directly. Please find the contact information at contact us.


>>>The whole line including:
Water treatment system

Carbonated drink making part
★ Component:Electrical Syrup melting pot, Drink mixing tank, Drink Filter, CO2 filter, Drink carbonator, Cooling tank suit, Chilling compressor, Heat resistant pump/ beverage pump, Drink Connection pipes
★ The capacity of Syrup melting pot:300Kg/h 600Kg/h to 3000KG/h
★ The tank is with electrical heating jacketed for syrup heating and can be connected to cooling water for syrup cooling

Drink cooling tank and Drink carbonator
★ Characters of carbonator:Refined material using, precise processing.Auto running, stable facility.Convenient operation and easy adjustment.Mixing uniformity, the proportion is accurate.The structure is healthy and easy to clean.
★ The cooling tank is composed of tank part and chilling compressor device part; the tank is made of SUS304 cover and lot of SUS304 coil tubes to put into the tank. When the chilling compressor start to work, the compressor will generate chilling water, the chilling water is passing inside of the tubes, there is liquid outside the tubes and inside the tank.

Bottle washing-fiiling capping machine

Carbonated drink bottle warmer

Labeling machine

Code printer

Film shrinking packing machine
