0.6mpa Single  Head Pneumatic Paste  Liquid Filling Machine

0.6mpa Single Head Pneumatic Paste Liquid Filling Machine

Product Details:

Place of Origin: ZhangJiaGang City, JiangSu Province, China
Brand Name: FILL PACK
Model Number: 500A1

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD226-520 /unit
Packaging Details: Sea worthy package
Delivery Time: 15-20 days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 50 sets/month
Get Best Price Contact Now

Detail Information

Model: Single Head Liquid Filling Machine Voltage: AC220/110V 50/60HZ
Power: 20W Air Pressure: 0.4-0.6mpa
Filling Speed: 5-25BPM Filling Precision: ≤±1%
Material: SUS304 Filling Range Options: 3-30ml; 10-100ml; 30-300ml; 50-500ml; 100-1000ml; 500-3000ml; 1000-5000ml
High Light:

single head pneumatic filler

,

0.6mpa pneumatic liquid filling machine

,

0.6mpa pneumatic paste filling machine

Product Description

semi-auto manual one head pneumatic filling machine for liquid canned meat sauce milk



Usage:
The pneumatic filling line is used to filling food industry such as jam, meat sauce,It can be used to filling for all kinds of paste.



Principle:
The pneumatic filling line adopts pneumatic working principle, simple operation, high filling precision, is a certain concentration or certain size granular materials ideal filling equipment.
The machine is equipped with foot switch, it can stop working at any time.



Remark:
The pneumatic filling line has round and square hopper, can be customized as customer’s requirements.



hot liquid filling machine

0.6mpa Single  Head Pneumatic Paste  Liquid Filling Machine 0

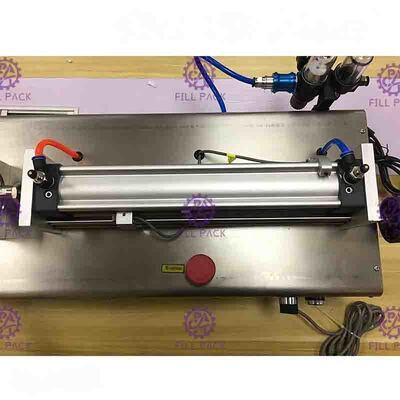

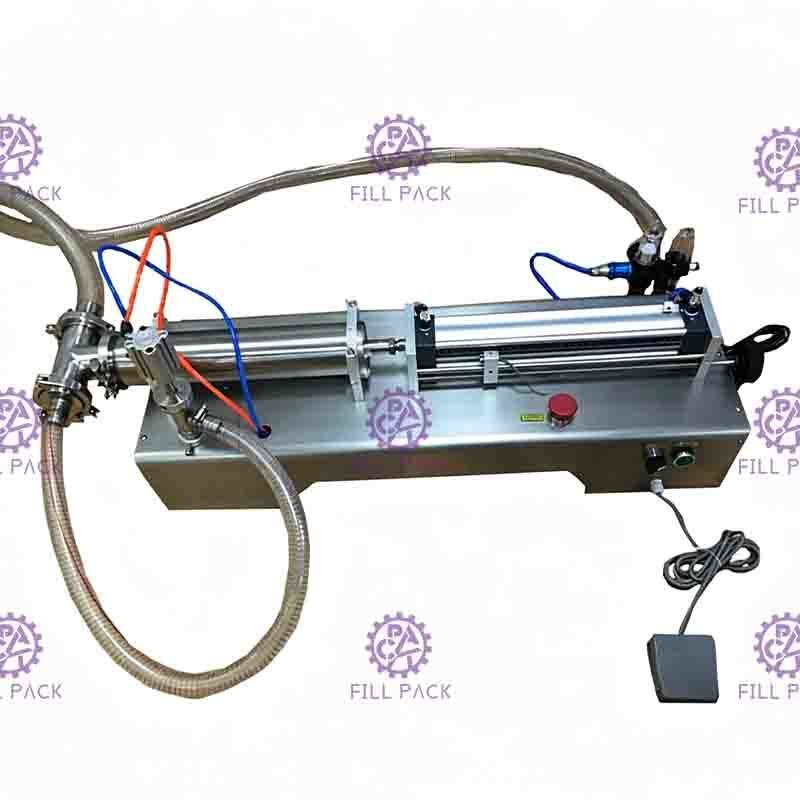

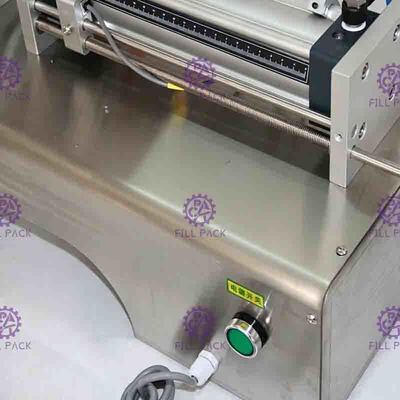

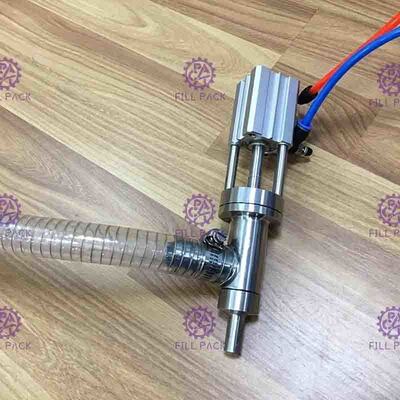

Detailed Images



QDG-2 model one head semi-auto manual pneumatic filling machine for liquid canned meat sauce milk


1. this machine is made of High quality stainless steel , therefore, it is rustless and corrosion resistant.
2. filling volume regulation hand wheel could adjust filling speed , improve the work efficiency.
3. charging hopper makes charging convenience.





Model Single head liquid filling Double heads liquid filling Single head viscosity filling Double heads viscosity filling
Voltage

AC220/110V 50/60HZ

Power 20W 50W 20W 50W
Air pressure

0.4-0.6mpa

0.4-0.6mpa

0.4-0.6mpa

0.4-0.6mpa

Filling speed

5-25BPM

10-50BPM

5-25BPM

10-50BPM

Filling precision

≤±1%

Material

SUS304

Filling range options

3-30ml; 10-100ml; 30-300ml; 50-500ml; 100-1000ml; 500-3000ml; 1000-5000ml

Air consumption

≥0.008m³/second



0.6mpa Single  Head Pneumatic Paste  Liquid Filling Machine 1

0.6mpa Single  Head Pneumatic Paste  Liquid Filling Machine 2



The features of pneumatic condense filling line,details as follows:



1.The pneumatic filling line has simple and reasonable structure, high filling precision, it is easy to operate.



2.It is the ideal equipment to filling liquid,for example, beverage,chemical and medical.



3.The pneumatic parts adopt famous brand pneumatic elements.



4.The material of the machine which contact the condenseare all made of stainless steel. It meets the GMP standard.



5.It equipped with the regulating handle, which can adjust the filling speed freely, the filling precision is high.



6.The pneumatic filling line drip-proof, avoid drawing, and equipped filling lifting device.
