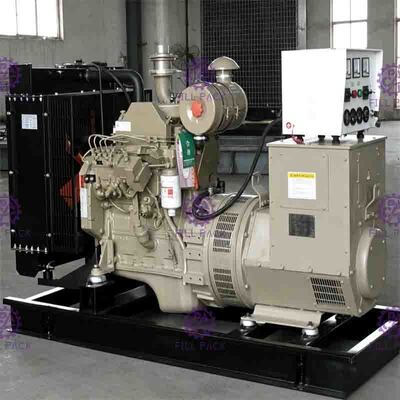

Engine Diesel 400KW Silent Type ATS Switch Diesel Generator
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FILLPACK |
| Certification: | CE / ISO9001 - 2008 |
| Model Number: | 100KW-400KW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD $8500-$27900/set |
| Packaging Details: | Sea worthy package |
| Delivery Time: | 15-20working days |
| Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram |
| Supply Ability: | 20 sets/month |
|
Detail Information |
|||
| Rated Speed: | 1500r/min | Start Method: | DC24V Electric Motor Start |
|---|---|---|---|
| Intake Method: | Turbo | Number Of Cylinders: | 6 |
| Speed Mode: | Mechanical Speed Regulation | Stop Mode: | Mechanical |
| High Light: | Silent type ATS diesel generator,400KW ATS Diesel Generator,Diesel Engine ats switch generator |
||
Product Description
Engine diesel generator 30-400KW power open / Silent type ATS self-turn-on
Description of Electric generator:
1) Generator Power Range: From 10KVA to 1500KVA as Continuous power supply or Standby power.
2) Generator Type: Open type, Soundproof type, Trailer type, Containerization type.
3) Engine: Cummins, Perkins, Deutz, Lovol, Ricardo, Volvo, Weichai Power Brand, etc.
4) Brushless Alternator: Stamford, Marathon, LEROY SOMER, etc.
5) Automatic Control Module: Deepsea, Harsen, Smartgen, etc.
6) Applies to: Mines, Buildings, Oil fields, Hospitals, Schools Hotels, etc.
| Excitation method | Brushless excitation |
| Rated speed | 1500r/min |
| Rated frequency | 50Hz |
| Rated voltage | 400V |
| Power factor | 0.8 (lagging) |
| Phase number and connection | Three-phase four-wire star connection |
| Excitation method | Brushless |
| Insulation class | H |
| Protection class | IP21 |
100-400KW parameter:
| Power | Model | Rated Current | Dimension(mm) | Weight(kg) |
| 100KW | WP4D108E200 | 144A | 2120×920×1340 | 1230 |
| 150KW | WP6D167E200 | 270A | 2500×700×1500 | 1400 |
| 200KW | WP10D238E200 | 360A | 3000×870×1600 | 2200 |
| 250KW | WP10D264E200 | 450A | 3200×1000×1700 | 2200 |
| 300KW | WP10D320E200 | 540A | 3200×1200×1800 | 2300 |
| 350KW | WP10D385E200 | 630A | 3200×1200×1800 | 2300 |
| 400KW | WP13D440E310 | 722A | 3240×1300×1800 | 3200 |
Our service:
1. Installation & adjustment
After the equipment are arrived at the customer's site, the customer is responsible for unpacking and arranging the equipment according to the placement drawing; and does under our install-adjust technicians' guidance. Costs of the staff are decided at last.
2. Training
1). We are responsible for offering the technical training to user. The training content includes the structure and maintenance of the equipment, control and operation of the equipment. Through training, users'technical staff can grasp and the skill of operation and maintenance proficiently, and deal with the general troubles in time. We will appoint qualified technical staff for the guidance.
2). The buyer can send staff to our company for learning.
3. Quality assurance
1). We guarantee the goods offered are brand-new, not used, with latest design and suitable material made, and we guarantee the specification of the equipment is consonance with the contract.
2). We guarantee the line achieve product technical performance indicators within 5 days after feeding operation through the correct guidance of the installation and commissioning.
3). We are responsible for the fault and damage of the production line caused by our design, technology, manufacture, installation, adjustment and material defect etc. that all belong to our responsibility.
4). The warranty period is 12 months after acceptance check of the production line. If there is any different between the furnished equipment in the customer's factory and the equipment concerned in the contract, the users have the right to pass the inspection book to the legal department to claim for compensation to our company within goods warranty period.
