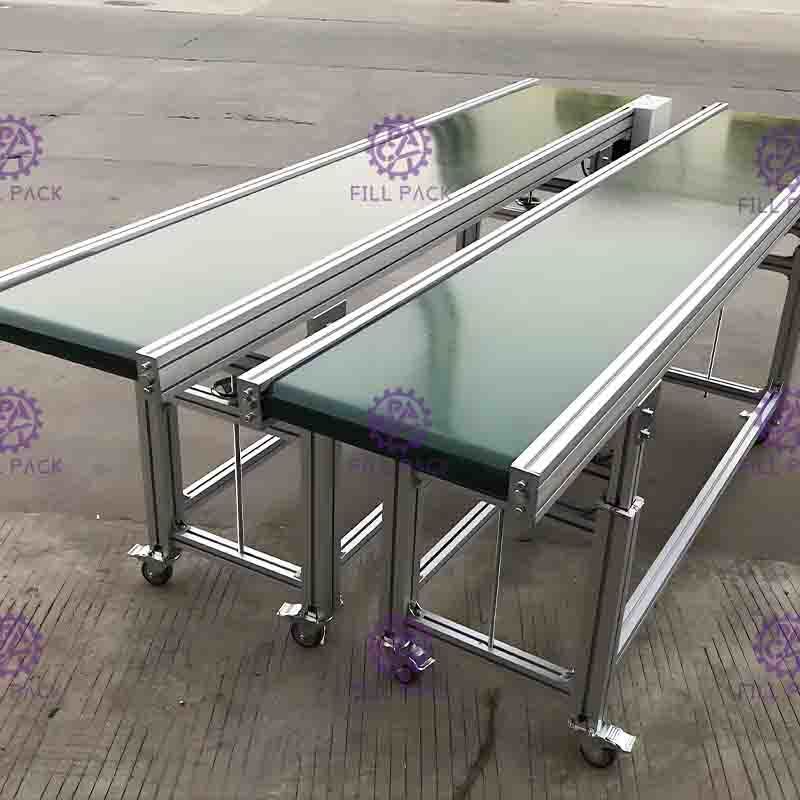

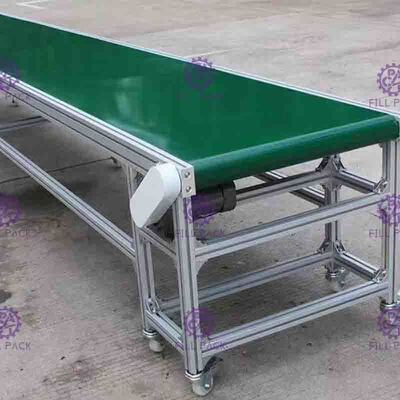

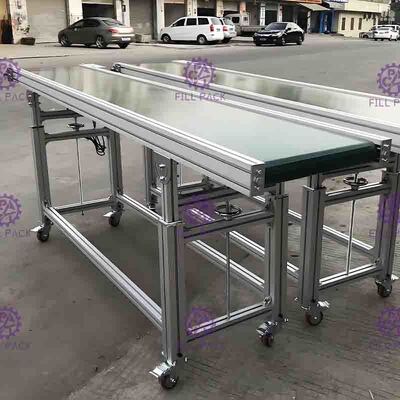

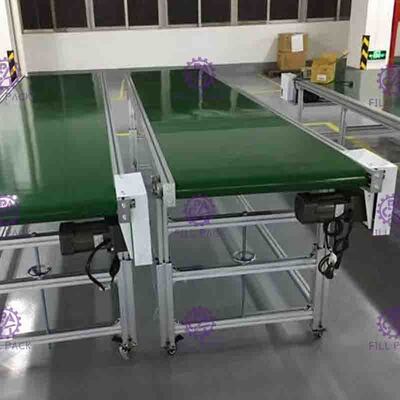

SUS201  Linear PVC Bottle Conveyor Belt Low Friction With Speed Motor

SUS201 Linear PVC Bottle Conveyor Belt Low Friction With Speed Motor

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE. ISO9001
Model Number: Chain plate

Payment & Shipping Terms:

Minimum Order Quantity: 1 set/pcs
Price: Negotiation
Packaging Details: Sea worthy package
Delivery Time: 15 days after deposit receipt
Payment Terms: TT / LC / , D/A, D/P, MoneyGram
Supply Ability: 10 sets / month
Get Best Price Contact Now

Detail Information

Motor Power: 0.37KW Type:: Belt Conveyor
Max Loading Tension: 490N Frame Material: SUS201 Or SUS304
Base Plate Material: Galvanized Material Maximum Conveying Speed: 20m/min
High Light:

PVC bottle conveyor belt

,

SUS201 bottle conveyor belt

,

Linear packaging conveyor belt

Product Description

Linear PVC Belt Conveyor with speed motor



Belt conveyor also known as belt conveyor line, belt assembly line. The continuous or intermittent movement of conveyor belt is used to transport heavy and light goods, which can not only transport various bulk materials, but also various cartons, packaging bags and other small single weight goods. It is suitable for food, electronics, chemistry, printing and other industries.



Characteristics:

Because of its smooth transportation, there is no relative movement between the material and the conveyor belt, which can avoid the damage to the conveying materials. Compared with other conveyors, the noise is smaller, and it is suitable for quiet working environment. Because of its simple structure, easy maintenance, low energy consumption and low cost, it can not only be used for the transportation of ordinary materials, but also meet the transportation of materials with special requirements such as oil resistance, corrosion resistance and anti-static. The special food grade conveyor belt can meet the requirements of food, pharmaceutical and daily chemical industries.



Chain plate Parameter :

Main frame material:

SUS201

Material of base plate:

Galvanized material

Maximum temperature of tolerance:

79℃

Maximum conveying speed:

20m/min

Max loading tension:

low friction

PVC Belt thickness:

2mm

Packaging information:

Wrapping film packaging



Motor parameter:

Power HP Volt hertz ampere EFF r/min cosφ
0.37KW 0.5 380V/220V 50HZ 1.12A/1.96A 67% 1400 0.75



Mechanical structure:

Item Material Parameter
Belt PVC 1pc
Nylon foot plate Nylon 4pc
Metal guide rail SUS201 2pc







SUS201  Linear PVC Bottle Conveyor Belt Low Friction With Speed Motor 0SUS201  Linear PVC Bottle Conveyor Belt Low Friction With Speed Motor 1

Motor and Chain                                                    Speed controller



Competitive Advantage:



1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project
