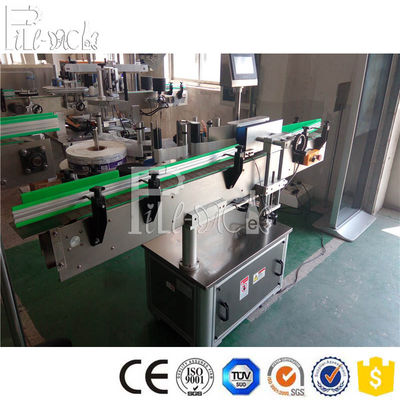

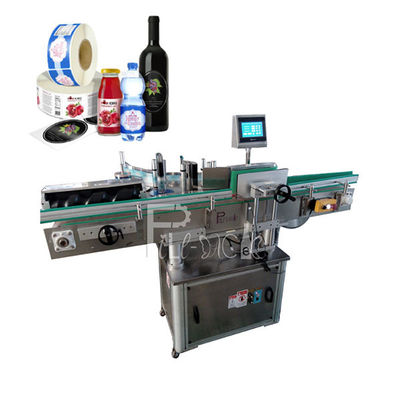

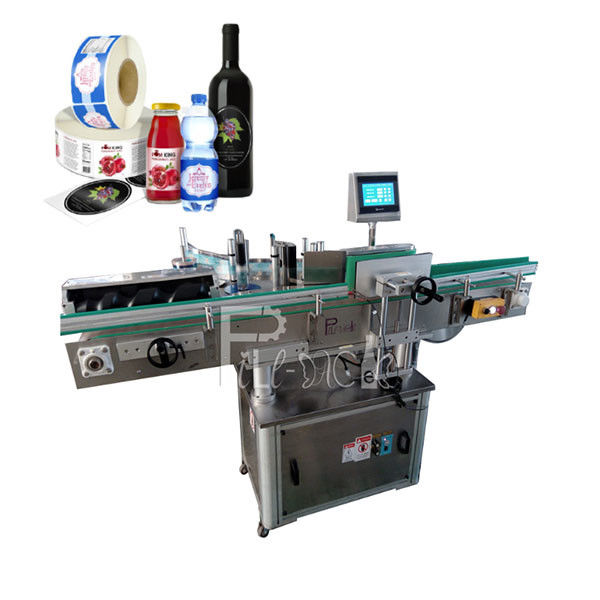

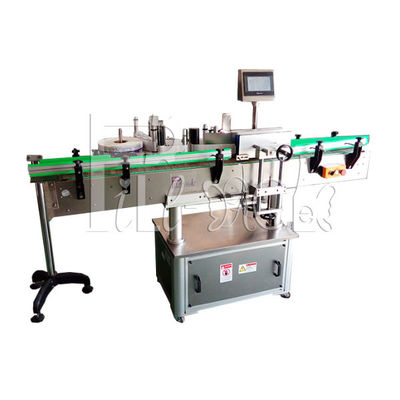

Single Side 50bpm Pet Plastic Bottle Self Adhesive Labeling Machine

Single Side 50bpm Pet Plastic Bottle Self Adhesive Labeling Machine

Product Details:

Place of Origin: Zhangjiagang, China
Brand Name: FILL PACK
Certification: CE / ISO9001 - 2008
Model Number: T-751

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD $3675/set
Packaging Details: Sea worthy package
Delivery Time: 30 Working Days After Deposit
Payment Terms: L/C, D/A, D/P, T/T, MoneyGram
Supply Ability: 15 Sets Per Months
Get Best Price Contact Now

Detail Information

Material: SUS304 Speed: 40-50bpm / 3000 Bottles Per Hour
Label: Adhesive Side: Single Side
Bottle: Round/flat Labeling Accuracy: ±1mm
High Light:

single side pet bottle labeling machine

,

50bpm plastic bottle labeling machine

,

50bpm self adhesive labeling machine

Product Description

Automatic flat/round bottle Single Side Adhesive Sticker Labeling Machine



● Basic uses:
This machine is applied for labeling round bottle or boxes, such as the single-side labeling of cosmetic round bottle or packaging boxes. It increases productivity and improves the quality of packaging.



● Applicable scope:
*Applicable label:Self-adhesive labels, adhesive film, electronic monitoring code, bar code and so on.
*Applicable product:Products required for labeling on the lateral plane or on the arc
*Application industries:Widely used in food, toys, daily chemical industry, electronics, beverages, pharmaceuticals, metals, plastics, printing and other industries
*Application examples: Labeling of flat shampoo bottle, disinfectant shampoo bottles, mineral water bottles, MP4/MP3 box and so on.



Technical Parameter
Speed 40-50bpm / 3000 bottles per hour(Associated with the product).
Dimension of applicable product Width≥20mm,length≥20mm,20≤height≤350mm.
Dimension of applicable label 15≤width≤150mm,length≥10mm
Power 1kw,220V,1Ph,50-60Hz
Overall size 2000*1300*1600mm
Weight 195kg
Labeling accuracy ±1mm (Do not contain the tolerance of product and label itself).



●Functional characteristics:

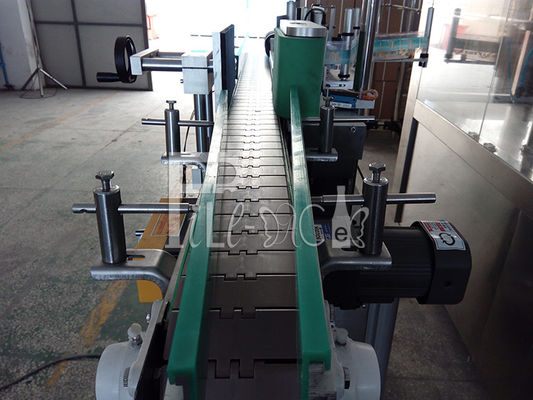

*Configure automatic bottle separating device, sparing the distance automatically before bottle guiding, guarantee the stability of the bottle guiding, transmission and labeling.
*No bottle no labeling, automatic correction for no tag and automatic test function for label, and avoid waste of labels and labeling missing.
*Strong and healthy, made of stainless steel and high quality alloy, meet the standard with GMP production specifications, reasonable structure, elegant
*Have the function of fault alarm, production counting, power saving, advise for setting parameter ,protection on wrong protection setting, easy production management.
*Optional features and components: ① hot printing/ink jet printing capability ② automatic feeding function ③automatic winding function (combined with products considered) ④ increased labeling device ⑤ other features (according to customer's requirements).



●Operation manual:
*Core work principle: When sensor detects the products through, it returns the signal to the label control systems, then control system controls control motor to send out the labels and affixed on the product in the right position. Products flow through the label pressing device, label is covered on the products, then completes the labeling action.
*Operation procedure: Put the product (on line)-> product delivery (device achieves automatically)-> labeling (device achieves automatically)-> collection of labeling products.



Electrical Components:

No

NAME

QTY.

Brand

Origin

1 Touch screen 1 Inovance China
2 Programmable Controller 1 Siemens German
3 Stepper motor 1 FOYO Taiwan
4 Stepper drive 1 FOYO Taiwan
5 Frequency converter 2 Delta Taiwan
6 Marking sensor 2 SICK German
7 Bottle measuring sensor 1 Panasonic Japan
8 Conveying motor 1 Suynle China
9 AC motor 2 TDG Taiwan
10 breaker 1 Schneider France
11 Switching power supply 1 Schneider France
12 Relay 5 Schneider France
13 Emergency stop switch 1 Schneider France
14 Indicator light 2 Schneider France
15 Bottle division motor 1 Delta Taiwan
16 Bottle division motor 1 TQG Taiwan
Optional Coding motor 1 / /





Single Side 50bpm Pet Plastic Bottle Self Adhesive Labeling Machine 0

Single Side 50bpm Pet Plastic Bottle Self Adhesive Labeling Machine 1

Single Side 50bpm Pet Plastic Bottle Self Adhesive Labeling Machine 2
