500ml Full Closed Water Sachet Filling Machine Quick Open With Uv Sterilizer
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FILL PACK |
| Certification: | CE / ISO9001 - 2008 |
| Model Number: | 500A1 line |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD $4820/set |
| Packaging Details: | Sea worthy package |
| Delivery Time: | 15-20days after deposit receipt |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram |
| Supply Ability: | 50 sets/month |
|
Detail Information |
|||
| Raw Water Ta1000Lnk: | 1000L | RO System: | 1000L |
|---|---|---|---|
| Pure Water Tank: | 500L | Material: | SUS304 |
| Sterilizer: | UV | Power: | 1.6KW |
| High Light: | full closed water sachet filling machine,quick open water sachet filling machine,500ml automatic water bottling machine |
||
Product Description

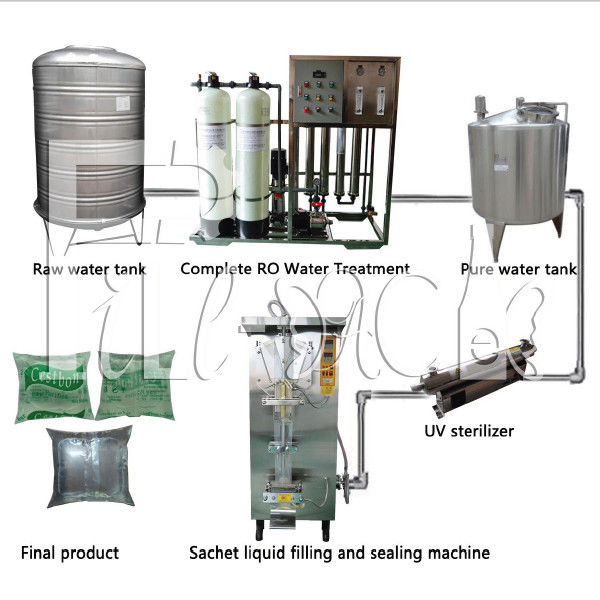

Sachet / pouch / plastic bag filling machine / equipment / system / plant / line
Monoblock RO system with two filters manual operation valves
First stage pretreatment.(Sand filter)
The use of multi-medium quartz sand filters, main purpose is to remove the water contains sediment, manganese, rust, colloid material, mechanical impurities, suspended solids and other particles in the above 20UM of substances hazardous to health.
Second stage pretreatment (Carbon filter)
Activated carbon filters used to remove the pigment in the water, smell, a large number of chemical and biological organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants.
Third stage pretreatment (Sodium ion exchanger)
Soldium ion exchanger uesd for water softening, primarily to remove hardness of water. So as to effectively prevent the reverse osmosis membrane fouling. System can automatically recoil,
Fourth stage pretreatment (Precision filter)
Particle size in water to remove fine particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree.

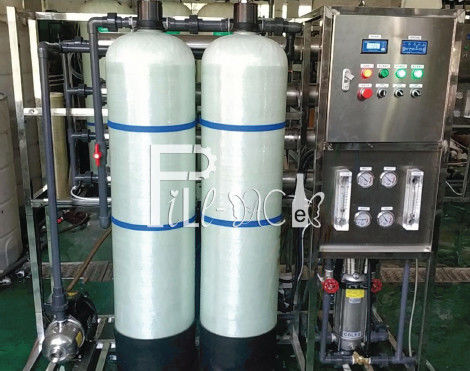

RO system
The core equipment of water pump is imported and the membrane film is imported from Hydranautics in America. It is equipped with full set of clean unit. It has the features of simple structure, convenient operation and high technological level.

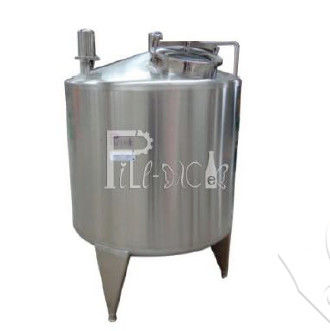

Aseptic water storage tank
Material: SUS304
Construction: full closed, cylinder body, cone top, cone bottom
Including:
1, quick open manhole,
2, anti foaming liquid inlet,
3, CIP cleaning head,
4, dust proof respirator,
5, plastic lever gauge
6, sampling valve
7, anti rotational flow outlet
8, stand
9, glass lever gauge
10, height adjustable stand

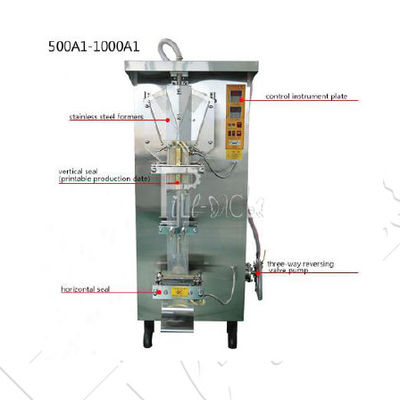

General:
1, Application: all kinds of liquid without gas, especially soy, wine, vinegar, juice, fruit pulp, soybean milk, peanut oil, vegetable oil, plant oil, mineral water, and liquid chemical products.
2, Sealing style: back sealing
3, Function: film sterilization,auto complete Bag-making, filling, sealing, printing, cutting and counting
4, Whole machine with stainless steel covering, With foot wheels for easy transportation;
| Model | 500A1 |
| Bag length (mm) | 50-150 |
| Bag width (mm) | 40-150 |
| Packaging film width (mm) | 100-320 |
| Package volume (ml) | 0-500 |
| Packing speed (bags/h) | 2000-2200 |
| Power (kw) | 1.6 |
| External dimensions (mm) | 880*760*1800 |
| Weight (kg) | 275 |
