SUS304 Juice Milk / Can Filling Line With Negative Pressure

SUS304 Juice Milk / Can Filling Line With Negative Pressure

    • SUS304 Juice Milk / Can Filling Line With Negative Pressure
    • SUS304 Juice Milk / Can Filling Line With Negative Pressure
    • SUS304 Juice Milk / Can Filling Line With Negative Pressure
    • SUS304 Juice Milk / Can Filling Line With Negative Pressure
  • SUS304 Juice Milk / Can Filling Line With Negative Pressure

    Product Details:

    Place of Origin: China,JiangSu,Zhangjiagang
    Brand Name: FillPack
    Certification: CE,ISO
    Model Number: GFP-12
    Application: Non carbonated drink
    Automatic grade: automatic
    Packaging Type: Tin cans
    Power: 0.75kw
    Driven typ: Electric
    Certification: CE, ISO
    Gurantee time: 1 year
    Condition: New
    Voltage: Customised

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set/pcs
    Price: Negotiation
    Packaging Details: Blanket cloth or wooden case as machine need
    Delivery Time: 20-25 days
    Payment Terms: 30% T/T deposit, 70% before shipment.
    Supply Ability: 50 sets/month
    Contact Now
    Detailed Product Description

    SUS304 Juice Milk / Can Filling Line With Negative Pressure





    Quick Detail:



    1. Capacity: 2000 Cans/H

    2. For tin can juice drink

    3. Main material: SUS304

    4. Automatic





    Description:



    The automatic tin can filling line is mainly used to filling non carbonated drink, like juice, milk, wine and so on.

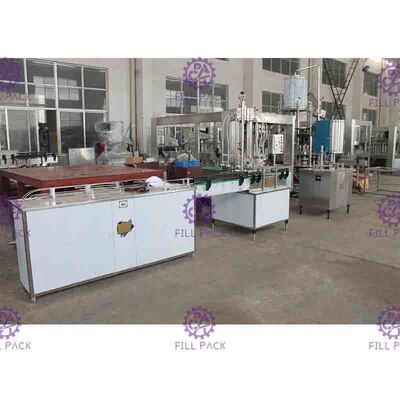

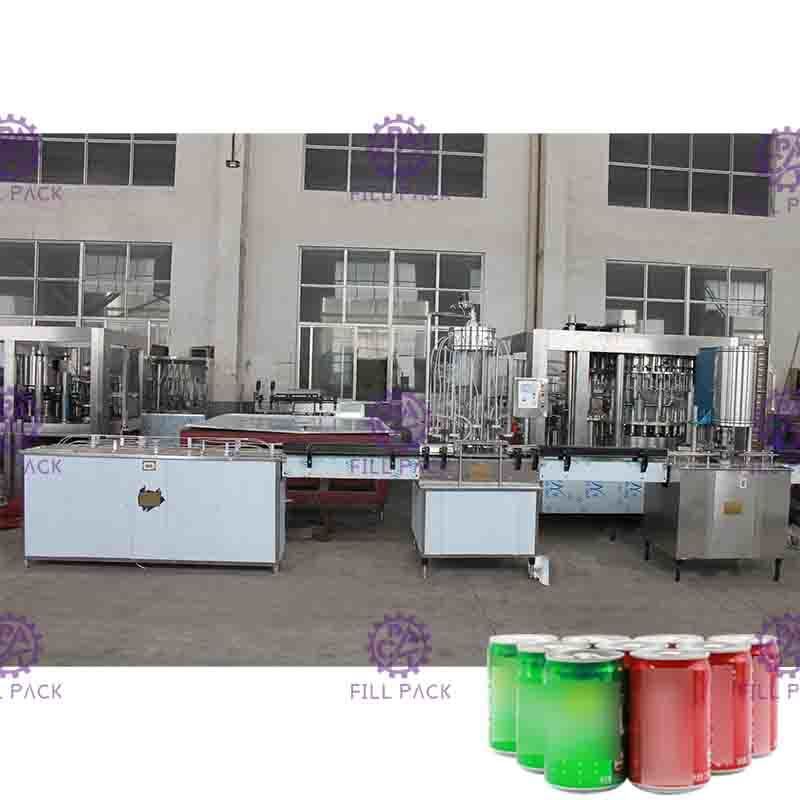

    It main contains the automatic can washer, can filler, can sealer and chain conveyor and motor, automatic with speed adjustable.

    The machine main adopts the high quality of SUS304 material, meet with GMP standard.



    Automatic can washer:

    This machine is mainly used for continuous washing for empty tin cans of similar size and shape. It is designed as requirement of filled drink in metal can. It is used to continuously washing three pieces of pop can; The machine is full automatic. It adopts the high quality of stainless steel 304 material, meets the requirements of food grade.

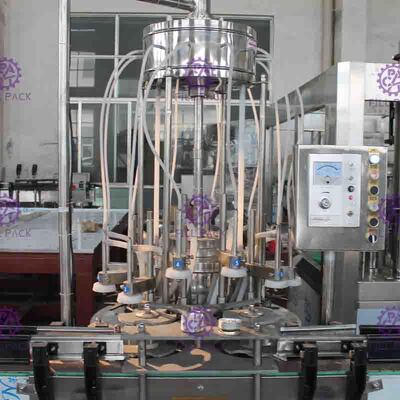

    Automatic can filler:

    This filler is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for filling non-gas containing drink in tin cans, such as water, juice, milk, tea and so on. The filling way is normal pressure. It adopts the electric magnetic speed control system and the speed can be regulated infinitively as customer requirements within the scope. It adopts the high quality of stainless steel 304 material, meets the requirements of food grade. It is full automatic and advanced in construction, steadily in performance, safe in operation, easy in maintenance, high in production efficiency. The filler is the ideal choice for drink factories of small and middle size.



    Automatic can sealer:

    The sealer is suitable for sealing various cans, such as tin can, aluminum can, PET can. It is perfect in performance, reliable in operation and easy in maintenance. The machine is full automatic and the speed can be adjustable. It adopts the high quality of stainless steel 304 material, meets the requirements of food grade. So it is widely used in automatic packing lines for various kinds of milk, juice, wine, drink, pharmacy chemicals, reagent, pesticide and so on. It is one of the most ideal automatic sealing equipment.

    It has the function that when with the can, the cover will fall off, without the can, the cover will not fall off. Also it is set with the automatic machine stop device for the faults of with can without the cover, without the can and cover, can stuck in feeding and coming out.





    Applications:



    1. The machine is mainly used to washer the cans, fill the non carbonated drink like juice, milk, wine and so on to tin cans, then seal the cans for market selling.

    2. This can filling line is suitable same can diameter but different can height.

    With different can diameter, the filling line should be set with extra can change parts to share one filling line.





    Specifications:



    Model GFP-12
    Capacity 1000-2000 Cans/H
    Filling way Negative pressure
    Material SUS304
    Filling heads 12 heads
    Can neck 40-120mm
    Can height 60mm-180mm
    Motor power 1.5KW
    Dimension L1200*W1100*H1800mm
    Weight 450kg





























    SUS304 Juice Milk / Can Filling Line With Negative Pressure

    please kindly click the play button to watch the video
