5.5Kw Electric 2 in 1 Can Filling Line Carbonated Drink Can Washing Machine

5.5Kw Electric 2 in 1 Can Filling Line Carbonated Drink Can Washing Machine

    • 5.5Kw Electric 2 in 1 Can Filling Line Carbonated Drink Can Washing Machine
    • 5.5Kw Electric 2 in 1 Can Filling Line Carbonated Drink Can Washing Machine
    • 5.5Kw Electric 2 in 1 Can Filling Line Carbonated Drink Can Washing Machine
    • 5.5Kw Electric 2 in 1 Can Filling Line Carbonated Drink Can Washing Machine
  • 5.5Kw Electric 2 in 1 Can Filling Line Carbonated Drink Can Washing Machine

    Product Details:

    Place of Origin: China,JiangSu,Zhangjiagang
    Brand Name: FillPack
    Certification: CE,ISO
    Model Number: YDGF18-4
    Application: Carbonated drink
    Automatic grade: automatic
    Packaging Type: Aluminum cans
    Power: 5.5kw
    Driven type: Electric
    Certification: CE, ISO
    Gurantee time: 1 year
    Condition: New
    Voltage: Customised

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set/pcs
    Price: Negotiation
    Packaging Details: Blanket cloth or wooden case as machine need
    Delivery Time: 25 days
    Payment Terms: 30% T/T deposit, 70% before shipment
    Supply Ability: 20 sets/month
    Contact Now
    Detailed Product Description



    5.5Kw Electric 2 in 1 Can Filling Line Carbonated Drink Can Washing Machine





    Quick Detail:



    1. Capacity: 5000 Cans/H

    2. For carbonated drink

    3. Main material: SUS304

    4. Automatic with filler sealer 2 in 1





    Description:

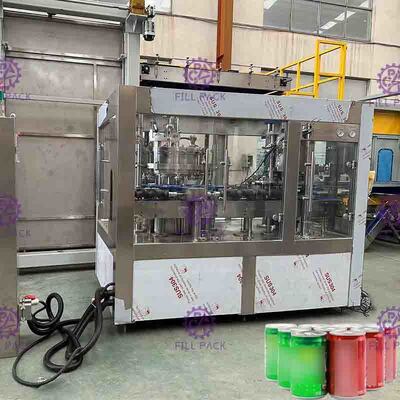

    1. The automatic carbonated drink can filling line is mainly used to filling carbonated drink in aluminum can or PET can.

    It main contains the automatic can washer, 2 in 1 can filler and sealer machine, automatic for operation.

    The machine main adopts the high quality of SUS304 material, meet with GMP standard.



    2. Automatic can washer:

    This can washer revolution inclined type can washer;

    One end of the rinsing box is entrance of the cans, usually it need to work together with unpiler, if the client do not have unpiler, he will need to set up one high flat roof for manual loading of cans;



    After the cans loading, they will be reversed 90 degree and pass the box quickly with gravity when can mouth face to ground. The rinsing box is inside set with shower to spray water inside the cans to wash. There is a water pump to suck water for rinsing use. After washing, the cans will be reversed again 90 degree to be loaded on conveyor connected to can filling-seaming machine.



    The rinsing box is set with a water discharge hole which can discharge the dirty water to your container.

    And the rinsing box is with checking window to check if any problem happen inside. And the roof of the rinsing box is removable for repair and cleaning, easy to use and good effect.

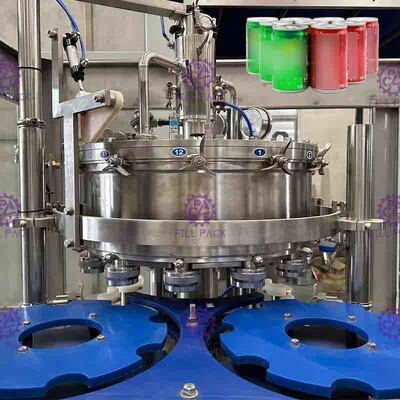

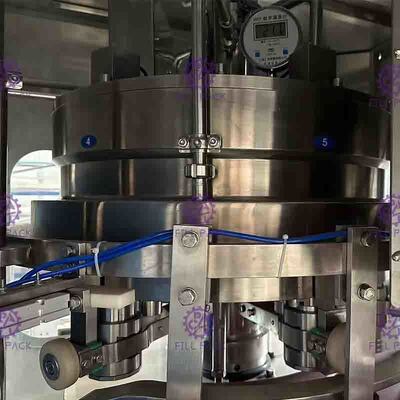

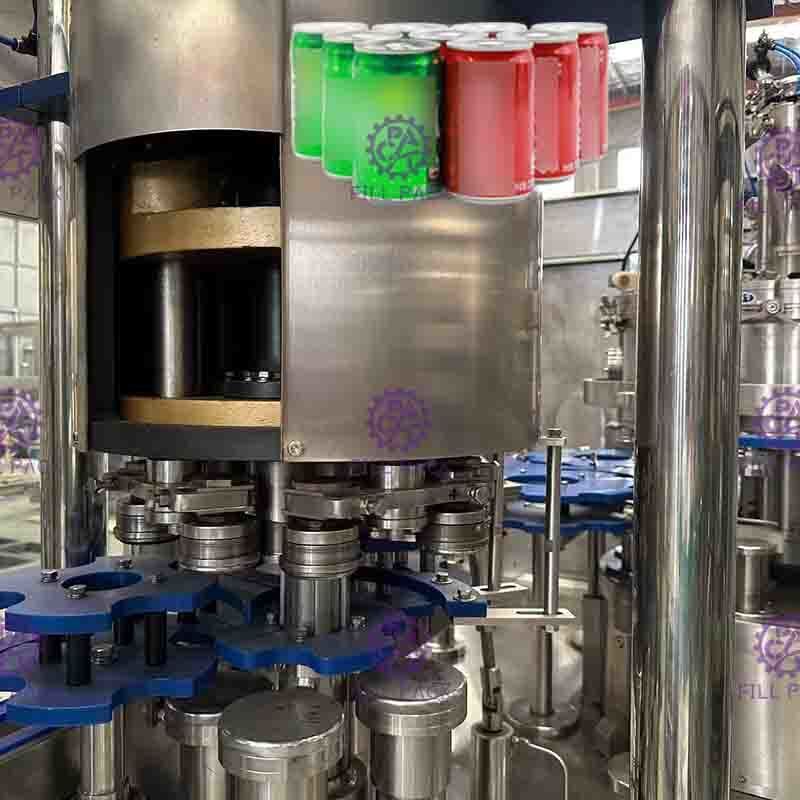

    3. Automatic can filler and sealer:

    The can filler and sealer machine is used in production of carbonated drink of beer, soft water, coca cola in aluminum can or PET can. Filling and seaming parts are integrated in one machine.

    The machine is suitable for different can volume, with same can diameter different can height, no can change parts.

    The most advanced technology is employed in the design. The gravity fixed liquid level filling is used. The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.

    The whole machine is controlled by PLC with touch-screen as the human-machine interface, operation automatically, the speed is adjustable. The amount of the drinks in the storage tank can be controlled automatically. The filling and seaming will be stopped automatically when there is no can. When cans are cramped wrongly or when cans are not available, the machine can be stopped automatically.

    The frequency changing technology is used to adjust the operation speed sleeplessly. The production capacity can be displayed digitally and can be adjusted conveniently.





    Applications:



    1. The machine is mainly used to washer the cans, fill the carbonated drink in aluminum can or PET can, then seal the cans for product market selling, it’s widely used in beverage production plant.

    It main contains

    2. the automatic can washer, 2 in 1 can filler and sealer machine, automatic for operation.





    Specifications:



    Model YDGF18-4
    Capacity 5000 cans / hour(330ml)
    Filling head 18
    Seaming head 4
    Filling pressure Balanced pressure
    Filling valve Balanced pressure filling valve
    Material SUS304
    Can type Aluminum can or PET can
    Can size Different volume
    Conveyor Include 2m can feeding conveyor and 4m can outlet conveyor
    Filling precision <+5MM
    Air pressure 0.5Mpa
    Air consumption 0.5 m3/min
    Power 5.5 kw
    Dimension(L*W*H) 2000*1800*1900 mm











































    For more details, please feel free to contact me.





    Competitive Advantage:



    1. Our machine is with good quality and price, we can make the machine customized for you if need.

    2. Our company has been established more than 15 years, we are a professional manufacturer in every kind of beverage production machine.

    3. We have the certifications of ISO, CE and so on.

    4. Our company machines are exported to many countries abroad every year.

    5. We can offer free technician support and consultation to help you to order a new equipment and start a new company.

    6. We can offer one year guarantee for the machine you ordered freely, forever technology supports in our machine and related machine.

    7. W can send our technician to your country for machine commissioning and instruction conveniently.

    8. Your inquiry will be replied within 24 hours, you are welcome to contact me in your convenience, please feel free to contact me if any question you have.
