High Speed Bottle Sorting Machine For Carbonated Soft Drink Processing Line

High Speed Bottle Sorting Machine For Carbonated Soft Drink Processing Line

    • High Speed Bottle Sorting Machine For Carbonated Soft Drink Processing Line
    • High Speed Bottle Sorting Machine For Carbonated Soft Drink Processing Line
    • High Speed Bottle Sorting Machine For Carbonated Soft Drink Processing Line
    • High Speed Bottle Sorting Machine For Carbonated Soft Drink Processing Line
  • High Speed Bottle Sorting Machine For Carbonated Soft Drink Processing Line

    Product Details:

    Place of Origin: China,JiangSu,Zhangjiagang
    Brand Name: FillPack
    Certification: CE. ISO9001
    Model Number: LP-18

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set/pcs
    Price: Negotiation
    Packaging Details: Sea worthy package
    Delivery Time: 35-40 days after deposit receipt
    Payment Terms: TT / LC / Western union
    Supply Ability: 1 set / month
    Contact Now
    Detailed Product Description



    High Speed Bottle Sorting Machine For Carbonated Soft Drink Processing Line





    Quick Detail:



    1, Capacity: 15000BPH

    2, Automation: TOTALLY automatic

    3, Material: SUS304

    4, Bottle type: Plastic bottles

    5, PLC control





    Description:



    1, The automatic bottle sorting machine is frequency control;

    2,The automatic bottle sorting machine is using twice bottle pressing and bottle sorting construction;

    3,There is mould changing window in the middle of framecase ,it is or mould change and jam clearance if any ;

    4, There is bottle jam monitor on bottle-out planet wheel, it will protect machine;

    9, There is bottle monitor on top of umbrella shape tower, it will control the start and stop of bottle elevator;

    10, Coversed bottle will be eliminated from bottle-out planet wheel from he opposite position of air conveyor ;





    Applications



    The automatic bottle sorting machine is used to arrange disordered plastic bottle to production line. It can connect to different production line including mineral water line, food production line, dairy production line, medical production line and chemical production line and etc.





    Working principle and diagram:

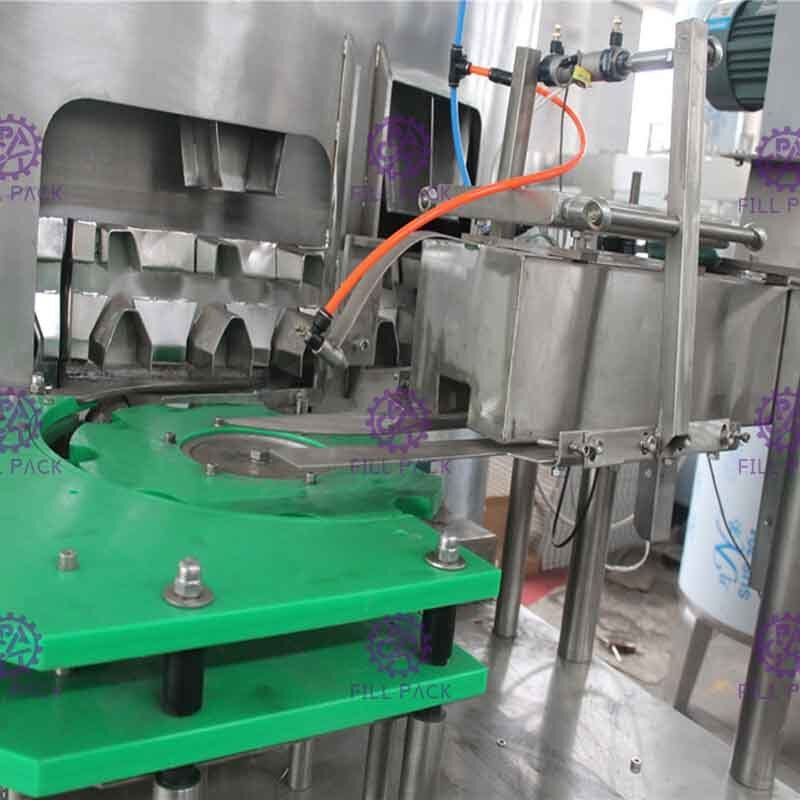

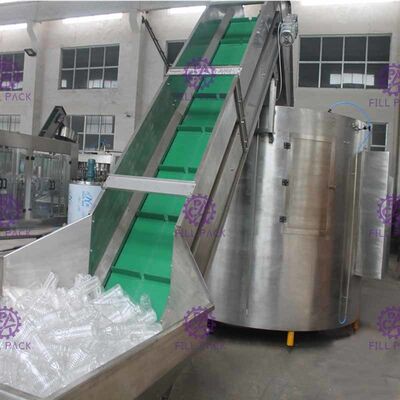

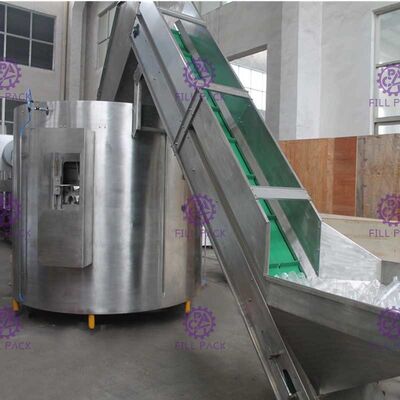

    When the bottle elevator is started, the disordered bottles will be transferred on top of umbrella shape tower ,and then fall into bottle ascending devices .The bottle ascending devices will push bottles into bottle dropping grooves under the action of cam . Then the ordered bottles will be sent out through planet wheel into air conveyor. Planet wheel is connected with motor main axis by synchronous belt.





    Specifications:



    Working position 18
    Capacity 12000-15000BPH (500ml)
    Air pressure 0.7Mpa
    Air consumption 2M3/min
    Applicable bottle diameter 50-96mm
    Applicable bottle height 160-300mm
    Main motor 2.2kw
    Lifting motor 0.75kw
    Blow motor 2.2kw
    Dimension (Cylinder part) 2700*2400mm
    Dimension (Lifte part) 800*800*4500mm
    Weight 4500kg





    Electric components



    Name Brand
    PLC / transducer / touch screen OMRON
    Contactor / air switch / stabilized voltage supply Schneider
    Photoelectricity / Proximity switch Autonics
    Cylinder Airtack





    Competitive Advantage:



    1. One year warranty for the whole system

    2. Free equipment installation and debugging

    3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

    4. Every 3 years, we can help to overhaul the machine free (Labor)

    5. We can provide internship service and help you train the operator and mechanic

    6. Free production technology and process configuration

    7. We can help you to design the production line, workshop and provide turn-key project





    Package & Shipment



    High Speed Bottle Sorting Machine For Carbonated Soft Drink Processing Line



    High Speed Bottle Sorting Machine For Carbonated Soft Drink Processing Line

    please kindly click the play button to watch the video
