Beverage Carbonated Water Blow Mold Machine Multi Cavity Mould

Beverage Carbonated Water Blow Mold Machine Multi Cavity Mould

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE. ISO9001
Model Number: DY-6
Condition: New
Application: PET bottle
Automatic: Yes
Blow moulding type: Stretch blow moulding
Voltage: 380V 3 phase 50HZ / 60HZ / Customized
Warranty: 1 year
After-sales service provided: Engineers available to service machinery overseas

Payment & Shipping Terms:

Minimum Order Quantity: 1 set/pcs
Price: Negotiation
Packaging Details: Sea worthy package
Delivery Time: 35-40 days after deposit receipt
Payment Terms: TT / LC /
Supply Ability: 1 set / month
Get Best Price Contact Now

Detail Information

High Light:

Bottle Injection Machine

,

Blow Mold Machine

Product Description

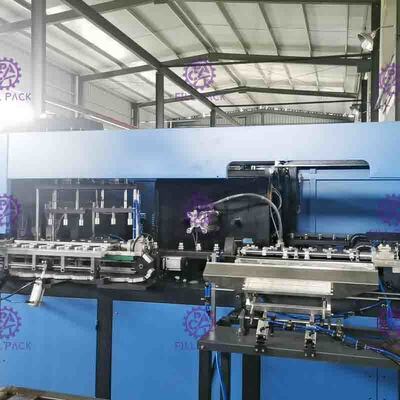

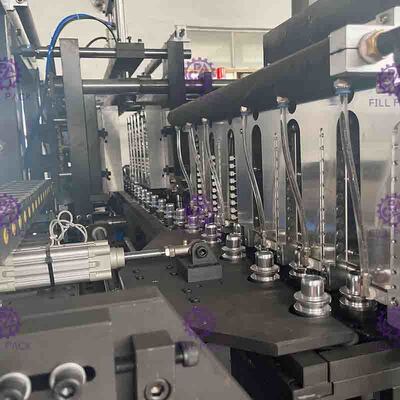

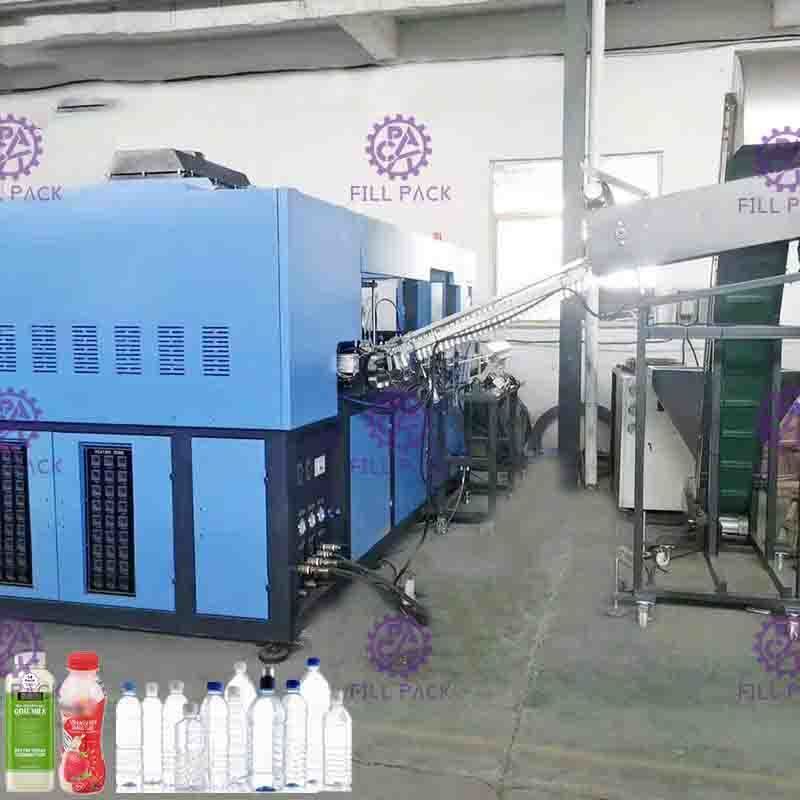

Beverage Carbonated Water Blow Mold Machine Multi Cavity Mould





Quick Detail:



1, Capacities: 6000BPH

2, Automation: TOTALLY automatic

3, Bottle type: PET bottles

4, Auxiliary machine needed: YES

5, Can be connected to various production lines





Description:



Automatic bottle blower can be used to blow PET bottles from 100ml to 2L automatically including mineral bottles, edible oil bottles, carbonated water bottles, and juice bottles and etc. Also this automatic blower can connect to production line via air conveyor.



The shape of the PET bottles can be various according to client. We can help to sculpt the bottles and confirm with client before making bottle moulds.





Applications and features:



1, Widely applied in food, beverage, dairy, cosmetic, medical, chemical industrial and etc;

2, Develop different bottles to develop and explore more market;

3, Compact structure for the preform heating, blowing, and bottle forming are realized in one machine;

4, Different volume of bottles (100ml-1.5L) can be blowed in one machine by changing different bottle moulds;

5, All movements of blower are driven by the air cylinder, no need the hydraulic oil and even no pollution.

6, Auxiliary machines are needed during blowing including LP (Low pressure) air compressor, HP (High pressure) air compressor, air dryer, air filters, air tank, and mould chiller.





Specifications:



Main parameter:
Model DY-6
Productivity Depend on bottle design

5000-5500PCS/H

1500ml carbonated

Product type Body diameter 20mm-100mm
Height 50mm-350mm
Neck diameter 15mm-38mm
Mold Cavity 6cavities
Mold thick 200mm
Mold 800*800mm
Main machine power Electrical source power 380v 3Phase /220v 3Phase 50/60HZ
Rated Power 40kw
Really use power 20kw
Cooling water Cooling water 20L/min
Size L*W*H 2808*1958*1920mm
Weight 4500kg
Auxiliary equipment(preform unscrambler) L*W*H 2000*950*2480mm
Weight 250kg
Resin available   PET




Components



Item Part Brand Origin
1 Pneumatic components AIRTAC Taiwan
2 Turning cylinder FESTO German
3 High pressure air blowing valve PARK USA
4 Low pressure operation valve PMC Korea
5 PLC Delta Taiwan
6 Touch screen Delta Taiwan
7 High pressure muffler SMC Japan
8 Oily water separator AIRTAC Taiwan
9 Photoelectric switch AUTONICS Korea
10 Switching power WM Taiwan
11 Air switch TAIAN Taiwan
12 Relay IDEC Japan
13 Finger cylinder MINDMAN Taiwan
Note All of the electrical components adopts CE,UL,CCC approved international advanced high-tech product.





Competitive Advantage:



- Stable performance with advanced PLC.

- Automatic preform conveyer to save human cost.

- Two ways of operating: automatic mode and manual mode.

- Safe,reliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.

- Low cost,high efficiency,easy operation and maintenance etc, profited from the fully automatic technological process.

- Ideal cooling system make the finished bottles without any flaws.

- Easy for you to install, test and start up.
