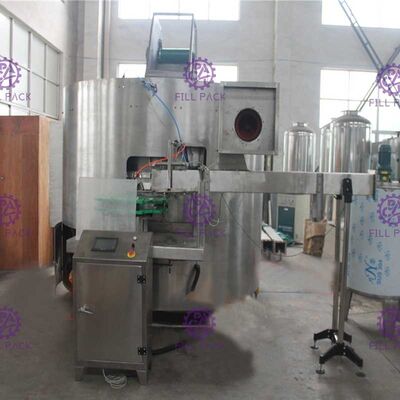

Plastic Soda Water Bottle Sorting Machine / Bottle Arranging Machine For Beverage Plant

Plastic Soda Water Bottle Sorting Machine / Bottle Arranging Machine For Beverage Plant

    • Plastic Soda Water Bottle Sorting Machine / Bottle Arranging Machine For Beverage Plant
    • Plastic Soda Water Bottle Sorting Machine / Bottle Arranging Machine For Beverage Plant
    • Plastic Soda Water Bottle Sorting Machine / Bottle Arranging Machine For Beverage Plant
    • Plastic Soda Water Bottle Sorting Machine / Bottle Arranging Machine For Beverage Plant
  • Plastic Soda Water Bottle Sorting Machine / Bottle Arranging Machine For Beverage Plant

    Product Details:

    Place of Origin: China,JiangSu,Zhangjiagang
    Brand Name: FillPack
    Certification: CE. ISO9001
    Model Number: LP

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set/pcs
    Price: Negotiation
    Packaging Details: Sea worthy package
    Delivery Time: 35-40 days after deposit receipt
    Payment Terms: TT / LC / Western union
    Supply Ability: 1 set / month
    Contact Now
    Detailed Product Description



    Plastic Soda Water Bottle Sorting Machine / Bottle Arranging Machine For Beverage Plant





    Quick Detail:



    1, Capacity: up to 20000BPH

    2, Automation: Automatically PLC control

    3, Material: SUS304

    4, Bottle type: Plastic bottles from 500ml - 2L

    5, Operation mode: Automatic mode & manual mode





    Description:



    LP series bottle sorting machine is used to feed the bottles into filling machine through air conveyor. Manually put bottles into the hopper, and then the bottle sorting machine will arrange the bottle and output one by one without crash.



    The bottle sorting machine can be connected to the prodution line directly such as beverage filling machine. The capacity is from 4000BPH to 30000BPH. The speed is controlled by PLC. All the electric control and pneumatic components are world famous brand such as SMC / Festo, Mitsubihsi, Omron, Panasonic and etc.





    Characteristics



    - Torque limit part is designed for the main motor reducer so as to protect the machinery if malfunctions occur;

    - Two put-casts in one cycle ensure that every work location should be with one bottle, which enhances bottle output efficiency;

    - The bottles are neck locked through the air conveyor so as to avoid overtuen in delivery;

    - Dilapidated bottles will be eliminated by a special devide;

    - A lock detector is equipped for alarming; when locked, the machine will automatically stop;

    - A photoelectric switch is set for starting when there is no bottle and stopping when there are bottles;

    - Maintenance doors and mould replacement door provided;

    - Mitsubishi, Omron and Siemens provide the main electrical components like transducer, PLC, touc screen, sensor, relay etc.





    Applications



    The automatic bottle sorting machine is used to arrange disordered plastic bottle to production line. It can connect to different production line including mineral water line, food production line, dairy production line, medical production line and chemical production line and etc.





    Working principle and diagram:

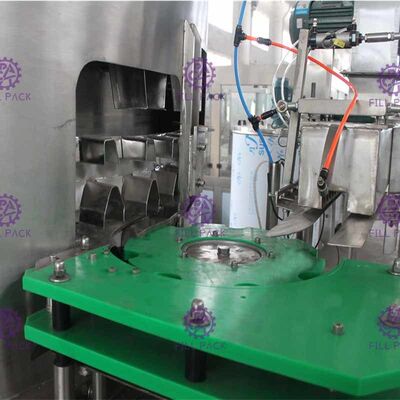

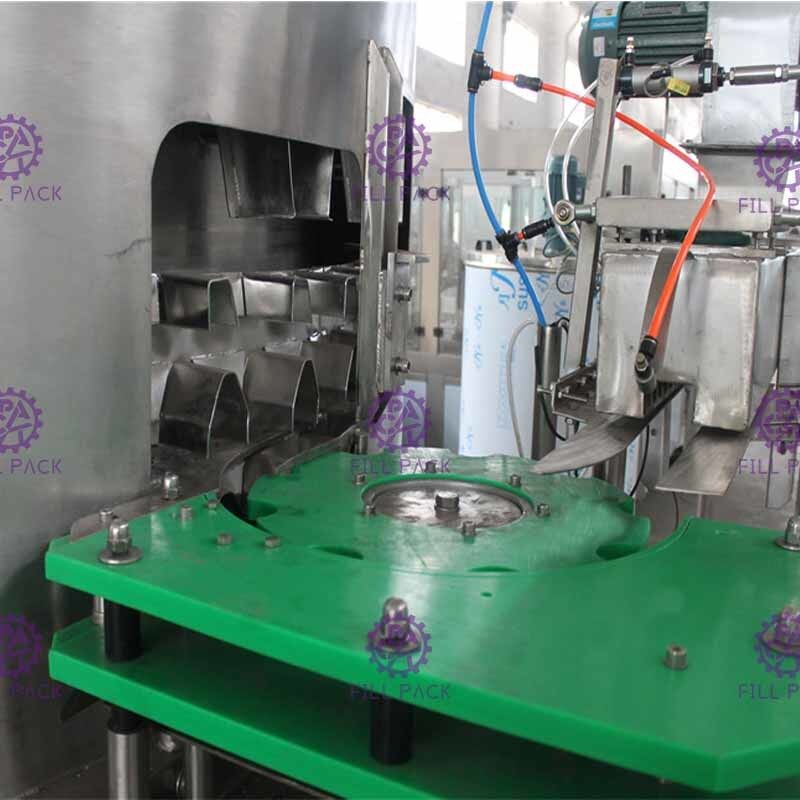

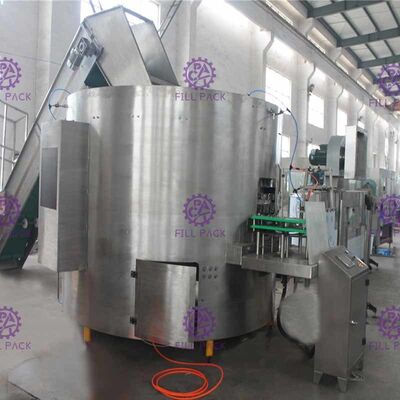

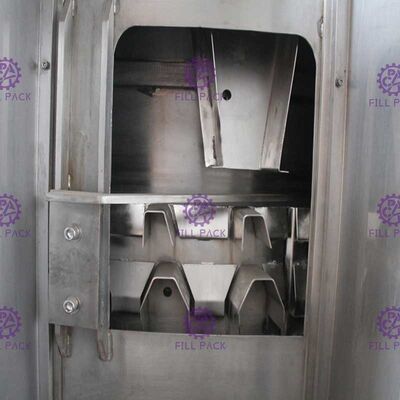

    When the bottle elevator is started, the disordered bottles will be transferred on top of umbrella shape tower ,and then fall into bottle ascending devices .The bottle ascending devices will push bottles into bottle dropping grooves under the action of cam . Then the ordered bottles will be sent out through planet wheel into air conveyor. Planet wheel is connected with motor main axis by synchronous belt.





    Specifications & Electric components



    Model LP-12 LP-14 LP-16 LP-18 LP-21 LP-24 LP-30
    Output (BPH) 6000-8000 8000-10000 10000-12000 18000-20000 22000-25000 28000-30000 33000
    Mainpower 1.5kw 1.5kw 1.5kw 3kw 3kw 3.7kw 3.7kw
    Suitable bottle (D*H)(mm) (50-90)*(165-290)
    Electric sensor Omron
    Relay Siemens





    Competitive Advantage:



    1. One year warranty for the whole system

    2. Free equipment installation and debugging

    3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

    4. Every 3 years, we can help to overhaul the machine free (Labor)

    5. We can provide internship service and help you train the operator and mechanic

    6. Free production technology and process configuration

    7. We can help you to design the production line, workshop and provide turn-key project
