200ml - 500ml Auto Bottle Sorting Machine Simple Type PLC Control

200ml - 500ml Auto Bottle Sorting Machine Simple Type PLC Control

    • 200ml - 500ml Auto Bottle Sorting Machine Simple Type PLC Control
    • 200ml - 500ml Auto Bottle Sorting Machine Simple Type PLC Control
    • 200ml - 500ml Auto Bottle Sorting Machine Simple Type PLC Control
    • 200ml - 500ml Auto Bottle Sorting Machine Simple Type PLC Control
  • 200ml - 500ml Auto Bottle Sorting Machine Simple Type PLC Control

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: FillPack
    Certification: CE. ISO9001
    Model Number: LP
    Condition: New
    Application: Plastic bottle
    Automation: Automatic
    Voltage: 380V 3phase 50/60HZ/customize
    Warranty: 1 year
    After-sales service provided: Engineers available to service machinery overseas

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Sea worthy package
    Delivery Time: 30-40 days after deposit receipt
    Payment Terms: TT/LC/Wertern union
    Supply Ability: 1 set/sets/month
    Contact Now
    Detailed Product Description

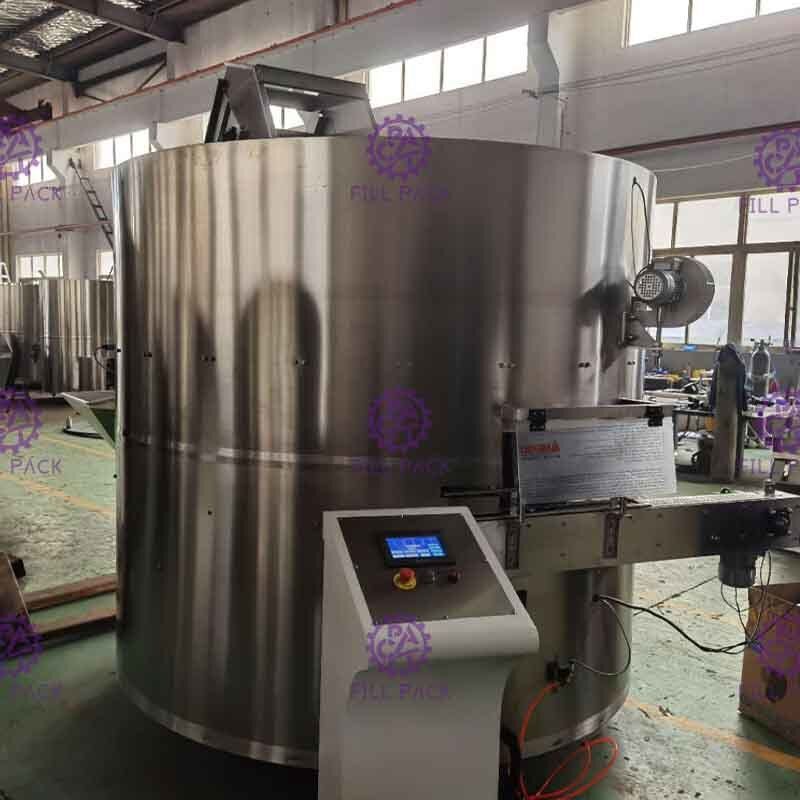

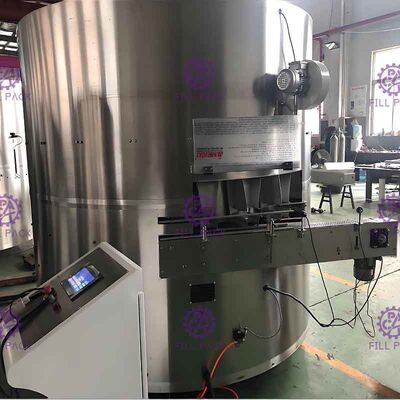

    200ml - 500ml Auto Bottle Sorting Machine Simple Type PLC Control





    Quick Detail:



    1, Capacity: 20000 - 30000 BPH

    2, Automation: TOTALLY automatic

    3, Material: SUS304

    4, Bottle type: 200-500ml Plastic bottles

    5, PLC control





    Description & Working principle:

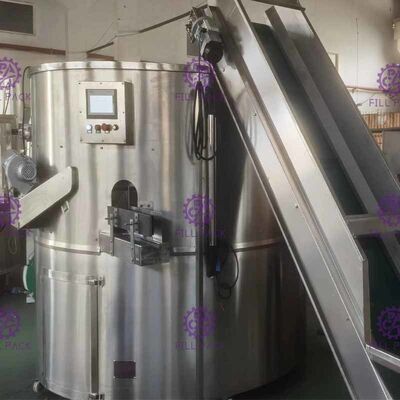

    The automatic bottle sorter is composed by two parts: bottle loading part and bottle sorting machine. Bottles are manually loaded into the bottle loader, and the bottles will be lifted up by belt into bottle sorting machine.

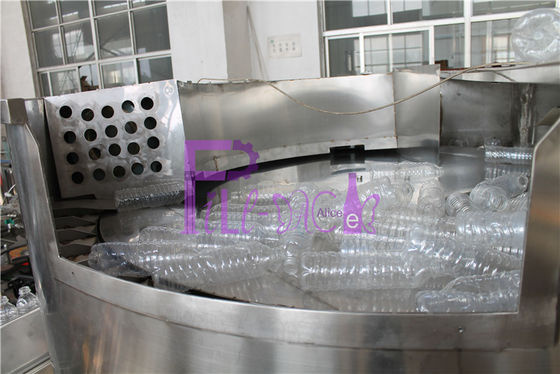

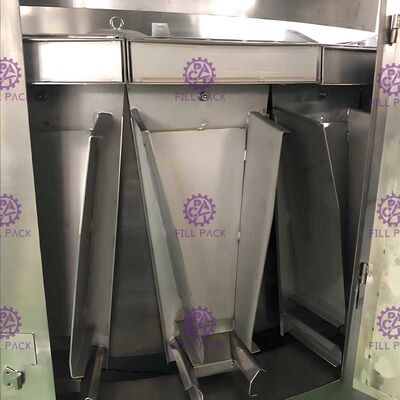

    There are air blowers installed around the sorting machine body. They will blow bottles into the grooves for arranging. Whatever how the machine drop into the grooves, bottles will be out with bottle mouth up.





    Characteristics



    - PLC control; touch screen;

    - Operation mode: automatic mode & manual mode;

    - Eleminate dilapidated bottles automatically;

    - Automatically blow bottles into grooves and calibrate bottle direction;

    - Connect to production line through air conveyor;

    - 200-500ml bottles will be sorted in one machine;

    - Easy maintanance and operation





    Applications



    The automatic bottle sorting machine is used to arrange disordered plastic bottle to production line. It can connect to different production line including mineral water line, food production line, dairy production line, medical production line and chemical production line and etc.





    Specifications:



    Working position 18
    Capacity 20000 - 30000 BPH (500ml)
    Air pressure 0.7Mpa
    Air consumption 2M3/min
    Applicable bottle diameter 50-96mm
    Applicable bottle height 160-300mm
    Main motor 2.2kw
    Lifting motor 0.75kw
    Blow motor 2.2kw
    Dimension (Cylinder part) 2700*2400mm
    Dimension (Lifte part) 800*800*4500mm
    Weight 4500kg





    Competitive Advantage:



    1. One year warranty for the whole system

    2. Free equipment installation and debugging

    3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

    4. Every 3 years, we can help to overhaul the machine free (Labor)

    5. We can provide internship service and help you train the operator and mechanic

    6. Free production technology and process configuration

    7. We can help you to design the production line, workshop and provide turn-key project
