Sparkling Water PET Can Filling Line Industrial Linear Filling Machine

Sparkling Water PET Can Filling Line Industrial Linear Filling Machine

    • Sparkling Water PET Can Filling Line Industrial Linear Filling Machine
    • Sparkling Water PET Can Filling Line Industrial Linear Filling Machine
    • Sparkling Water PET Can Filling Line Industrial Linear Filling Machine
    • Sparkling Water PET Can Filling Line Industrial Linear Filling Machine
    • Sparkling Water PET Can Filling Line Industrial Linear Filling Machine
  • Sparkling Water PET Can Filling Line Industrial Linear Filling Machine

    Product Details:

    Place of Origin: ZhangJiaGang City, JiangSu Province, China
    Brand Name: FILLPACK
    Certification: CE, ISO
    Model Number: DG-12
    Application: Food and beverage production line
    Applicable can: Aluminum can or PET can with carbonated drink
    Washing material: Balanced pressure
    Power: 1.5 KW
    Material: SUS304
    Driven Type: Electric
    Condition State: New
    Service: Engineer available to oversea service
    Guarantee Time: 1 Year

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set/pcs
    Price: Negotiation
    Packaging Details: Blanket cloth or wooden case pacakge
    Delivery Time: 20-25 days
    Payment Terms: 30% T/T deposit, 70% before shipment
    Supply Ability: 30 sets/month
    Contact Now
    Detailed Product Description

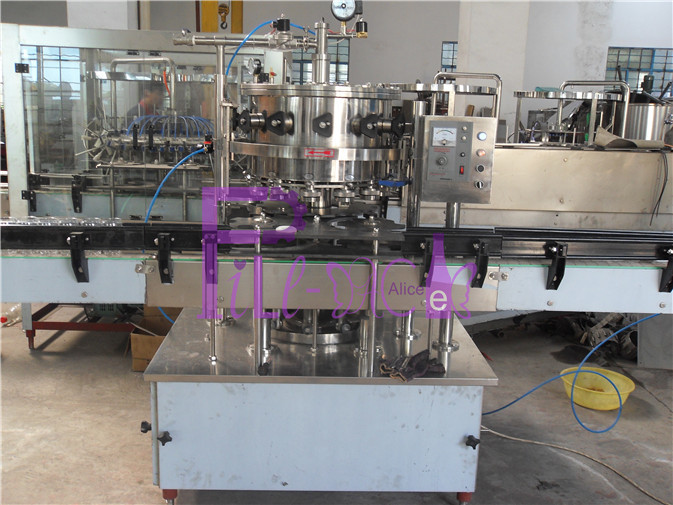

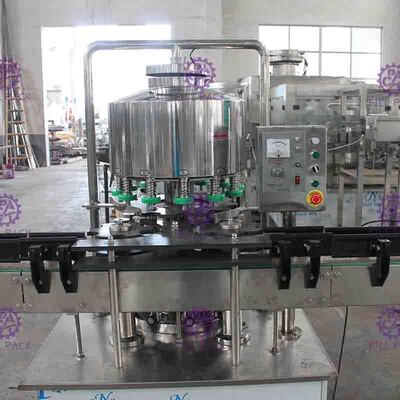

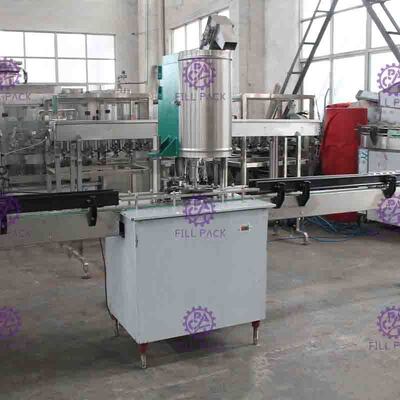

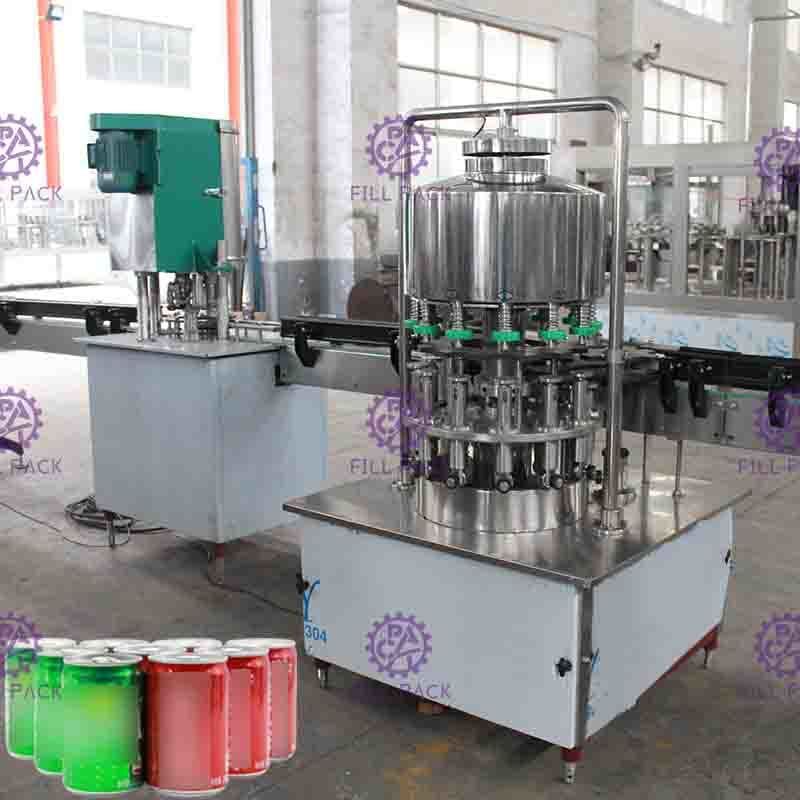

    Sparkling Water PET Can Filling Line Industrial Linear Filling Machine





    Quick Detail:



    1. Material:SUS304

    2. For filling sparkling water, carbonated drink

    3. Avaliable to aluminum can or PET can diamater from 40-120mm

    4. Capacity: 1000-2000 Cans/Hour speed adjustable

    5. Filling pressure: Balanced pressure

    5. Can filling line: Can rinser + can filler + can selaer.





    Description:



    This aluminum can filling machine is used to fill sparkling water, carbonated drink, beer in PET can or aluminum can, all the main material is high quality of SUS304 material, it adopts the special balanced pressure filling valves, has good filling precision and filling stability. The machine speed is controlled by the electromagnetic speed-regulator; The machine is suitable for same size can diameter and different can height, if with different can diameter, then it needs to set with extra can change parts to share the machine.



    Principle:

    Cans go through conveyor to filler, the dia plate will turn the cans to can stands, with the motor driven energy, the can stands go up and forward along the principal axis; When the cans go through gas valve opening position, the trigger on liquid tank will open the valve, at the mean time the bottle mouth will be pressed closely to filling valve head, and the CO2 gas will be put into the bottles, when the pressure inside bottle is same as in liquid tank, the filling valve will be started to fill and filling finish when filling head apart from can mouth, and then can was sent out the machines. The speed control is by motor speed. Whole machine is made by SUS304.The filling head is spring type, no dead angel, no dripping.



    Construction: SUS frames+ liquid tank + filling heads + can transmission system+ conveyor rail





    Specifications:

    Model DG-12
    Capacity 1000-2000 Cans/H(500ml)
    Material SUS304
    Filling pressure Balanced pressure
    Applicable tin can diameter 40-120mm
    Applicable tin can height 50-180mm
    Speed of belt: controlled by motor, adjustable
    Power 1.5 KW
    Water pressure 0.15Mpa
    Dimension L1100*W1000*H1800mm
    Weight 500kg



    Sparkling Water PET Can Filling Line Industrial Linear Filling Machine

    please kindly click the play button to watch the video
