Fruit Juice Hot Filling Machine 3 In 1 Monoblock Washing Filling Capping Machine

Fruit Juice Hot Filling Machine 3 In 1 Monoblock Washing Filling Capping Machine

    • Fruit Juice Hot Filling Machine 3 In 1 Monoblock Washing Filling Capping Machine
    • Fruit Juice Hot Filling Machine 3 In 1 Monoblock Washing Filling Capping Machine
    • Fruit Juice Hot Filling Machine 3 In 1 Monoblock Washing Filling Capping Machine
    • Fruit Juice Hot Filling Machine 3 In 1 Monoblock Washing Filling Capping Machine
  • Fruit Juice Hot Filling Machine 3 In 1 Monoblock Washing Filling Capping Machine

    Product Details:

    Place of Origin: China,JiangSu,Zhangjiagang
    Brand Name: FillPack
    Certification: CE & ISO & TUV & SGS
    Model Number: YFRG18-18-6
    Color: Silver Gray
    Control: PLC Control With Touch Screen
    Processing: Japan & Germany
    Suitable Bottle Size: 0.3-2L PET Bottle
    Cap Style: Plastic Screw Cap
    Capacity: 6000-8000BPH
    Electrical Brand: Mitsubishi, OMRON, SIEMENS
    Warranty: 1 Year for Spare Parts

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 18000-45000USD
    Packaging Details: Wooden Case Package
    Delivery Time: 30 Working Days After Receiving Your Deposit Payment
    Payment Terms: TT & L/C
    Supply Ability: 20 sets/month
    Contact Now
    Detailed Product Description





    Fruit Juice Hot Filling Machine 3 In 1 Monoblock Washing Filling Capping Machine





    Quick Detail:



    Name: Fruit Juice Hot Filling Machine 3 In 1 Monoblock Washing Filling Capping Machine

    Material: Food stage stainless steel
    Control: PLC & touch screen control
    Capacity: 6000-8000bph
    Suitable Bottle: PET bottle
    Bottle Volume: 0.3-2L
    Dimension: By order
    Function: Washing filling capping 3 in 1
    Technology: Germany & Japan
    After-sales service provided: Engineers available to service machinery overseas .





    Description:



    1. This series of machines integrate washing, filling and capping in one unit, can be used for different kinds of fruit juices and tea hot drink production. With only a few parts changed, the machine can also be used for mineral water filling.

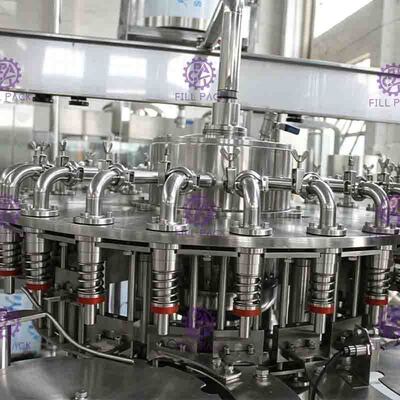

    2. The advanced micro-negative pressure filling technology is used in this machine to make the filling is quick, steady and accurate.

    3. The beverage feedback system is well designed, the gas can be feed back separately, has no contact with beverage reduce the second time pollution and oxidation.

    4. This machine can meet all the technical requirements for hot drink filling below 95°c. All filling valves and beverage conducting pipes can be cleaned. And the automatic washing interface CIP is designed in the machine before capping.

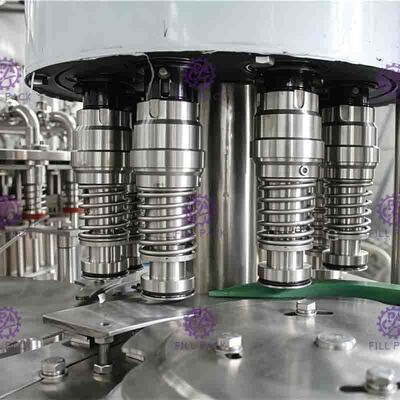

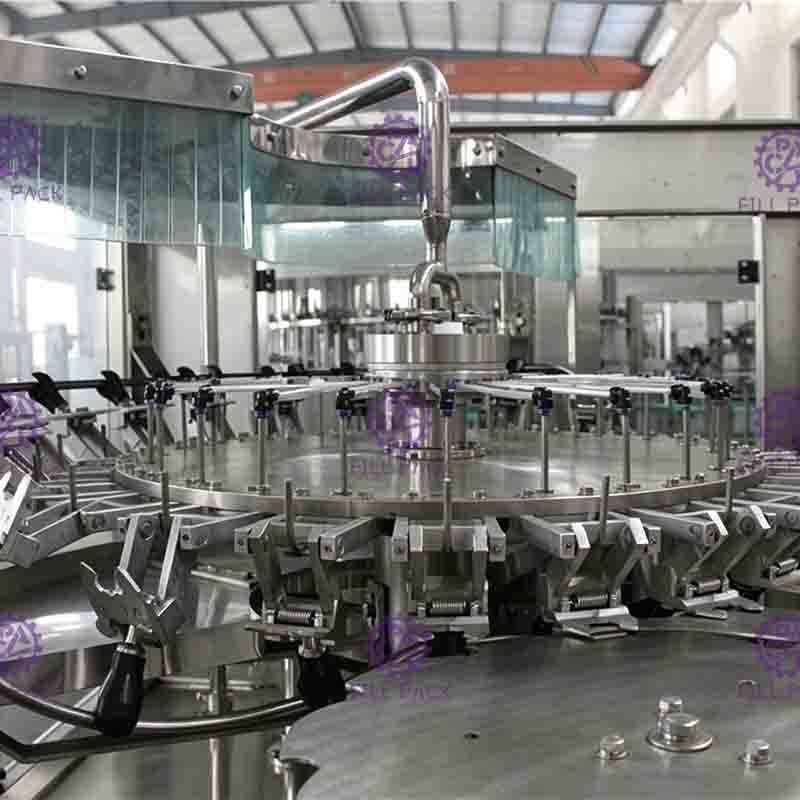

    5. The RO water washing device is used to wash the bottle mouth to keep mould away from the bottle mouth. Magnetic torque is used for screw capping, the power of screw capping can be adjusted step by step.

    6. It can use constant power to screw capping the plastic caps. The human machine interface is the touch screen. The most advanced PLC control and frequency changing technologies are used in this machine.

    7. The cap feeding system can be controlled automatically, the filling temperature can be detected automatically. Alarm system for the over heat of the beverage. The filling will be stopped when the beverage temperature is too low and the beverage will flow back. When no bottles and caps are available, the machine will be in waiting state, and no caps will be applied.





    Specifications:



    Model YFRG12-12-4 YFRG18-18-6 YFRG24-24-8 YFRG32-32-10
    Production B/H(600ml) 4000-5000 6000-8000 8000-12000 12000-15000
    Bottle standard Neck:φ50-100mmHeight150-320mm
    Water pressure of washing bottle 0.18-0.25Mpa
    Water consumption for washing bottle (kg/h) 1300 2000 3000 4000
    Spraying position 4 7 10 14
    Dripping bottle position 3 5 8 10
    Filing precision +5MM
    Gas source pressure 0.4Mpa
    Gas consumption(m³/min) 0.3 0.4 0.5 0.7
    Total power(KW) 4.2 4.5 5 6.2
    Total weight (T) 2 2.5 3 4
    Dimension (L*W*H)mm 2100*1600*2100 2500*1750*2100 2700*2100*2100 3500*2100*2100











    Competitive Advantage:



    1. One year warranty for the whole system

    2. Free equipment installation and debugging

    3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

    4. Every 3 years, we can help to overhaul the machine free (Labor)

    5. We can provide internship service and help you train the operator and mechanic

    6. Free production technology and process configuration

    7. We can help you to design the production line, workshop and provide turn-key project





    Market Distribution:



    Market Revenue(Previous Year) Total Revenue (%)
    Africa confidential 40%
    Middle east confidential 15%
    America confidential 5%
    Euro confidential 4%
    Middle Aisa confidential 3%
    South-east Asia confidential 3%
    Domestic confidential 30%
