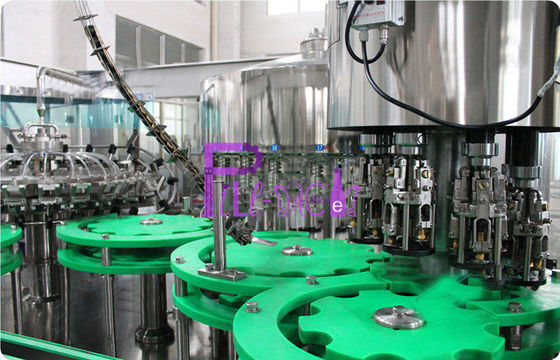

0.3L High Viscosity Concentrated Juice Filling Machine , Automatic Capping Machine

0.3L High Viscosity Concentrated Juice Filling Machine , Automatic Capping Machine

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE & ISO & TUV & SGS
Model Number: RCGF24-24-8
Color: Silver Gray
Control: PLC Control With Touch Screen
Processing: Japan & Germany
Suitable Bottle Size: 0.3-2L Glass Bottle
Cap Style: Metal Caps
Capacity: 6000-8000BPH
Electrical Brand: Mitsubishi, OMRON, SIEMENS
Warranty: 1 Year for Spare Parts

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case Package
Delivery Time: 30 Working Days After Receiving Your Deposit Payment
Payment Terms: TT & L/C
Supply Ability: 20 sets/month
Get Best Price Contact Now

Detail Information

High Light:

0.3L Automatic Capping Machine

,

0.3L Concentrated Juice Filling Machine

,

TUV Concentrated Juice Filling Machine

Product Description





High Viscosity Concentrated Juice Filling Machine , Automatic Capping Machine





Quick Detail:



Name: High Viscosity Concentrated Juice Filling Machine , Automatic Capping Machine

Material: Food stage stainless steel
Control: PLC & Touch screen control
Capacity: 6000-8000bph
Suitable Bottle: Glass bottle
Bottle Volume: 0.3-2L
Dimension: By order
Function: Washing filling capping 3 in 1
Technology: Germany & Japan
After-sales service provided: Engineers available to service machinery overseas .





Description:



1. This series of machines integrate washing, filling and capping in one unit, can be used for different kinds of fruit juices and tea hot drink production. With only a few parts changed, the machine can also be used for mineral water filling.

2. The advanced micro-negative pressure filling technology is used in this machine to make the filling is quick, steady and accurate.

3. The beverage feedback system is well designed, the gas can be feed back separately, has no contact with beverage reduce the second time pollution and oxidation.

4. This machine can meet all the technical requirements for hot drink filling below 95°c. All filling valves and beverage conducting pipes can be cleaned. And the automatic washing interface CIP is designed in the machine before capping.

5. The RO water washing device is used to wash the bottle mouth to keep mould away from the bottle mouth. Magnetic torque is used for screw capping, the power of screw capping can be adjusted step by step.

6. It can use constant power to screw capping the plastic caps. The human machine interface is the touch screen. The most advanced PLC control and frequency changing technologies are used in this machine.

7. The cap feeding system can be controlled automatically, the filling temperature can be detected automatically. Alarm system for the over heat of the beverage. The filling will be stopped when the beverage temperature is too low and the beverage will flow back. When no bottles and caps are available, the machine will be in waiting state, and no caps will be applied.





Specifications:



Model RCGF12-12-4 RCGF18-18-6 RCGF24-24-8 RCGF32-32-10 RCGF40-40-12
Production(B/H)(500ml) 4000-5000 6000-8000 8000-12000 12000-15000 16000-20000
Bottle standard Neck: φ50-100mm; Height: 150-320mm
Water pressure of washing bottle 0.18-0.25Mpa
Water consumption for washing bottle(kg/h) 1300 2000 3000 4000 5000
Spraying position 4 7 10 14 18
Dripping bottle position 3 5 8 10 15
Filing precision +5MM
Gas source pressure 0.4Mpa

Gas consumption

(m³/min)

0.3 0.4 0.5 0.7 0.8
Total power(kw) 4.2 4.5 5 6.2 7.8
Total weight(T) 2 2.5 3 4 6
Dimension (L*W*H)(mm) 2100*1600*2100 2500*1750*2100 2700*2100*2100 3500*2100*2100 3800*2200*2200











Competitive Advantage:



1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project





Company description



    Zhangjiagang City FILL-PACK Machinery Co., Ltd is a manufacturer enterprise specializing in producing beverage packing equipment and various water treatment equipment. The company has not only gained over ten year’s producing experience but also incorporated advanced technology from home and abroad. So we have won high reputation among our customers domestic and abroad.



    At present we produce: production lines for mineral water, pure water, fruit juice, tea drink, milk drink and carbonated drink with capacity 1000-20000bottles/hour, production lines for vinegar, soy sauce and wine, 3-5gallon barreled water with capacity 80-120 barrels per hour and various water treatment plant.



    Honesty, Sincerity, and good faith" is our spirit, while "High technology, high quality, and high level" is what we look for. We try our best to satisfy our customers' needs with our good after-sales service. We would like to cooperate with our friends and develop together. All friends from at home and abroad are warmly welcomed to visit us.
