Fully Automatic Glass Bottle Washing Machine Industrial Rotary Bottle Washer 2000BPH

Fully Automatic Glass Bottle Washing Machine Industrial Rotary Bottle Washer 2000BPH

    • Fully Automatic Glass Bottle Washing Machine Industrial Rotary Bottle Washer 2000BPH
    • Fully Automatic Glass Bottle Washing Machine Industrial Rotary Bottle Washer 2000BPH
    • Fully Automatic Glass Bottle Washing Machine Industrial Rotary Bottle Washer 2000BPH
    • Fully Automatic Glass Bottle Washing Machine Industrial Rotary Bottle Washer 2000BPH
  • Fully Automatic Glass Bottle Washing Machine Industrial Rotary Bottle Washer 2000BPH

    Product Details:

    Place of Origin: China,JiangSu,Zhangjiagang
    Brand Name: FillPack
    Certification: CE,ISO
    Model Number: QS-12
    Automatic grade: automatic
    Power: 0.75kw
    Driven type: Electric
    Certification: CE, ISO
    Gurantee time: 1 year
    Condition: New
    Voltage: Customised

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set/pcs
    Price: Negotiation
    Packaging Details: Blanket cloth or wooden case as machine need
    Delivery Time: 10-15days
    Payment Terms: 30% T/T deposit, 70% before shipment
    Supply Ability: 50 sets/month
    Contact Now
    Detailed Product Description

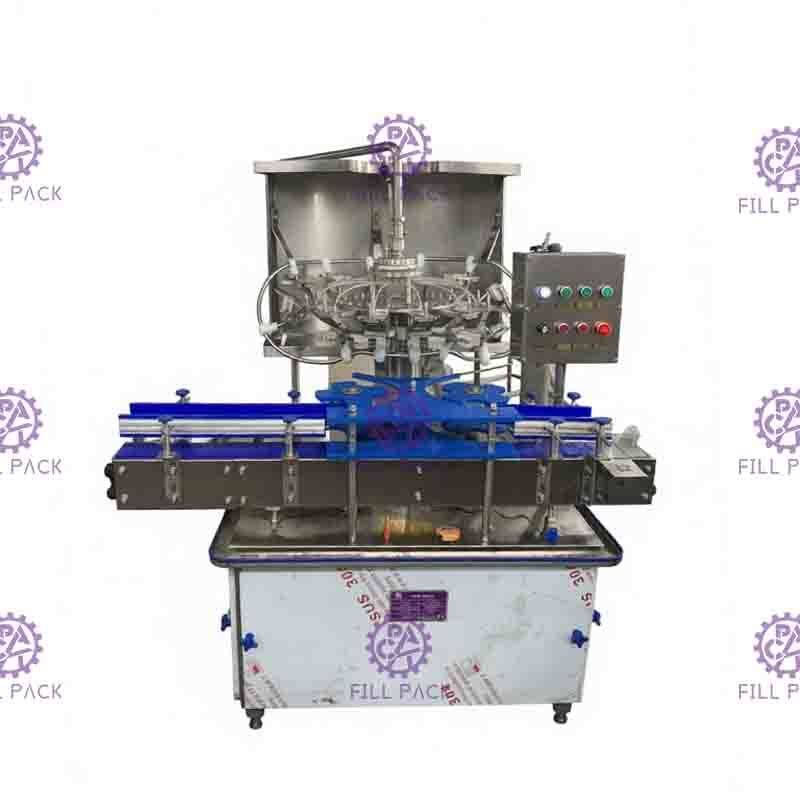

    Fully Automatic Glass Bottle Washing Machine Industrial Rotary Bottle Washer 2000BPH





    Quick Detail:



    1. Capacity: 1000-2000B/H

    2. Applicable bottle: New empty glass bottle

    3. Washing material: Clean pure water, sterilized water

    4. Speed adjustable with electromagnetic regulator

    5. Main material: SUS304

    6. With 12 washing heads





    Description:



    QS series rotary automatic bottle washer adopts advanced technology of Germany SEN corp and is developed combining the condition of our country. The equipment is mainly used to clean the new plastic or glass bottles of mineral water, pure water. It adopts continuously spraying and washing method. It has high efficiency and good washing result. It is available to different size of bottle, and it also has the advantages of a wide range of easy to operate and easy maintenance. It’s perfect equipment in the production line of beverage industry.





    Feature:



    1. Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180~ along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.

    2. Except the down framework, the transmission parts and some parts that must be made of special materials. Other spare parts are made of stainless steel 304.

    3.The roller bearing is made of stainless steel, the sealing ring is made of EPDM material, and plastic is made of UMPE.

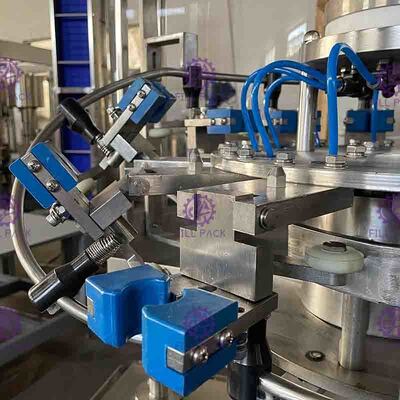

    4.The gripper is made of stainless steel, the position where hold the bottleneck is also made of stainless steel, compared with the traditional rubber gripper, it is much hygiene, durable, and no quick-wear parts, the screw parts of the bottleneck can avoid being polluted by the rubber gripper.

    5.The gripper equipped with high-efficient spray nozzle, it can develop to any position of in wall of the bottle, and can save rinsing water. There is a cover above the spray nozzle which can prevent water spilling; and there are regulatory recycle slot and recycle pipes under the nozzles.

    6.By adjusting the height of the rotary parts to adapt for different bottle height

    7.The motivation is derived from the driven system in the framework passed by gear.

    8.The supplying of rinsing water is controlled by solenoid valve





    Components:



    Machine frame, one motor, one water pump, one set conveyor track and magnetic device, rotary washing plate, spring cramps, water pipe, operation plate with knob.





    Applications:



    1. The equipment is mainly used to wash the new empty glass bottles for beverage use. It adopts continuously spraying and washing method.





    Specifications:



    Model : QS-12
    Production Capacity : 1000-2000b/h (500ml)
    Applicable bottle New empty PET bottle, glass bottle
    Washing head 12
    Diameter of bottle: 40-100 mm
    Height of bottle : 80-320 mm
    Power: 0.75kw
    Overall Dimensions: 1100×1000×1800mm
    Weight: 350kg



    Fully Automatic Glass Bottle Washing Machine Industrial Rotary Bottle Washer 2000BPH

    please kindly click the play button to watch the video
