Linear Bottle Filling Machine Drinking Water Washing , Filling , Capping Machine

Linear Bottle Filling Machine Drinking Water Washing , Filling , Capping Machine

    • Linear Bottle Filling Machine Drinking Water Washing , Filling , Capping Machine
    • Linear Bottle Filling Machine Drinking Water Washing , Filling , Capping Machine
    • Linear Bottle Filling Machine Drinking Water Washing , Filling , Capping Machine
    • Linear Bottle Filling Machine Drinking Water Washing , Filling , Capping Machine
    • Linear Bottle Filling Machine Drinking Water Washing , Filling , Capping Machine
  • Linear Bottle Filling Machine Drinking Water Washing , Filling , Capping Machine

    Product Details:

    Place of Origin: Zhangjiagang, China
    Brand Name: FillPack
    Certification: CE / ISO9001 - 2008
    Model Number: CYG/QS/FXZ
    Condition: New
    Application: PET bottle water
    Automation: Automatic
    Suitable Bottle Size: 0.3-2L PET Bottle
    Fuction: washing filling capping monoblock
    Capacity: 2000BPH
    Warranty: 1 Year for Spare Parts
    Service: Technician avaliable overseas

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Wooden Case Package
    Delivery Time: 30 Working Days After Deposit
    Payment Terms: TT & L/C
    Supply Ability: 20 Sets Per Months
    Contact Now
    Detailed Product Description



    Linear Bottle Filling Machine Drinking Water Washing , Filling , Capping Machine





    Quick Detail:



    Machine structure: Linear Water Washing-Filling-Capping Machine

    Applicative Bottle: PET bottle

    Applicative cap: Screw cap

    Applicative volume: 0.3-2L

    Applicative liquid: non gas water
    Production Capacity: 2000bph

    Operation manner: Solenoid valve control



    Description:



    - Small capacity and compact structure

    - Soenoid control

    - Various shapes of bottles can be used in one machine





    Specifications:

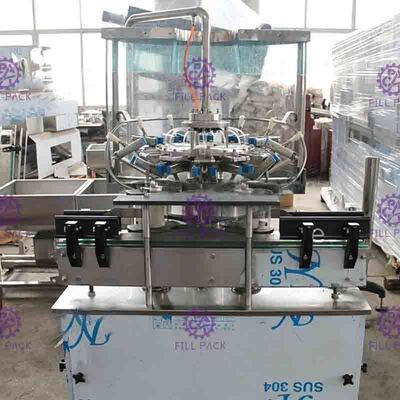

    Washing machine
    Model QS-12
    Capacity 1000-2000BPH
    Motor power 0.75kw
    Water pump 0.37kw
    Voltage 380V 3phase 50/60HZ
    Dimension 1150*1150*1850mm
    weight 450kg

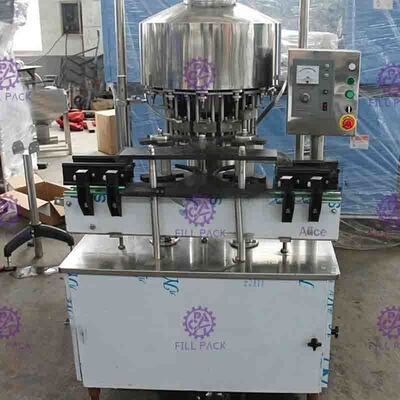

    Filling machine
    Model CYG-12
    Capacity 1000-2000BPH
    Motor power 0.75kw
    Voltage 380V 3phase 50/60HZ
    Dimension 960*920*1750mm
    Weight 550kg

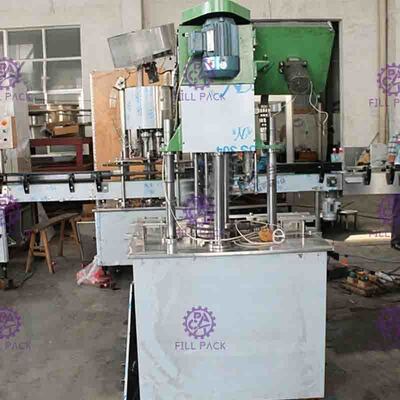

    Capping machine
    Model FXZ-1
    Capacity 1000-2000BPH
    Motor power 0.75kw
    Voltage 380V 3phase 50/60HZ
    Dimension 920*700*1930mm
    Weight 400KG





    Competitive Advantage:



    1. One year warranty for the whole system

    2. Free equipment installation and debugging

    3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

    4. Every 3 years, we can help to overhaul the machine free (Labor)

    5. We can provide internship service and help you train the operator and mechanic

    6. Free production technology and process configuration

    7. We can help you to design the production line, workshop and provide turn-key project

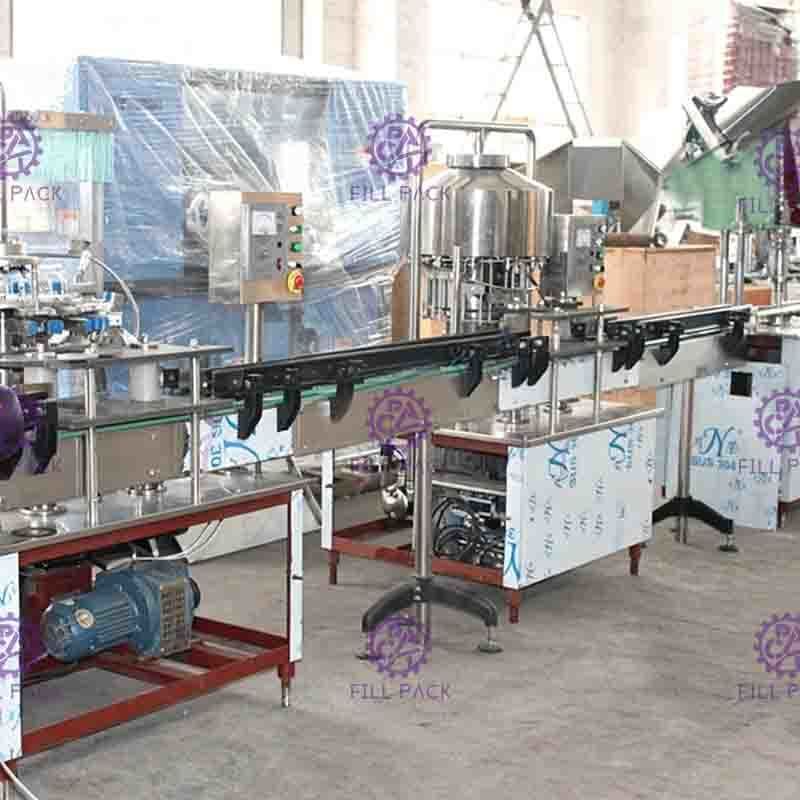

    Our workshop & Shipment



    Linear Bottle Filling Machine Drinking Water Washing , Filling , Capping Machine



    Linear Bottle Filling Machine Drinking Water Washing , Filling , Capping Machine

    please kindly click the play button to watch the video
