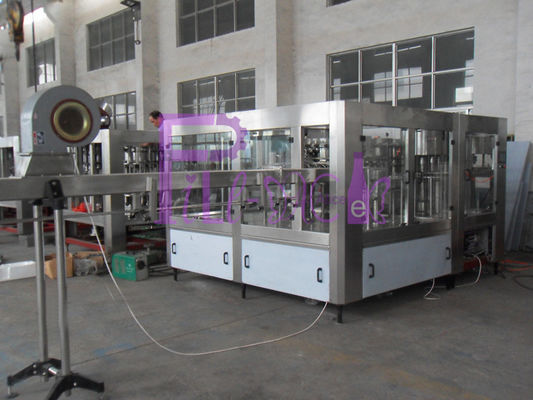

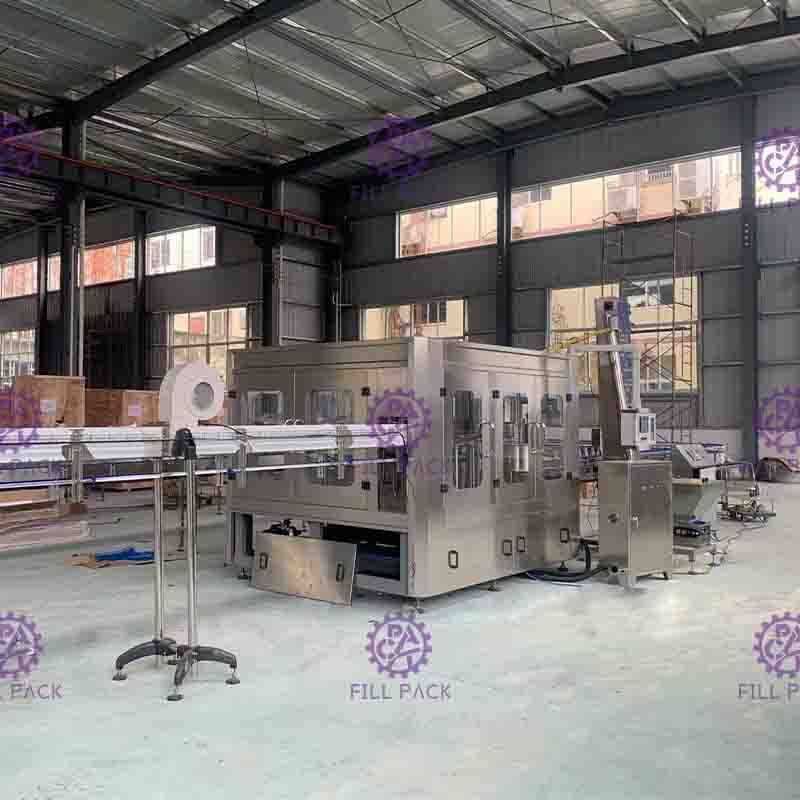

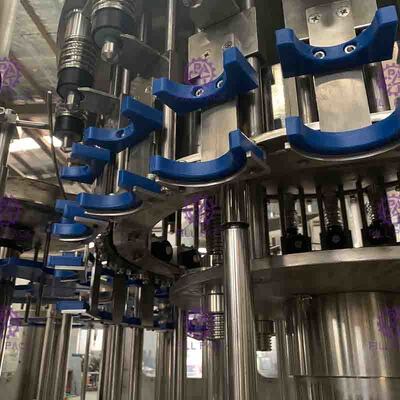

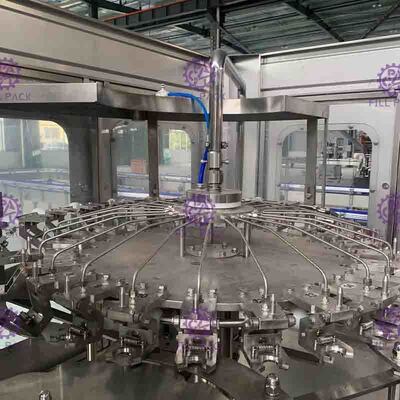

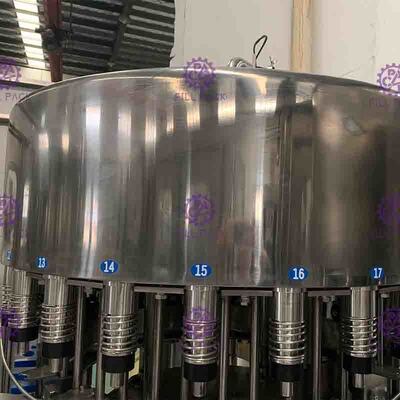

PLC Control Water Production Line , 15000BPH Plastic Bottle Monoblock Filling Machine

PLC Control Water Production Line , 15000BPH Plastic Bottle Monoblock Filling Machine

    • PLC Control Water Production Line , 15000BPH Plastic Bottle Monoblock Filling Machine
    • PLC Control Water Production Line , 15000BPH Plastic Bottle Monoblock Filling Machine
    • PLC Control Water Production Line , 15000BPH Plastic Bottle Monoblock Filling Machine
    • PLC Control Water Production Line , 15000BPH Plastic Bottle Monoblock Filling Machine
    • PLC Control Water Production Line , 15000BPH Plastic Bottle Monoblock Filling Machine
  • PLC Control Water Production Line , 15000BPH Plastic Bottle Monoblock Filling Machine

    Product Details:

    Place of Origin: China,JiangSu,Zhangjiagang
    Brand Name: FillPack
    Certification: CE & ISO
    Model Number: CGF32-32-10
    Control: PLC Control With Touch Screen
    Processing: Japan & Germany
    Suitable Bottle Size: 0.3-2L PET Bottle
    Cap Style: Plastic Screw Cap
    Capacity: 12000-15000BPH
    Electrical Brand: Mitsubishi, OMRON, SIEMENS
    Warranty: 1 Year for Spare Parts
    Control: PLC Control With Touch Screen
    Processing: Japan & Germany
    Suitable Bottle Size: 0.3-2L PET Bottle
    Cap Style: Plastic Screw Cap
    Capacity: 12000-15000BPH
    Electrical Brand: Mitsubishi, OMRON, SIEMENS
    Warranty: 1 Year for Spare Parts

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 12000-40000USD
    Packaging Details: Wooden Case Package
    Delivery Time: 20-30 Working Days After Receiving Your Deposit Payment
    Payment Terms: TT & L/C
    Supply Ability: 20 Sets Per Year
    Contact Now
    Detailed Product Description
    Processing Type: Filling Water Into Bottles Material: Touch Parts SUS304/SUS316
    Machine Structure: Monoblock Machine Filling Type: Normal Pressure Filling
    Control: PLC Control With Touch Screen Cap Style: Plastic Screw Cap
    Capacity: 12000-15000BPH Electrical Brand: Mitsubishi, OMRON, SIEMENS

    PLC Control Water Production Line , 15000BPH Plastic Bottle Monoblock Filling Machine





    Quick Detail:


    Machine structure: 3 in 1 filling machine / monoblock

    Material: Food stage stainless steel 304/316
    Filling type: Normal pressure filling machine

    Control: PLC & touch screen control
    Capacity: 12000-15000bph
    Suitable Bottle: PET bottle
    Bottle Volume: 0.3-2L
    Dimension: Basing on real bottles and caps
    After-sales service provided: Engineers available to service machinery overseas.





    Description:



    1. The plastic bottle water filling machine is mainly used in mineral/pure/non-carbonated/distilled water etc. production line, there are three functions integrated in one machine, they are bottle washing, mineral water filling, bottle capping. The full production processing is automatic, when the empty bottle coming through the machine, then coming out the bottled mineral water.



    2. The plastic bottle water filling machine is composed by rotary washer, normal pressure filler, screw type sealer and conveying system.



    3. The plastic bottle water filling machine's construction is advanced, the performance is stable. The operation and maintain are easy.



    4. The speed of automatic mineral water filling machine can be adjusted infinitively and accords with the standards.



    5. The usual production capacity is in 2000-20000bph, 0.2-2L PET bottle is available.





    Specifications:



    Model CGF8-8-3 CGF12-12-6 CGF18-18-6 CGF24-24-8 CGF32-32-10
    Rinsing Head No 8 12 18 24 32
    Filling Head No 8 12 18 24 32
    Capping Head No 3 6 6 8 10

    Rated

    Capacity

    (500ml)

    2000BPH 4000BPH 7000-8000BPH 10000-15000BPH 15000-20000BPH
    Overall Size

    1900*1420*

    2000mm

    2200*1600*

    2300mm

    2450*1900*

    2300mm

    2750*1180*

    2400mm

    4000*2300*

    2300mm

    Weight 1.5T 2.2T 3.0T 4.0T 8.0T

    Power

    (KW)

    3.0kw 3.5kw 4.0kw 4.8kw 7.6kw
    Rated Voltage Customized Customized Customized Customized

    Customized





    Complete Flow Chart



                                                                                                                   Ion Re-birth Device

                                                                                                                                       V

    Raw Water Source>Booster Pump>Quartz Sand Filter>Active Carbon Filter>Water Softener>RO Unit>UV Sterilizer>Pure Water Storage Tank<Ozone Machine

                                               V                                                                      (Steam Generator)

                                               V                                                                                       V

    Bottle Blowing System> Monoblock Water Filling Machine>Labeling machine>(Shrinking Tunnel)>Code Printer>Shrink Wrapping Machine





    Competitive Advantage:



    1. One year warranty for the whole system

    2. Free equipment installation and debugging

    3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

    4. Every 3 years, we can help to overhaul the machine free (Labor)

    5. We can provide internship service and help you train the operator and mechanic

    6. Free production technology and process configuration

    7. We can help you to design the production line, workshop and provide turn-key project





    Packaging & Shipping



    PLC Control Water Production Line , 15000BPH Plastic Bottle Monoblock Filling Machine



    PLC Control Water Production Line , 15000BPH Plastic Bottle Monoblock Filling Machine

    please kindly click the play button to watch the video
