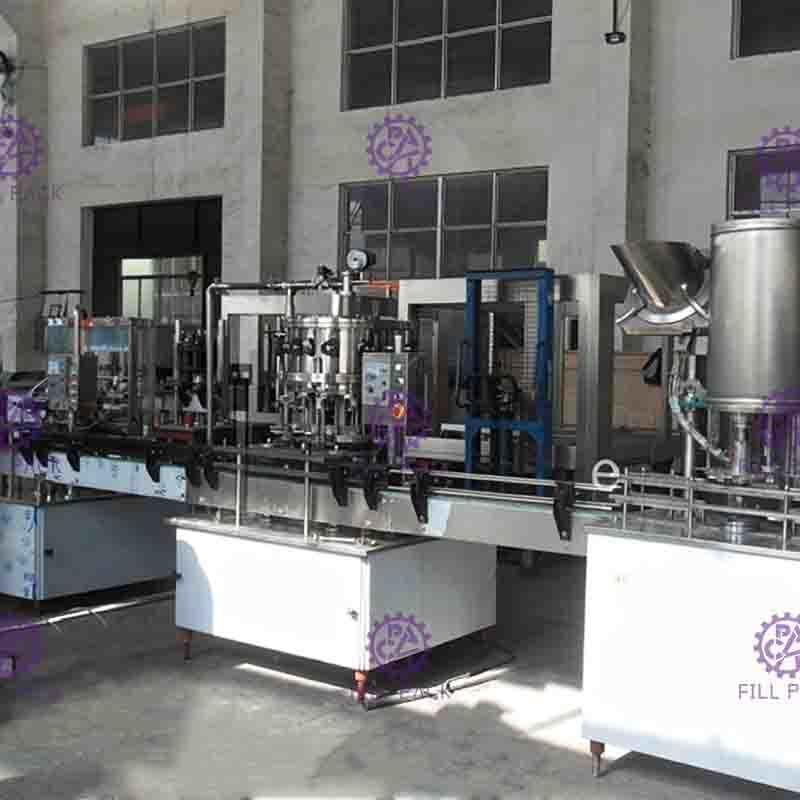

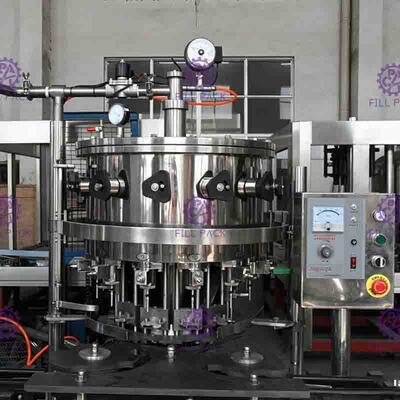

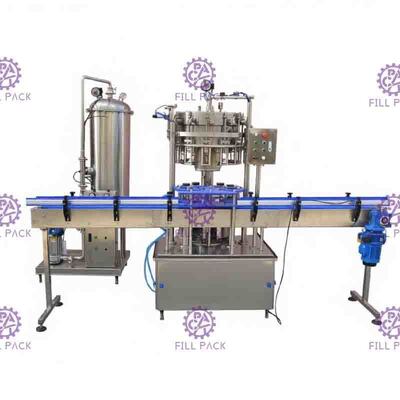

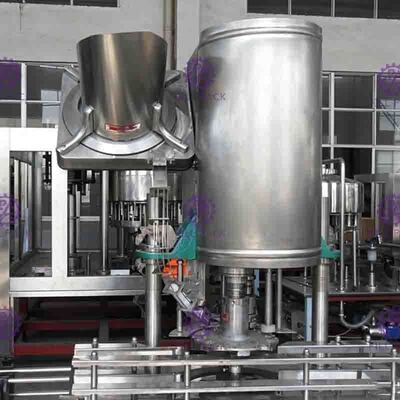

Linear Type Soft Drink Bottling Equipment 0.25L - 2.5L For Plastic Bottle
Product Details:
| Place of Origin: | China,JiangSu,Zhangjiagang |
| Brand Name: | FillPack |
| Certification: | CE & ISO & TUV & SGS |
| Model Number: | DXGF32-32-8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case Package |
| Delivery Time: | 30 Working Days After Receiving Your Deposit Payment |
| Payment Terms: | TT & L/C |
| Supply Ability: | 20 sets/month |
|
Detail Information |
|||
| Processing Type: | Fill Carbonated Drink Into Plastic Bottles | Filling Type: | Balanced Pressure Filling Machine |
|---|---|---|---|
| Machine Structure: | Linear Type Filling Machine | ||
| High Light: | soft drink bottling equipment,coke filling machine |
||
Product Description
Linear Type Soft Drink Bottling Equipment 0.25L - 2.5L For Plastic Bottle
Quick Detail:
Material: Food stage stainless steel
Control: Solenoid valve control
Machine structure: Linear type
Filling type: Balanced pressure filling machine
Capacity: 2000-3000bph
Suitable Bottle: Plastic bottle
Bottle Volume: 0.25-2.5L
Dimension: By order
After-sales service provided: Engineers available to service machinery overseas .
Description:
This filling line is to fill carbonated liquid into plastic bottles. It is different from the monoblock filling machine. It devides the washing, filling and capping to individual machines and connected by the belt conveyor.
Characteristics:
1, Economic filling machine with small capacity;
2, Solenoid valve control;
3, Stable performance;
4, Easy operation and maintenance;
Specifications:
| Model (DXGF) | 12-12-5 | 18-18-6 | 24-24-8 | 32-32-8 | 40-40-10 | 50-50-12 | 60-60-15 | 80-80-20 |
| Number of washing, filling, capping heads | 12-12-5 | 18-18-6 | 24-24-8 | 32-32-8 | 40-40-10 | 50-50-12 | 60-60-15 | 80-80-20 |
|
Suited bottle specification (mm) |
Φ=50-100 H=170 (330-1500ML) |
Φ50-Φ110 H=160-340 |
||||||
|
Production capacity (350ML) |
2000- 4000 |
4000- 6000 |
8000- 10000 |
10000- 12500 |
12500 -15000 |
16000 -20000 |
20000 -24000 |
26000 -32000 |
|
Washing pressure |
0.2-0.25 | 0.2-0.25 | ||||||
|
Filling pressure |
0.15-0.35 | 0.15-0.35 | 0.15-0.35 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 |
|
Motor power (Kw) |
1.5+0.55 +0.12 |
2.2+0.55 +0.18 |
3+0.55 +0.18 |
5.5+0.55 +0.18 |
7.5 | 11 | 15 | 19 |
| Overall dimensions (L×W×H) mm |
2300×1600 ×2500 |
2600×1920 ×2550 |
3100×2200 ×2800 |
3850×3000 ×2850 |
4850×3800 ×2750 |
5750×3550 ×2750 |
6500×5500 ×2750 |
7680×6640 ×2650 |
|
Weight (kg) |
2800 | 3650 | 4800 | 6800 | 8650 | 10500 | 12800 |
16000 |
Competitive Advantage:
1. One year warranty for the whole system
2. Free equipment installation and debugging
3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price
4. Every 3 years, we can help to overhaul the machine free (Labor)
5. We can provide internship service and help you train the operator and mechanic
6. Free production technology and process configuration
7. We can help you to design the production line, workshop and provide turn-key project
Company description
Zhangjiagang City FILL-PACK Machinery Co., Ltd. is a manufacturer enterprise specializing in producing beverage packing equipment and various water treatment equipment. The company has not only gained over ten year’s producing experience but also incorporated advanced technology from home and abroad. So we have won high reputation among our customers domestic and abroad.
At present we produce: production lines for mineral water, pure water, fruit juice, tea drink, milk drink and carbonated drink with capacity 1000-20000bottles/hour, production lines for vinegar, soy sauce and wine, 3-5gallon barreled water with capacity 80-120 barrels per hour and various water treatment plant.
Honesty, Sincerity, and good faith" is our spirit, while "High technology, high quality, and high level" is what we look for. We try our best to satisfy our customers' needs with our good after-sales service. We would like to cooperate with our friends and develop together. All friends from at home and abroad are warmly welcomed to visit us.
