Linear Type Juice / Tea Tin Can Filling Line With High Speed

Linear Type Juice / Tea Tin Can Filling Line With High Speed

    • Linear Type Juice / Tea Tin Can Filling Line With High Speed
    • Linear Type Juice / Tea Tin Can Filling Line With High Speed
    • Linear Type Juice / Tea Tin Can Filling Line With High Speed
    • Linear Type Juice / Tea Tin Can Filling Line With High Speed
  • Linear Type Juice / Tea Tin Can Filling Line With High Speed

    Product Details:

    Place of Origin: ZhangJiaGang City, JiangSu Province, China
    Brand Name: FillPack
    Certification: CE, ISO
    Model Number: CG-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set/pcs
    Price: Negotiation
    Packaging Details: Blanket cloth or wooden case pacakge
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 50 sets/month
    Contact Now
    Detailed Product Description
    Guarantee Time: 1 Year Material: Stainless Steel
    Color: Silver Gray Condition: New
    Processing Type: Beverage Production Line Service: Engineers Available To Serve Overseas

    Linear Type Juice / Tea Tin Can Filling Line With High Speed


    Quick Detail:

    Can type: New empty tin can, not avaliable to aluminum can and PET can
    Capacity: 2000 Cans / Hour
    Main material: SUS304
    Filling pressure: Negative pressure
    Suitable cans: Tin can
    Service: Engineers available to serve overseas
    Function: rinsing, filling, sealing


    Description:

    1. The tin can fillig line consists of automatic can washing machine, negative pressure filling machine, automatic capping machine and conveying system
    2. The whole line is straight and separate line.It apply to tin can filling.
    3. The machine is made of high quality SUS304 stainless steel.
    4. It is ideal selection for beverage factory due to its reasonable configuration, security of operation, dependability of running and its so convenient maintenance.


    Application:

    1. The machine is mainly used to washer the cans, fill the non carbonated drink like juice, milk, wine
    and so on to tin cans, then seal the cans for market selling.
    2. This can filling line is suitable same can diameter but different can height.With different can
    diameter, the filling line should be set with extra can change parts to share one filling line.


    Automatic can washer:
    This machine is mainly used for continuous washing for empty tin cans of similar size and shape.
    It is designed as requirement of filled drink in metal can. It is used to continuously washing three
    pieces of pop can; The machine is full automatic. It adopts the high quality of stainless steel 304
    material, meets the requirements of food grade.

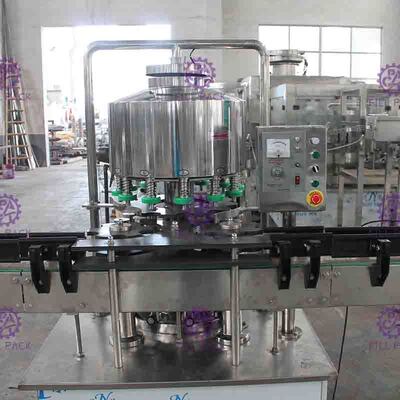

    Automatic can juice filling machine:
    This can juice filling machine is developed on the basis of digesting and absorbing advanced
    technology introducing from abroad and is with international advanced level. It is mainly used
    for filling non-gas containing drink in tin cans, such as water, juice, milk, tea and so on. The filling
    way is normal pressure. It adopts the electric magnetic speed control system and the speed can
    be regulated infinitively as customer requirements within the scope. It adopts the high quality of
    stainless steel 304 material, meets the requirements of food grade. It is full automatic and
    advanced in construction, steadily in performance, safe in operation, easy in maintenance,
    high in production efficiency. The filler is the ideal choice for drink factories of small and middle size.

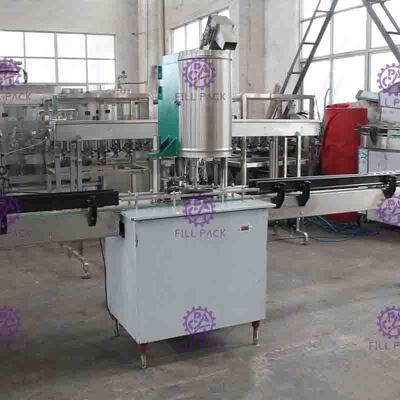

    Automatic can sealer:
    The sealer is suitable for sealing various cans, such as tin can, aluminum can, PET can. It is
    perfect in performance, reliable in operation and easy in maintenance. The machine is full
    automatic and the speed can be adjustable. It adopts the high quality of stainless steel 304
    material, meets the requirements of food grade. So it is widely used in automatic packing lines
    for various kinds of milk, juice, wine, drink, pharmacy chemicals, reagent, pesticide and so on.
    It is one of the most ideal automatic sealingequipment.
    It has the function that when with the can, the cover will fall off, without the can, the cover will not
    fall off. Also it is set with the automatic machine stop device for the faults of with can without the
    cover, without the can and cover, can stuck in feeding and coming out.


    Specifications:


    ModelCG-1
    Capacity1000-2000 Cans/H
    MaterialSUS304
    Applicable tin can diameter40-100mm
    Applicable tin can height50-300mm
    Filling pressureNegative pressure
    Power0.75KW
    Water pressure0.15Mpa
    DimensionL1900*W600*H1200mm
    Weight350kg



    Linear Type Juice / Tea Tin Can Filling Line With High Speed
