12000BPH Bottle Filling Machine Ring Type Liquid Cylinder PLC Control

12000BPH Bottle Filling Machine Ring Type Liquid Cylinder PLC Control

Product Details:

Place of Origin: Zhangjiagang, China
Brand Name: FillPack
Certification: CE / ISO9001 - 2008
Model Number: CGF40-40-12

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden case package
Delivery Time: 25 Working Days After Deposit
Payment Terms: L/C, T/T,
Supply Ability: 20Sets Per Months
Get Best Price Contact Now

Detail Information

Filling Material: Alcohol Capacity: 12000BPH
Machine Structure: Monoblock Filling Machine Control: PLC Control And Touch Screen
Bottle Type: Glass Bottle With Crown Cap Processing Type: Alcohol Filling
High Light:

liquid filler equipment

,

aseptic filling line

Product Description

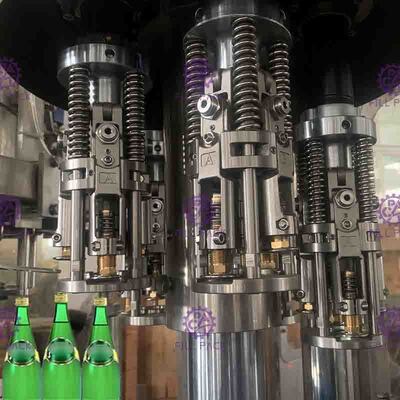

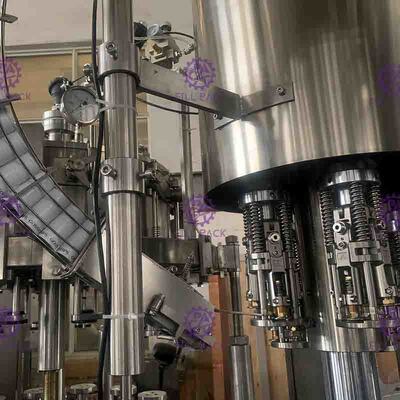

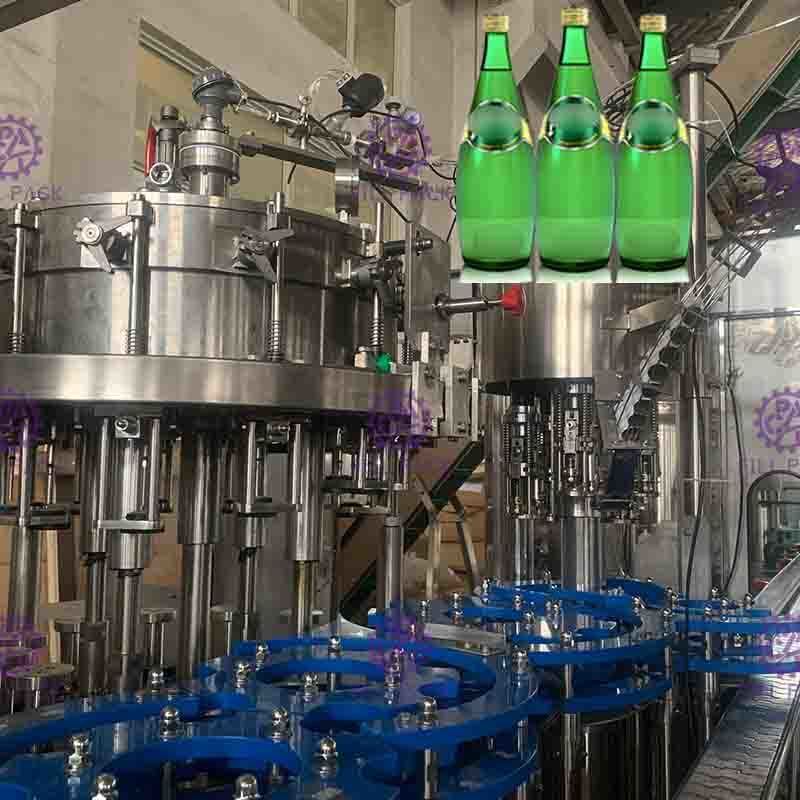

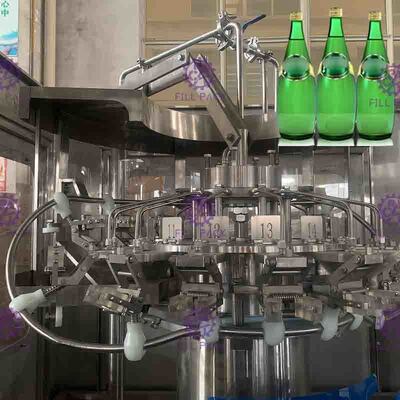

12000BPH PLC control alcohol filling machine with ring type liquid cylinder





Specifications



Machine structure: Monoblock washing-filling-capping 3 in 1 unit

Filling materials: Wine,alcohol,whisky,brandy and so on.

Bottle type: Glass bottle with crown cap





Alcohol filling machine---Descriptions



     3 in 1 Alcohol filling machine is composed of bottle-washing/filling and capping. It absorbs the foreign advanced technology as the foundation. According to our countrys beverage filling craft requirements of wine/pure water/mineral water, etc. to design and create itself with study to form one kind of national advanced level bottled production line. Mainly used in glass bottle filling production, adopt block bottle-neck technology, suit for different bottle just in one machine.





Alcohol filling machine---Running process



    Empty bottles are sent to filling machine by conveyor belt through the enter bottle screw and the enter bottle starwheel on the worktable, and pitched in the filling machine upgrade device’s bottle salver. The bottle will be raised by the bottle salver and pressed fold. During the raising process, check on whether  there are bottles on the bottle salver. If found bottles, the filling process begin, alcohol will be filled. If none, the corresponding valve will keep closing.

    After finish the filling, lower the bottle salver and the used bottles are sent to capper by transmission

star-wheel on the worktable. The bottles after capping are sent to out bottle conveyor belt by out bottle

star-wheel.





Detailed parameter



Model Washing heads Filling heads Capping heads Capacity  Power
CGF18-18-6 18 18 6 6000B/H 3.8Kw
CGF24-24-8 24 24 8 8000B/H 7.5Kw
CGF32-32-10 32 32 10 10000B/H 7.5Kw
CGF40-40-12 40 40 12 12000B/H 7.5Kw





Electrical apparatus:



PLC/ transducer/ touch screen Mitsubishi
Contactor/ air switch/ stabilized voltage supply Schneider
Photoelectricity/ proximity switch Autonics
Cylinder Airtack
Motor AB motor





Competitive Advantage:



1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only

one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project
