300BPH Semi Automatic Inner - Outer 5 Gallon Water Filling Machine Stainless Steel 304

300BPH Semi Automatic Inner - Outer 5 Gallon Water Filling Machine Stainless Steel 304

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE,ISO
Model Number: BS-1
Suitable bottle: 5 gallon bottle
Power: 1.1 kw
Driven type: Electric type
Condition: New
Guarantee time: 1 year

Payment & Shipping Terms:

Minimum Order Quantity: 1 set/pcs
Price: Negotiation
Packaging Details: Blanket cloth or wooden case as machine need
Delivery Time: 5-7days
Payment Terms: 30% T/T deposit, 70% before shipment
Supply Ability: 200 sets/month
Get Best Price Contact Now

Detail Information

Automatic Grade: Semi Automatic Processing Type: Gallon Bottle Brushing
Production Capacity: 80-300BPH Material: Full Stainless Steel 304
Power: 1.1Kw Brushes: 8pcs
High Light:

bottle filler machine

,

commercial bottling equipment

Product Description

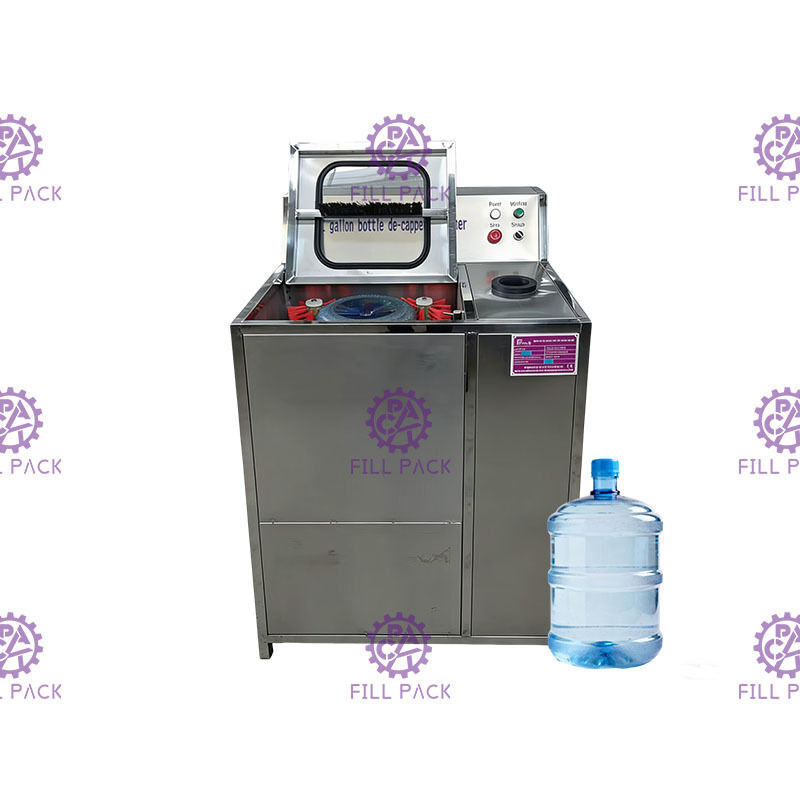

300BPH Semi automatic inner - outer 5 gallon rinser in full stainless steel 304





Quick Detail:



Capacity 80-300BPH
Suitable bottle 5 gallon bottle
Material Full stainless steel 304
Automatic grade Semi - auto type
Cap pulling head 1 head
Brushing head 1 head

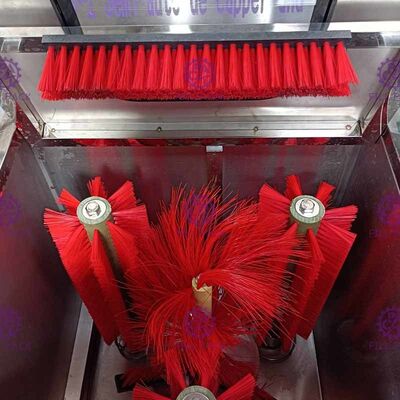

Brushes 8 pcs





Description:



    5 gallon rinser is mainly used for barreled mineral water and pure water line. It needs to push the barrels above with manual help. 5 gallon rinser has the advantages of stable capacity, good brushing effect, easy operation, easy maintenance and nice appearance. The material is made of high quality of stainless steel. 5 gallon rinser has long lifespan and is really with good quality and economic price.





Working process:

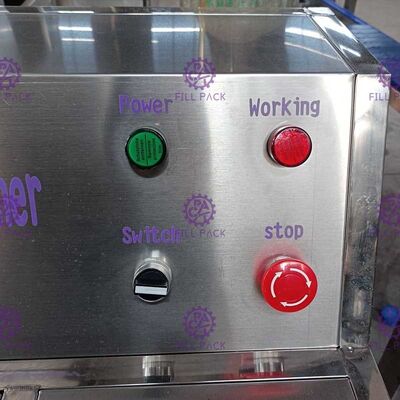

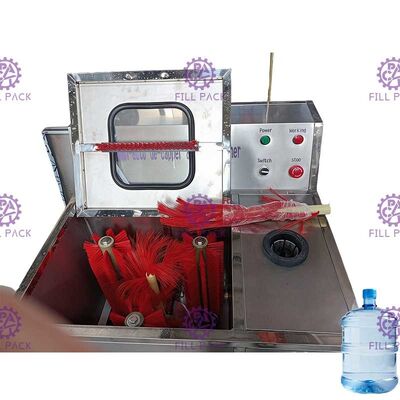

    When get through the power and air source, manual put the gallon bottle upside down into the cap puller part, like the photo, then open the machine switch, manual feet tread the switch under the floor, then the gallon cap will be remove and slip from the cap hole on the right side. Then manual put the gallon bottle upside down into the machine, click the “operation” button to have the automatically inside and outside of brushing, after a while, close the switch and take out the gallon bottle, then it’s finished. The brushing time depends on the gallon bottle state.





Specifications:



Model BS-1
Capacity 80-300 barrels / hour
Automatic type Semi auto
Pulling head 1 head
Washing head 1 head
Brusher 8 pieces
Suitable bottle 5 gallon
Motor power 1.1KW
Dimension 800*800*1200mm
Weight 110kg
