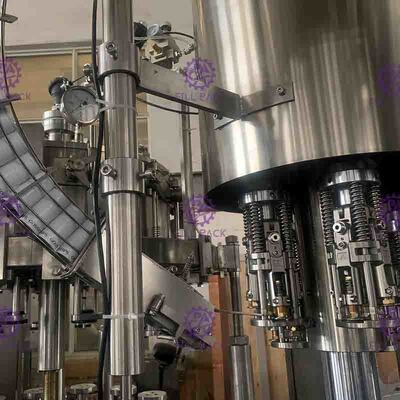

Monoblock 3 In 1 Water Bottle Filler Machine PLC Control And Touch Screen
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FillPack |
| Certification: | CE / ISO9001 - 2008 |
| Model Number: | CGF32-32-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case package |
| Delivery Time: | 25 Working Days After Deposit |
| Payment Terms: | L/C, T/T, |
| Supply Ability: | 20Sets Per Months |
|
Detail Information |
|||
| Bottle Type: | Glass Bottle With Pulling Cap | Capacity: | 10000BPH |
|---|---|---|---|
| Machine Structure: | Monoblock Filling Machine | Material: | SUS304 |
| Filling Heads: | 32 | Capping Heads: | 10 |
| Washing Heads: | 32 | Product Name: | Beverage Bottle Filler |
| High Light: | aseptic filling line,water bottling equipment |
||
Product Description

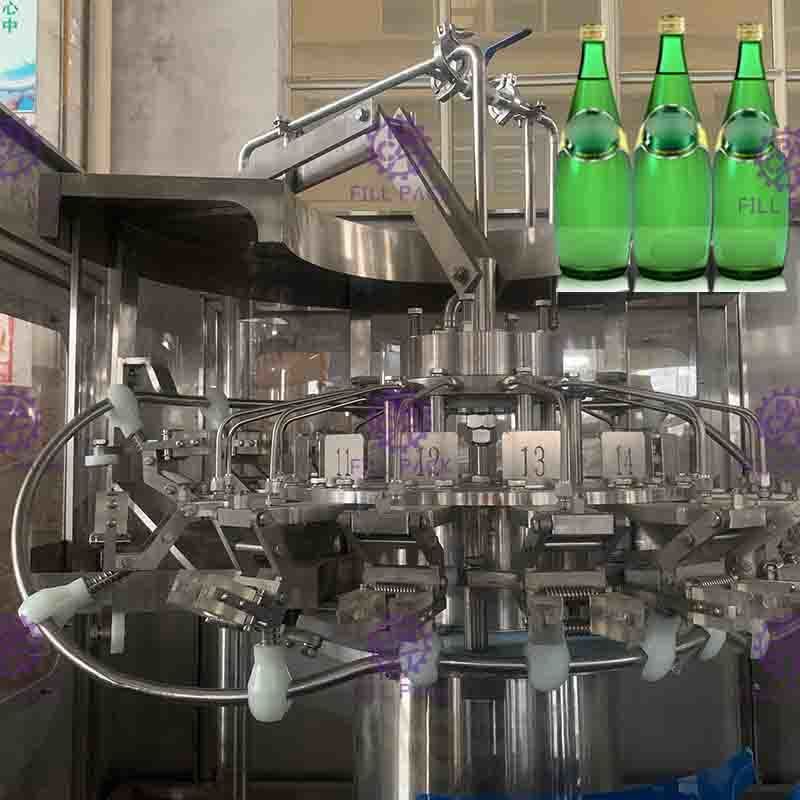

Monoblock 3 in 1 cylinder lifting type beverage bottle filler with copper ring
Beverage bottle filler---Specifications
| Bottle size | 250-1500ml |
| Capacity | 10000BPH |
| Suitable bottle | Glass bottle with pulling cap |
| Control | PLC control and touch screen |
| Certification | CE;ISO |
Beverage bottle filler---Description
This series of beverage bottle filler is mainly used for alcohol and all kinds of spirits filling and sealing in glass bottles with pulling cap, also according to customers' demands, to fill in PET bottles, which is with washing, filling and capping monoblock.Beverage bottle filler can fill with different capacities as requirements. Together with other assistant equipments used in the line for alcohol production line.
Beverage bottle filler---Features
1.Filling valve adopts high precision mechanical filling valve, with the character of no bottle no vacuum pumping.
2.Open gear combinated gear box transmission, with no-off device. Frequency conversion velocity modulation device extends the speed modulating scope
3.This machine has self oil lubrication device so that the lubrication points could be lubricated regularly in time. The machine is of high efficiency, low noise and long life.
4.Centering guide is of double guide bar type, with the function of pre-covering.
5.Wine jar and capping head are driven by manual, also can be driven by electricity to fit different sizes of bottles.
6.The material height in the tank is controlled by electric probe to assure the precise liquid level.
Beverage bottle filler---Model
|
Item |
CGFF18-18-6 |
CGFF24-24-8 |
CGFF32-32-10 |
|
Capacity |
6000bph(500ml) |
80000bph(500ml) |
10000bph(500ml) |
|
Rising heads |
18 |
24 |
32 |
|
Filling heads |
18 |
24 |
32 |
|
Capping heads |
6 |
8 |
10 |
|
Bottle Diameter |
Commonly 50-110mm (can adjustable) |
||
|
Bottle Height |
Commonly 150-340mm(can adjustable) |
||
|
BOTTLE |
Glass or Plastic bottle |
||
|
Rising pressure |
0.2-0.25Mpa |
||
|
Overall size |
2450*1800*2350 |
2780*2200*2350 |
3600*2650*2350 |
|
Weight |
3.5t |
4.5t |
5.5t |
