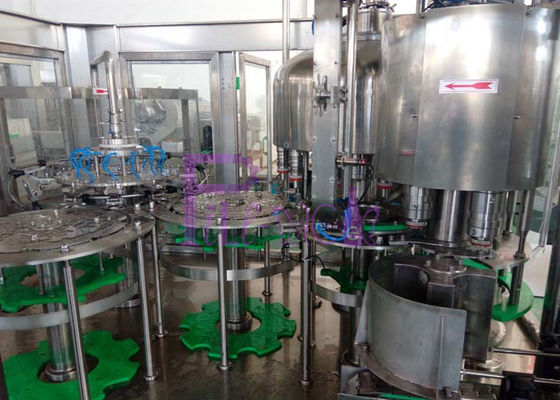

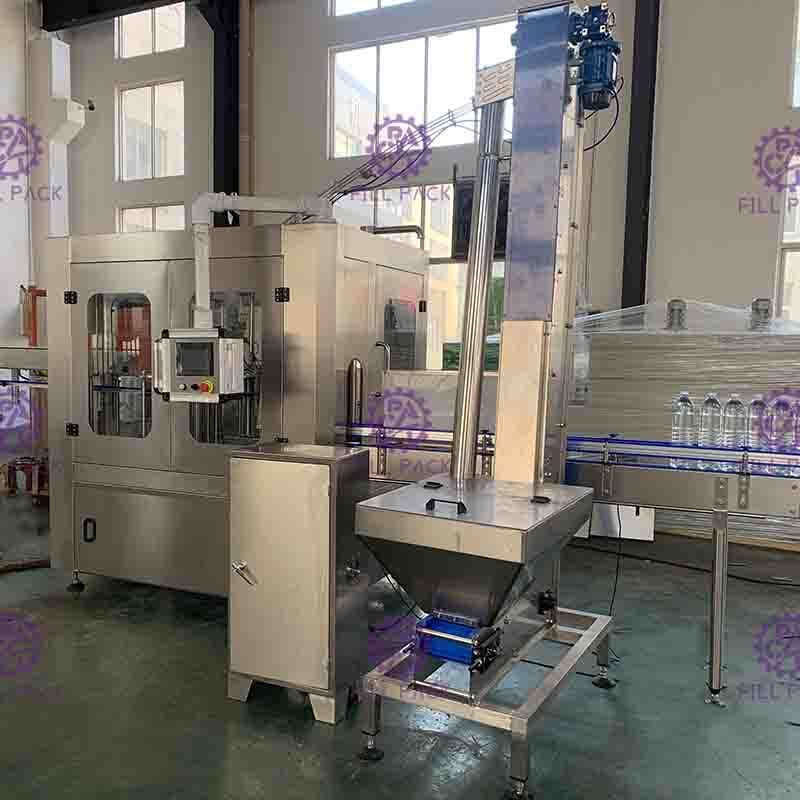

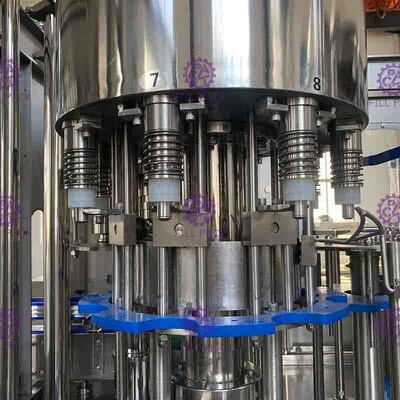

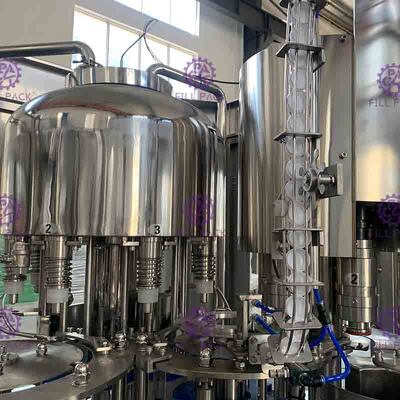

Automatic 3 in 1 PET Rotary Bottle Drinking Water Filling Machine
Product Details:
Place of Origin: | China,JiangSu,Zhangjiagang |
Brand Name: | Fillpack |
Certification: | CE & ISO & TUV & SGS |
Model Number: | CGF18-18-6 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | 12000-40000USD |
Packaging Details: | Wooden Case Package |
Delivery Time: | 30 Working Days After Receiving Your Deposit Payment |
Payment Terms: | TT & L/C |
Supply Ability: | 20 Sets Per Months |
Detail Information |
|||
Control: | PLC Control With Touch Screen | Suitable Bottle Size: | 0.3-2L PET Bottle |
---|---|---|---|
Cap Style: | Plastic Screw Cap | Capacity: | 10000-12000BPH |
Processing: | Japan & Germany | Warranty: | 1 Year For Spare Parts |
Highlight: | water production line,water filler machine |
Product Description
Automatic 3 in 1 PET Rotary Bottle Drinking Water Filling Machine
Quick Detail:
Material: Food stage stainless steel
Control: PLC & touch screen control
Capacity: 10000-15000bph
Suitable Bottle: PET bottle
Bottle Volume: 0.3-2L
Dimension: By order
Function: washing filling capping 3 in 1
Technology: Advanced
After-sales service provided: Engineers available to service machinery overseas .
Description:
1. The automatic mineral water filling machine is mainly used in mineral water production line, there are three functions integrated in one machine, they are bottle washing, mineral water filling, bottle capping. The full production processing is automatic, when the empty bottle coming through the machine, then coming out the bottled mineral water.
2. The automatic mineral water filling machine is composed by rotary washer, normal pressure filler, screw type sealer and conveying system.
3. The automatic mineral water filling machine's construction is advanced, the performance is stable. The operation and maintain are easy.
4. The speed of automatic mineral water filling machine can be adjusted infinitively and accords with the standards.
5. It is used for filling all kinds of non-carbonated water, such as still water, mineral water, flavored water, spring water.
6. The usual production capacity is in 2000-20000bph, 0.2-2L PET bottle is available.
Specifications:
Model | CGF8-8-3 | CGF12-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 |
Rinsing Head No | 8 | 12 | 18 | 24 | 32 |
Filling Head No | 8 | 12 | 18 | 24 | 32 |
Capping Head No | 3 | 6 | 6 | 8 | 10 |
Rated Capacity (500ml) |
2000BPH | 4000BPH | 7000-8000BPH | 10000-15000BPH | 15000-20000BPH |
Overall Size |
1900*1420* 2000mm |
2200*1600* 2300mm |
2450*1900* 2300mm |
2750*1180* 2400mm |
4000*2300* 2300mm |
Weight | 1.5T | 2.2T | 3.0T | 4.0T | 8.0T |
Power (KW) |
3.0kw | 3.5kw | 4.0kw | 4.8kw | 7.6kw |
Rated Voltage | Customized | Customized | Customized | Customized |
Customized |
Competitive Advantage:
1. One year warranty for the whole system
2. Free equipment installation and debugging
3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price
4. Every 3 years, we can help to overhaul the machine free (Labor)
5. We can provide internship service and help you train the operator and mechanic
6. Free production technology and process configuration
7. We can help you to design the production line, workshop and provide turn-key project
