High Speed Filling Machine
|Place of Origin:||China,JiangSu,Zhangjiagang|
|Certification:||CE & ISO & TUV & SGS|
|Control:||PLC Control With Touch Screen|
|Processing:||Japan & Germany|
|Suitable Bottle Size:||0.3-2L PET Bottle|
|Cap Style:||Plastic Screw Cap|
|Electrical Brand:||Mitsubishi, OMRON, SIEMENS|
|Warranty:||1 Year for Spare Parts|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden Case Package|
|Delivery Time:||30 Working Days After Receiving Your Deposit Payment|
|Payment Terms:||TT & L/C|
|Supply Ability:||20 Sets Per Months|
water production line,
water bottle filling machine
Name: automatic drinking water bottling machine with high speed
Material: Food stage stainless steel
Control: PLC & touch screen control
Suitable Bottle: PET bottle
Bottle Volume: 0.3-2L
Dimension: By order
Function: washing filling capping 3 in 1
After-sales service provided: Engineers available to service machinery overseas .
1. The automatic drinking water bottling machine is mainly used in drinking water production line, there are three functions integrated in one machine, they are bottle washing, drinking water filling, bottle capping. The full production processing is automatic, when the empty bottle coming through the machine, then coming out the bottled mineral water.

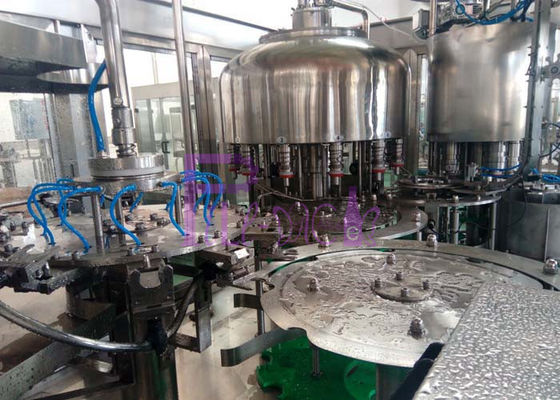

2. The automatic drinking water bottling machine is composed by rotary washer, normal pressure filler, screw type sealer and conveying system.
3. The automatic drinking water bottling machine's construction is advanced, the performance is stable. The operation and maintain are easy.
4. The speed of automatic drinking water bottling machine can be adjusted infinitively and accords with the standards.
5. It is used for filling all kinds of non-carbonated water, such as drinking water, still water, mineral water, flavored water, spring water.
6. The usual production capacity is in 2000-20000bph, 0.2-2L PET bottle is available.
|Rinsing Head No||8||12||18||24||32|
|Filling Head No||8||12||18||24||32|
|Capping Head No||3||6||6||8||10|
1. One year warranty for the whole system
2. Free equipment installation and debugging
3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price
4. Every 3 years, we can help to overhaul the machine free (Labor)
5. We can provide internship service and help you train the operator and mechanic
6. Free production technology and process configuration
7. We can help you to design the production line, workshop and provide turn-key project
Packaging & Shipping
