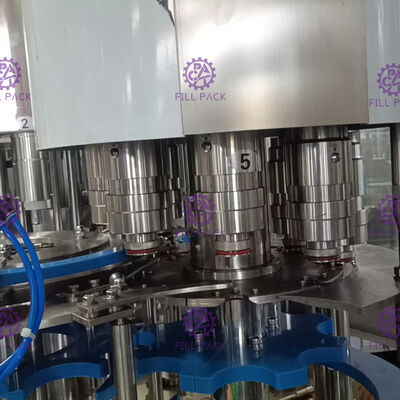

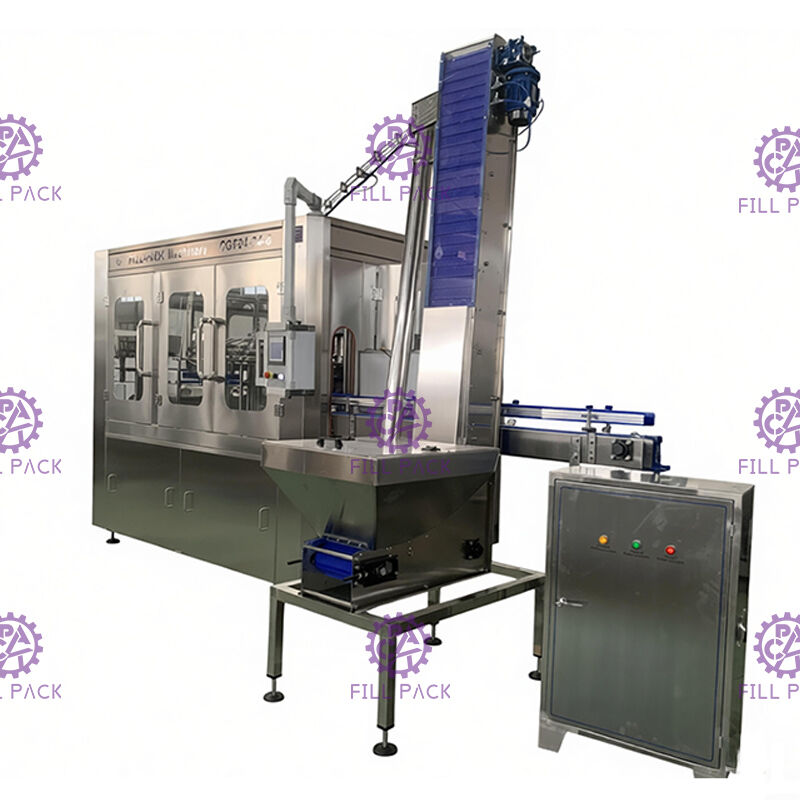

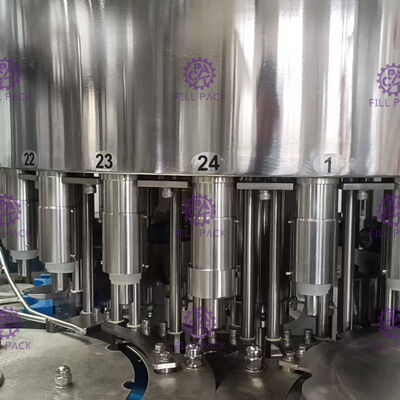

Large Image :  PLC Monoblock Filling Plant

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: Fillpack
Certification: CE & ISO & TUV & SGS
Model Number: CGF18-18-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case Package
Delivery Time: 30 Working Days After Receiving Your Deposit Payment
Payment Terms: TT & L/C
Supply Ability: 20 Sets Per Months
Contact Now
Detailed Product Description





500ml Pure Water Plastic Bottle Beverage , Drinking Water filling Plant / System





Quick Detail:



Name: 500ml Pure Water Plastic Bottle Beverage , Drinking Water filling Plant / System

Material: Food stage stainless steel
Control: PLC & touch screen control
Capacity: 10000 -15000bph
Suitable Bottle: PET bottle
Bottle Volume: 0.2-2L
Dimension: By order
Function: Washing filling capping 3 in 1
Technology: Germany & Japan
After-sales service provided: Engineers available to service machinery overseas





Description:



1. This machine is mainly applied for filling drinking water / mineral water. It combines rinsing bottle, filling and capping into one machine. The full procedure is automatics. It is suitable for PET bottle and plastic bottle to fill mineral water, pure water, if add temperature control device, even suitable for hot filling.

2. The adjustment for bottle type of each unit is fulfilled by turning handle; it is simple, easy and quick. The filling method applies new micro pressure filling so that the filling speed become more quick and stable.

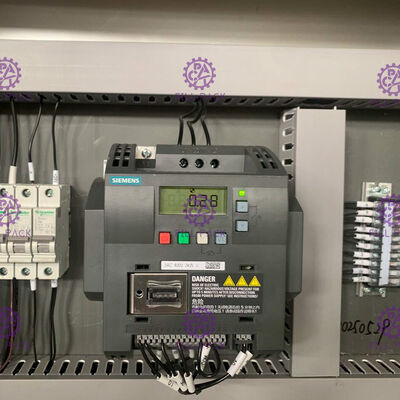

3. Compared with similar machines, it has higher yield, more benefit. The machine applies advance Mitsubishi programmable controller (PLC) to control machine’s auto-running, the input bottle chain way changes its speed by frequency converter. Cooperate more stable and reliable.

4. As each unit’s running is detected by photoelectric elements. So it has high automation and simple operation. On this basis, changing filling unit can change to low vacuum filling method and isotonic filling method. Low vacuum filling method (Z type machine) is applied for glass bottle to fill alcoholic liquor; soy etc. and the capping method can be aluminum anti-theft cap and plastic cap. The isotonic filling method (D type machine) is applied for PET bottle; plastic bottle to fill CO2 contained drinks.

5. It is the ideal top choice equipment of drinking water production enterprise.





PLC Monoblock Filling Plant





Specifications:



Model CGF8-8-3 CGF12-12-6 CGF18-18-6 CGF24-24-8 CGF32-32-10
Rinsing Head No 8 12 18 24 32
Filling Head No 8 12 18 24 32
Capping Head No 3 6 6 8 10

Rated

Capacity

(500ml)

2000BPH 4000BPH 7000-8000BPH 10000-15000BPH 15000-20000BPH
Overall Size 1900*1420* 2000mm

2200*1600*

2300mm

2450*1900*

2300mm

2750*1180*

2400mm

4000*2300*

2300mm

Weight 1.5T 2.2T 3.0T 4.0T 8.0T
Power(KW) 3.0kw 3.5kw 4.0kw 4.8kw 7.6kw
Rated Voltage Customized Customized Customized Customized Customized





Competitive Advantage:



1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project





Market Distribution:



Market Revenue(Previous Year) Total Revenue (%)
Africa confidential 40%
Middle east confidential 15%
America confidential 5%
Euro confidential 4%
Middle Aisa confidential 3%
South-east Asia confidential 3%
Domestic confidential 30%





Company description



    Zhangjiagang city Yufeng beverage machinery Co.,Ltd. is a manufacturer enterprise specializing in producing beverage packing equipment and various water treatment equipment. The company has not only gained over ten year’s producing experience but also incorporated advanced technology from home and abroad. So we have won high reputation among our customers domestic and abroad.



    At present we produce: production lines for mineral water, pure water, fruit juice, tea drink, milk drink and carbonated drink with capacity 1000-20000bottles/hour, production lines for vinegar, soy sauce and wine, 3-5gallon barreled water with capacity 80-120 barrels per hour and various water treatment plant.



    Honesty, Sincerity, and good faith" is our spirit, while "High technology, high quality, and high level" is what we look for. We try our best to satisfy our customers' needs with our good after-sales service. We would like to cooperate with our friends and develop together. All friends from at home and abroad are warmly welcomed to visit us.
