Fruit Juice Processing Equipment

Fruit Juice Processing Equipment

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: Fillpack
Certification: CE & ISO & TUV & SGS
Model Number: RCGF18-18-6
Color: Silver Gray
Control: PLC Control With Touch Screen
Processing: Japan & Germany
Suitable Bottle Size: 0.3-2L PET Bottle
Cap Style: Plastic Screw Cap
Capacity: 6000-8000BPH
Electrical Brand: Mitsubishi, OMRON, SIEMENS
Warranty: 1 Year for Spare Parts

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case Package
Delivery Time: 30 Working Days After Receiving Your Deposit Payment
Payment Terms: TT & L/C
Supply Ability: 20 sets/month
Get Best Price Contact Now

Detail Information

Highlight:

aseptic filling machine

,

beverage filling machine

Product Description

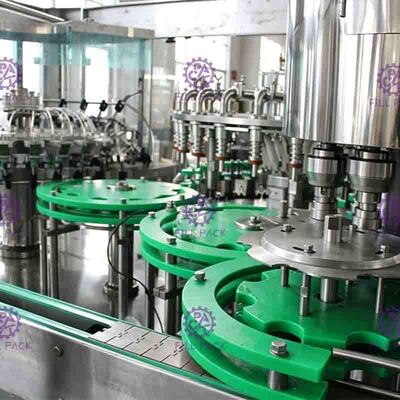

Automatic Orange Pulp Juice Hot Filling Machine For PET Bottle / PLC Control





Quick Detail:



Name: Automatic Orange Pulp Juice Hot Filling Machine For PET Bottle / PLC Control

Material: Food stage stainless steel
Control: PLC & touch screen control
Capacity: 6000-8000bph
Suitable Bottle: PET bottle
Bottle Volume: 0.3-2L
Dimension: By order
Function: Washing filling capping 3 in 1
Technology: Germany & Japan
After sales service provided: Engineers available to service machinery overseas .





Description:



1. This automatic oange pulp juice hot filling machine for PET bottle is designed for granule juice packed in plastic bottles or glass bottles. It is full automatic with PLC control and touch screen, set with air conveyor and bottle conveyor for better operation.

2. It mainly contains the five parts clean water washing, sterilized water washing, pure water washing, granule and juice filling, bottle capping. So it is different from normal 3 in 1 filling machine, the three different washing part ensure the cleanliness of the plastic bottle, after sterilize the bottle, we can fill the fruit juice safely, without the worry of the bacteria will make the juice get bad. After filling, then come to the capping part, the high speed capper will ensure the cap capped on the bottle stable.

3. The speed is adjustable and with high filling speed. There is a motor mixer on the liquid filling tank for mix the juice and granule uniform, for best filling effect. The machine is all made of high quality of SUS304 material, meets with the GMP requirements. It's your best choice for high speed of bottle granule juice.





Specifications:



Model RCGF12-12-4 RCGF18-18-6 RCGF24-24-8 RCGF32-32-10 RCGF40-40-12
Production(B/H)(500ml) 4000-5000 6000-8000 8000-12000 12000-15000 16000-20000
Bottle standard Neck: φ50-100mm; Height: 150-320mm
Water pressure of washing bottle 0.18-0.25Mpa
Water consumption for washing bottle(kg/h) 1300 2000 3000 4000 5000
Spraying position 4 7 10 14 18
Dripping bottle position 3 5 8 10 15
Filing precision +5MM
Gas source pressure 0.4Mpa

Gas consumption

(m³/min)

0.3 0.4 0.5 0.7 0.8
Total power(kw) 4.2 4.5 5 6.2 7.8
Total weight(T) 2 2.5 3 4 6
Dimension (L*W*H)(mm) 2100*1600*2100 2500*1750*2100 2700*2100*2100 3500*2100*2100 3800*2200*2200





Fruit Juice Processing Equipment 0





Competitive Advantage:



1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project





Market Distribution:



Market Revenue(Previous Year) Total Revenue (%)
Africa confidential 40%
Middle east confidential 15%
America confidential 5%
Euro confidential 4%
Middle Aisa confidential 3%
South-east Asia confidential 3%
Domestic confidential 30%





Company description



    Zhangjiagang city Yufeng beverage machinery Co.,Ltd. is a manufacturer enterprise specializing in producing beverage packing equipment and various water treatment equipment. The company has not only gained over ten year’s producing experience but also incorporated advanced technology from home and abroad. So we have won high reputation among our customers domestic and abroad.



    At present we produce: production lines for mineral water, pure water, fruit juice, tea drink, milk drink and carbonated drink with capacity 1000-20000bottles/hour, production lines for vinegar, soy sauce and wine, 3-5gallon barreled water with capacity 80-120 barrels per hour and various water treatment plant.



    Honesty, Sincerity, and good faith" is our spirit, while "High technology, high quality, and high level" is what we look for. We try our best to satisfy our customers' needs with our good after-sales service. We would like to cooperate with our friends and develop together. All friends from at home and abroad are warmly welcomed to visit us.





Our workshop



Fruit Juice Processing Equipment 1





Packaging & Shipping



Fruit Juice Processing Equipment 2
