Auto Beverage Bottle Filling Machine

Good quality Drinking Water Filling Plant for sales
Good quality Drinking Water Filling Plant for sales
The Filling Machine is Completely Good Quality,Juice Filling Line Working Well

—— Alex

I'm Online Chat Now

Auto Beverage Bottle Filling Machine

China Auto Beverage Bottle Filling Machine supplier
Auto Beverage Bottle Filling Machine supplier Auto Beverage Bottle Filling Machine supplier Auto Beverage Bottle Filling Machine supplier Auto Beverage Bottle Filling Machine supplier Auto Beverage Bottle Filling Machine supplier

Large Image :  Auto Beverage Bottle Filling Machine

Product Details:

Place of Origin: Zhangjiagang, China
Brand Name: Fillpack
Certification: CE / ISO9001 - 2008
Model Number: CGF
Condition: New
Application: PET bottle water
Automation: Automatic
Suitable Bottle Size: 0.2-2L PET Bottle
Fuction: linear washing filling capping line
Capacity: 2000-12000BPH
Warranty: 1 Year for Spare Parts
Service: Technician avaliable overseas

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Sea worthy Package
Delivery Time: 20 Working Days After Deposit
Payment Terms: TT & L/C
Supply Ability: 50 Sets Per Months
Contact Now
Detailed Product Description

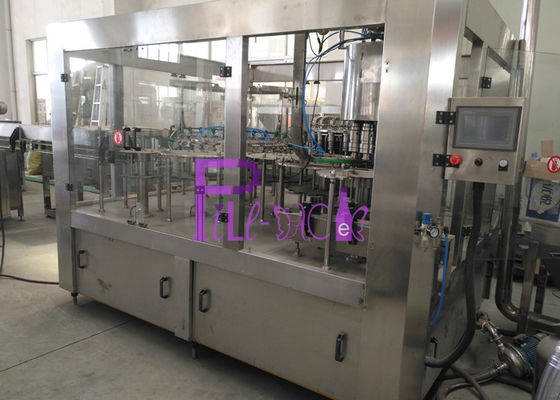

3 In 1 Monoblock Bottle Filling Machine With Capacity 8000BPH





Quick Detail:



Machine structure: 3 in 1 filling machine

Capacity: 8000BPH

Filling type: Normal pressure filling

Bottle type: 0.2-2L plastic bottle

Cap type: plastic screw caps

Filling material: Mineral water

Operation manner: Auto / Manual





Description:



The bottle filling machine is monoblock filling machine which integrate washing, filling and capping machine in one unit. It is used to fill pure water, mineral water, and other non-carbonated water into plastics bottles. The bottles can be various, but the bottle mouth must be the same so that they can be used in one machine.





Features:



- Integrate washing - filling - capping in one unit

- PLC controal; all electric parts are well known brand

- Different shapes of plastic bottles can be used in one machine

- Two operation manners: auto and manual

- The machine can be custimize according to client's real capacity, bottles, and caps





Specifications:



Model CGF8-8-3 CGF12-12-4 CGF18-18-6 CGF24-24-8 CGF32-32-10
Washing Head No 8 12 18 24 32
Filling Head No 8 12 18 24 32
Capping Head No 3 4 6 8 10

Rated

Capacity

(500ml)

3000BPH 4000BPH 5000-7000BPH 8000-12000BPH 12000-15000BPH
Overall Size

1900*1420*

2000mm

2200*1600*

2300mm

2450*1900*

2300mm

2750*1180*

2400mm

4000*2300*

2300mm

Weight 1.5T 2.2T 3.0T 4.0T 8.0T

Power

(KW)

3.0kw 3.5kw 4.0kw 4.8kw 7.6kw
Rated Voltage Customized Customized Customized Customized Customized





Auto Beverage Bottle Filling Machine





Competitive Advantage:



1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project





Market Distribution:



Market Revenue(Previous Year) Total Revenue (%)
Africa confidential 40%
Middle east confidential 15%
America confidential 5%
Euro confidential 4%
Middle Aisa confidential 3%
South-east Asia confidential 3%
Domestic confidential 30%

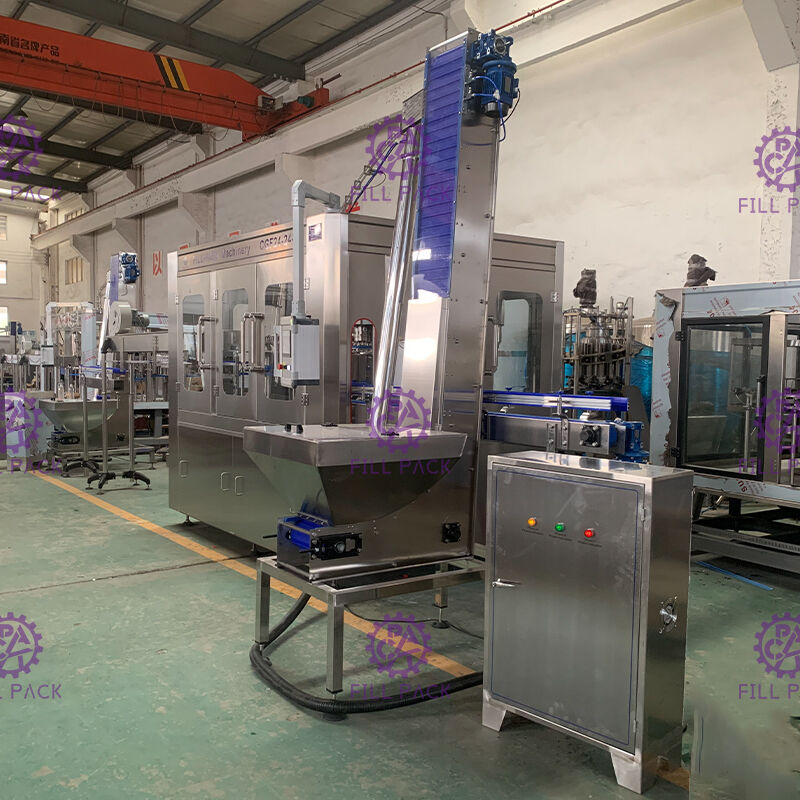

Our workshop
