Linear Filling Machine

Linear Filling Machine

Product Details:

Place of Origin: ZhangJiaGang City, JiangSu Province, China
Brand Name: Fillpack
Certification: CE, ISO
Model Number: DG-12
Application: Food and beverage production line
Applicable can: Aluminum can or PET can with carbonated drink
Washing material: Balanced pressure
Power: 1.5 KW
Material: SUS304
Driven Type: Electric
Condition State: New
Service: Engineer available to oversea service
Guarantee Time: 1 Year

Payment & Shipping Terms:

Minimum Order Quantity: 1 set/pcs
Price: Negotiation
Packaging Details: Blanket cloth or wooden case pacakge
Delivery Time: 20-25 days
Payment Terms: 30% T/T deposit, 70% before shipment
Supply Ability: 30 sets/month
Get Best Price Contact Now

Detail Information

High Light:

bottling filling machine

,

aerosol can filling machine

Product Description

Linear Sparkling Water Can Filling Line - Aluminum Can Filling Machine





Quick Detail:



1. Material:SUS304

2. For filling sparkling water, carbonated drink

3. Avaliable to aluminum can or PET can diamater from 40-120mm

4. Capacity: 1000-2000 Cans/Hour speed adjustable

5. Filling pressure: Balanced pressure

5. Can filling line: Can rinser + can filler + can selaer.





Description:



This aluminum can filling machine is used to fill sparkling water, carbonated drink, beer in PET can or aluminum can, all the main material is high quality of SUS304 material, it adopts the special balanced pressure filling valves, has good filling precision and filling stability. The machine speed is controlled by the electromagnetic speed-regulator; The machine is suitable for same size can diameter and different can height, if with different can diameter, then it needs to set with extra can change parts to share the machine.



Principle:

Cans go through conveyor to filler, the dia plate will turn the cans to can stands, with the motor driven energy, the can stands go up and forward along the principal axis; When the cans go through gas valve opening position, the trigger on liquid tank will open the valve, at the mean time the bottle mouth will be pressed closely to filling valve head, and the CO2 gas will be put into the bottles, when the pressure inside bottle is same as in liquid tank, the filling valve will be started to fill and filling finish when filling head apart from can mouth, and then can was sent out the machines. The speed control is by motor speed. Whole machine is made by SUS304.The filling head is spring type, no dead angel, no dripping.



Construction: SUS frames+ liquid tank + filling heads + can transmission system+ conveyor rail





Specifications:

Model DG-12
Capacity 1000-2000 Cans/H(500ml)
Material SUS304
Filling pressure Balanced pressure
Applicable tin can diameter 40-120mm
Applicable tin can height 50-180mm
Speed of belt: controlled by motor, adjustable
Power 1.5 KW
Water pressure 0.15Mpa
Dimension L1100*W1000*H1800mm
Weight 500kg

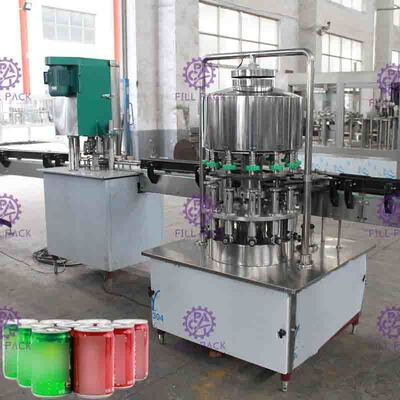

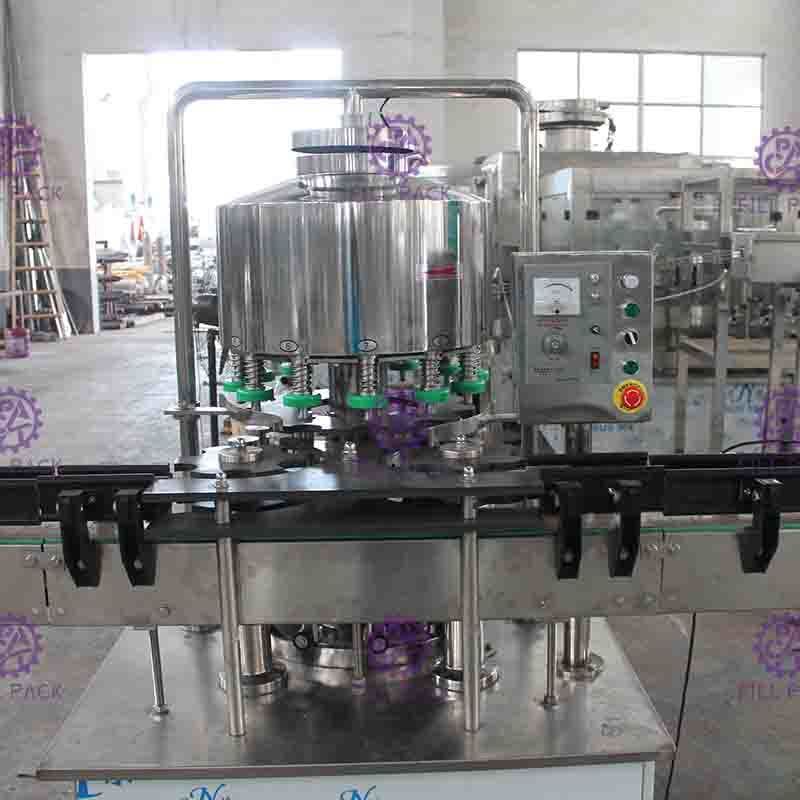

Automatic aluminum can filler for carbonated drink: (12 heads)

Linear Filling Machine 0

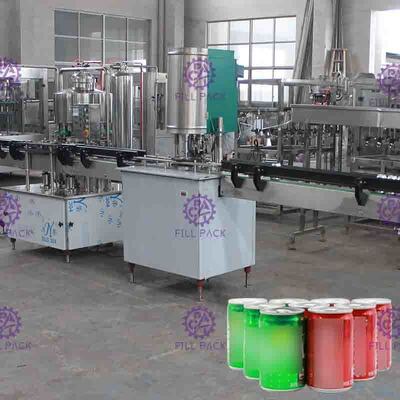

Automatic carbonated drink aluminum can filling line:  (1000-2000 Cans/Hour)

Linear Filling Machine 1



Automatic aluminum can sealer: (1 head)

Linear Filling Machine 2





Our workshop



Linear Filling Machine 3





Packaging & Shipping



Linear Filling Machine 4
