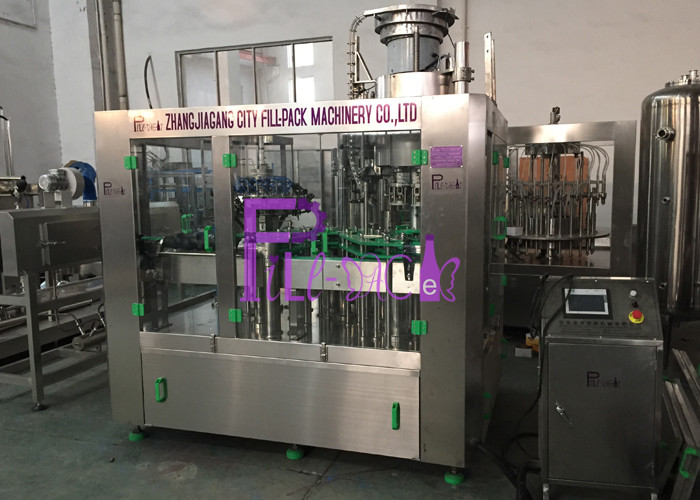

Carbonated Drink Bottle Filler Machine

Carbonated Drink Bottle Filler Machine

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: Fillpack
Certification: CE,ISO
Model Number: BCGF24-24-8
Automatic grade: Automatic with PLC touch screen
Power: 3.5 kw
Driven type: Electric
Certification: CE, ISO
Gurantee time: 1 year
Condition: New
Voltage: Customised or 380V, 50HZ, 3Phase

Payment & Shipping Terms:

Minimum Order Quantity: 1 set/pcs
Price: Negotiation
Packaging Details: Blanket cloth or wooden case as machine need
Delivery Time: 25-30 days
Payment Terms: 30% T/T deposit, 70% before shipment
Supply Ability: 30 sets/month
Get Best Price Contact Now

Detail Information

High Light:

beer bottling equipment

,

aerosol filling machine

Product Description



BCGF24-24-8 750ml Bottle Beer Filling Machine With Automatic PLC control





Quick Detail:



1. Capacity: 4000-5000B/H

2. For fillng beer in glass bottle - crown cap

3. 24 washer heads, 24 filler heads, 8 sealer heads

4. Monoblock machine

5. Adopts the vacuum pump for pumping to guarantee the filling flavor and stock time





Description:



1. The beer filling machine is used in production of beer drink packed in glass bottles with crown cap.

    Washing, filling and sealing parts are integrated in one machine, 3 in 1 type.



2. Bottle washing part:

   Spring cramps are used in the bottle washing process.

   The empty bottles can be turned over 180~ along the conveying rail.

   There are two times of internal and external washing, the efficiency of bottle washing is high.



3. Bottle filling part:

  The beer filling machine is designed with advanced technology.

  The high quality of NanQing beer filling valve is adopted for filling the beer, with fast filling speed,

   high filling precision, stable filling function, long life span to guarantee the quality.

  The amount of liquid is accurately controlled and the dropping and leakage are avoided.



4. Bottle sealing part:

  The crown cap pressing system is used for crown cap sealing. It is with automatic cap sorter,

   cap loader, and cap sealing pressing head.



5. This set machine is not set with automatic cap lifter, manual put the caps into the cap sorter, then machine will sort it automatically.





Applications:



It's used to filling beer in glass bottle - crown cap, with bottle washing, filling, sealing machine.

Widely used in every beer factory, beer production line.





Specifications:



Model BCGF24-24-8
Production Capacity 4000-5000b/h (500ml)
Filling head 24
Work principle Balanced pressure
Filling valve Special beer filling valve
Automatic type Automatic
Material SUS304
Bottle standard Glass bottle - crown cap
Applicable bottle diameter 40 -100mm
Applicable bottle height 120 -320mm
Standard PLC touch screen
Power 3.5 kw
Overall Dimensions 2700×2000×2400 mm
Weight 4000kg





























































Competitive Advantage:



1. Our machine is with good quality and price, we can make the machine customized for you if need.

2. Our company has been established more than 15 years, we are a professional manufacturer in every kind of beverage production machine.

3. We have the certifications of ISO, CE and so on.

4. Our company machines are exported to many countries abroad every year.

5. We can offer free technician support and consultation to help you to order a new equipment and start a new company.

6. We can offer one year guarantee for the machine you ordered freely, forever technology supports in our machine and related machine.

7. W can send our technician to your country for machine commissioning and instruction conveniently.

8. Your inquiry will be replied within 24 hours, you are welcome to contact me in your convenience, please feel free to contact me if any question you have.





BCGF24-24-8 750ml Bottle Beer Filling Machine With Automatic PLC control



Carbonated Drink Bottle Filler Machine 0

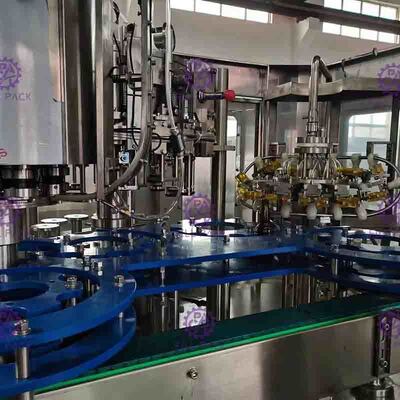

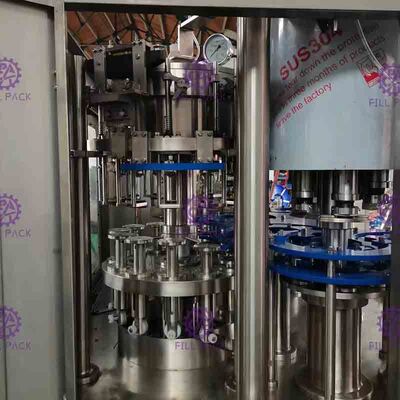

3 in 1 Bottle Washer Filler Sealer Part:

Carbonated Drink Bottle Filler Machine 1



Compressed air pipe, CO2 pipe, and vacuum pump:

Carbonated Drink Bottle Filler Machine 2

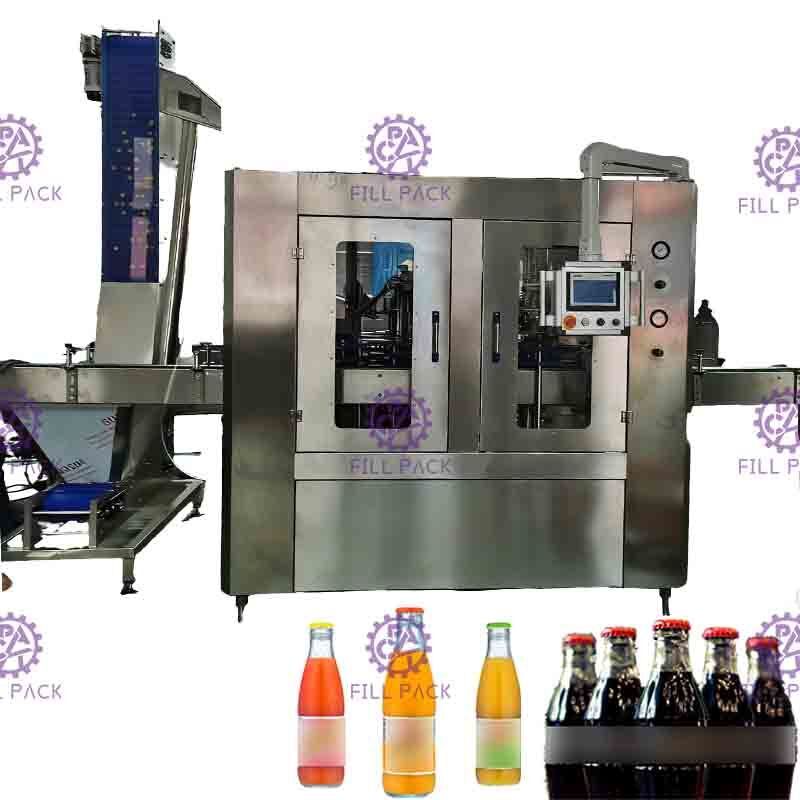

Glass Bottle - Crown Cap

Carbonated Drink Bottle Filler Machine 3



Our workshop



Carbonated Drink Bottle Filler Machine 4





Packaging & Shipping



Carbonated Drink Bottle Filler Machine 5
