Product Details:

Place of Origin: ZhangJiaGang JiangSu China
Brand Name: FILL PACK
Certification: CE, ISO9001
Model Number: QGF-120

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD $40000-$60000/set
Packaging Details: Blanket cloth or wooden case
Delivery Time: 15-20working days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 20 sets/month
Get Best Price Contact Now

Detail Information

Bottle Size: 5 Gallon Bottle Capacity: 120BPH
Weight: 680kg Control: PLC
Sutabel Bottle: 5 Gallon Bottle Dimension(L*W*H): 4500*1600*2400mm
Automatic Grade: Automatic Power: 1.38kw
High Light:

automatic filling machine


commercial bottling equipment

Product Description

Description of our 120BPH 5 gallon filling line


How to find a suitable 5 Gallon filling line?

1. The gallon barrels used are all new gallon barrels? Or recycled old barrels? If it's new, do you need a bottle blow molding machine?
2. Do the gallon barrels have a handle? And wha's the shape is it?Is the cover press-cap or screw-cap?
3. The volume of barrel is 3 gallons or 5 gallons ?
4. The capcity of the gallon filler? How many barrels are produced per hour? How many barrels are produced per hour?We can provide 120BPH-2000BPH.
5. Is the cover press-cap or screw-cap?

6.You only need a gallon filler, or would you like to have a complete line containing the packaging part?
7. Do you need additional spare parts for vulnerable parts?
8. Are there any brand or other requirements for the electrical parts of the machine?
9. Does the gallon filler(more than 300 bottles) require special matching machines, such as bottle bag packing machine or gallon palletizer?


18.9L - 20L stainless steel Full automatic 5 gallon filling line
Name of machine
Semi-auto de-capper and washer with full SUS304
Gallon water Washer/Filler/Capper unit
Light checker
Roller conveyor
2 meter


Semi-auto de-capper and washer:

    Worker put used jar in right side of de-capper position, with the neck inserting into the hole, worker foot press pedal to release cap off neck; And then worker need to take the jar to insert into left side of the machine-washing position. After the jar putting in, the window need to be closed.      Then the washer will be started by itself. During washing, the inner brush inside jar and Washing time is pre-settled, the machine will stop when time finish. Heating function could be switched on/ off as client's needing.

1.12KW without heating, 2.12KW with heating

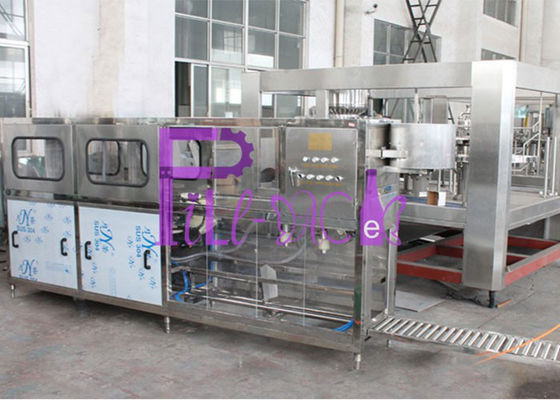

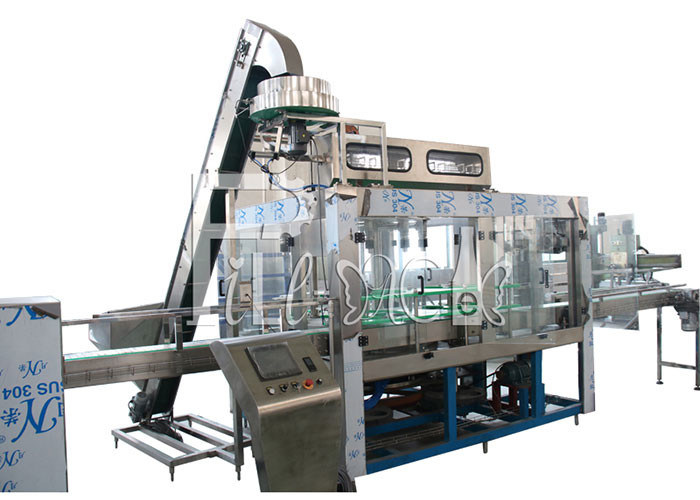

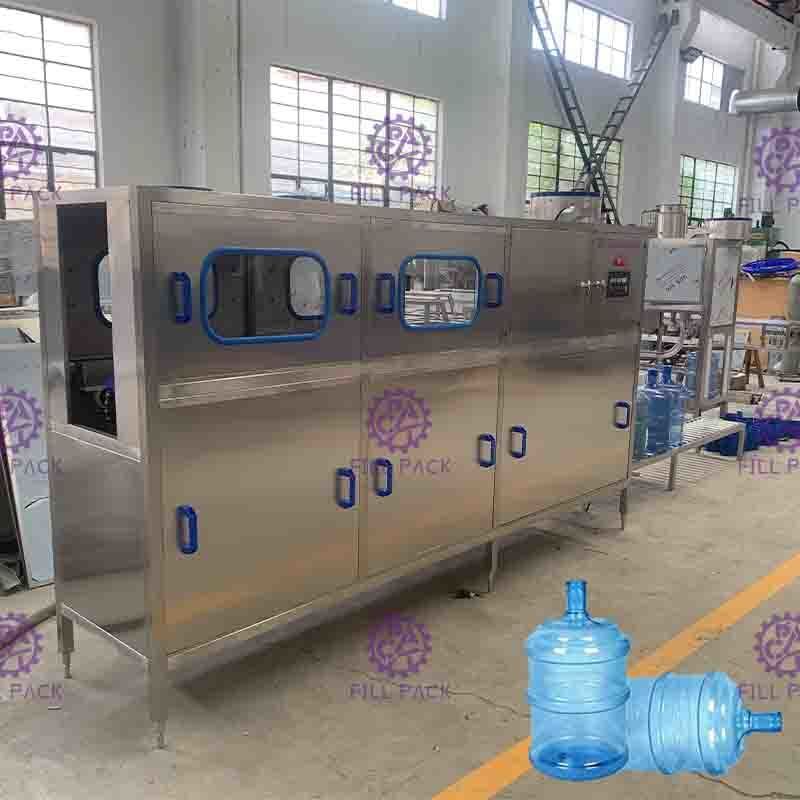

Gallon water Washer-filler-capper:

    This 5 Gallon filling line is integrated with jar washing-filling-capping functions together;

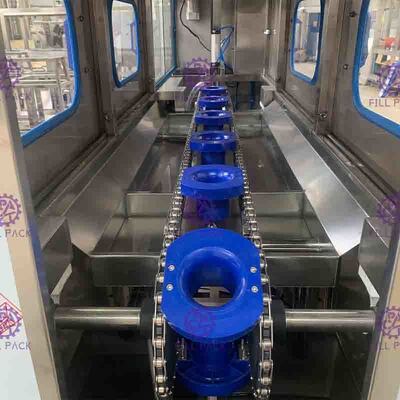

    Worker loads empty jar on jar holder manually, the jar holder with jar will be transferred in advance for jar washing, the transmission force is by gear cylinder;
   Washing will be devided into 2 parts, 1st process is by disinfectant fluid, 2nd process is by pure water;After washing, the jars will be falling down on angle plate from jar holder by transmission chain with gravity force; Then the jars will be pushed by pushing cylinder to under filling head, then filling start; Filling volume can be controlled by filling time set up. The filled jars will be pushed to under capping head by empty jars afterwards.         Worker put lot of disordered caps into cap loader, cap loader will sort cap automatically to load down into cap rail. When filled bottles passing under capping head, cap will fall down onto jar neck, then capping cylinder will do the capping automatically by cap pressing cylinder.

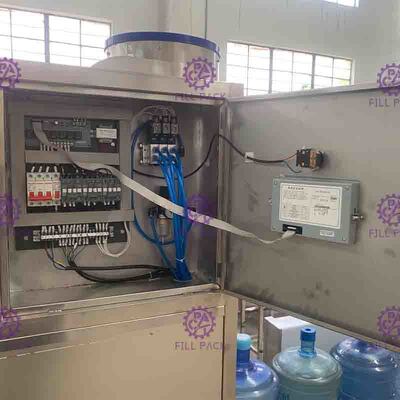

The whole 5 Gallon filling line is controlled by PLC system, all cylinder travel is calculated in advance for driven distance; The 5 Gallon filling line can work under automatic model, manual model is for machine checking;

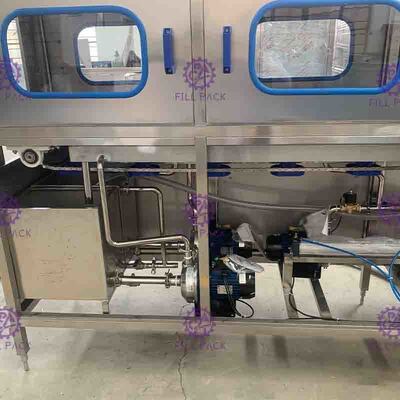

Rinsing pump 1
Rinsing pump 2
Filling pump
Cap sorting motor
3100*570*1450mm (cap loader at side)/2700*570*1720mm (cap loader at top)
+ 2000mm conveyor


3 / 5 gallon / 20L bottle water filling equipment / plant / machine / system / line

3 / 5 Gallon / 20L Bottle Water Filling Equipment / Plant / Machine / System / Line 0

3 / 5 Gallon / 20L Bottle Water Filling Equipment / Plant / Machine / System / Line 1

Handheld Inkjet printer:
Shape features stainless steel casing/black aluminum shell and color touch screen
Printing direction adjusted within 360 degree, meet all kinds of production needs
Character type high-definition printing character, dot matrix font, Simplified, Traditional Chinese and English
Printing pictures all kinds of logo, pictures can be uploaded through USB disk
Printing accuracy 600DPI
Printing line 1-8 lines (adjustable)
Printing height 1.2mm-12.7mm
Printing distance 1-10mm Mechanical Adjustment (the best distance between the nozzle and printed object is 2-5mm)
Storage the system can store more than 1000 mass (external USB make the information transfer in a free way)
