12 Heads Linear Rotary Can Filling Machine by buttons control
Product Details:
| Place of Origin: | ZhangJiaGang City, JiangSu Province, China |
| Brand Name: | FillPack |
| Certification: | CE, ISO |
| Model Number: | CYG--12 |
| Application: | Food and beverage production line |
|---|---|
| Applicable can: | Juice, milk, tea non-carbonated drink |
| Washing material: | Normal pressure |
| Power: | 1.5 KW |
| Material: | SUS304 |
| Driven Type: | Electric |
| Condition State: | New |
| Service: | Engineer available to oversea service |
| Guarantee Time: | 1 Year |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set/pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Blanket cloth or wooden case pacakge |
| Delivery Time: | 15-20 days |
| Payment Terms: | 30% T/T deposit, 70% before shipment |
| Supply Ability: | 50 sets/month |
|
Detail Information |
|||
| Automatic Type: | Automatic With Electromagnetic Speed Regulator | Can Height: | 60mm-180mm |
|---|---|---|---|
| Can Neck: | 40-120mm | Model: | CYG-12 |
| Capacity: | 1000-2000 Cans/H | Motor Power: | 1.5KW |
| High Light: | bottling filling machine,aerosol can filling machine |
||
Product Description

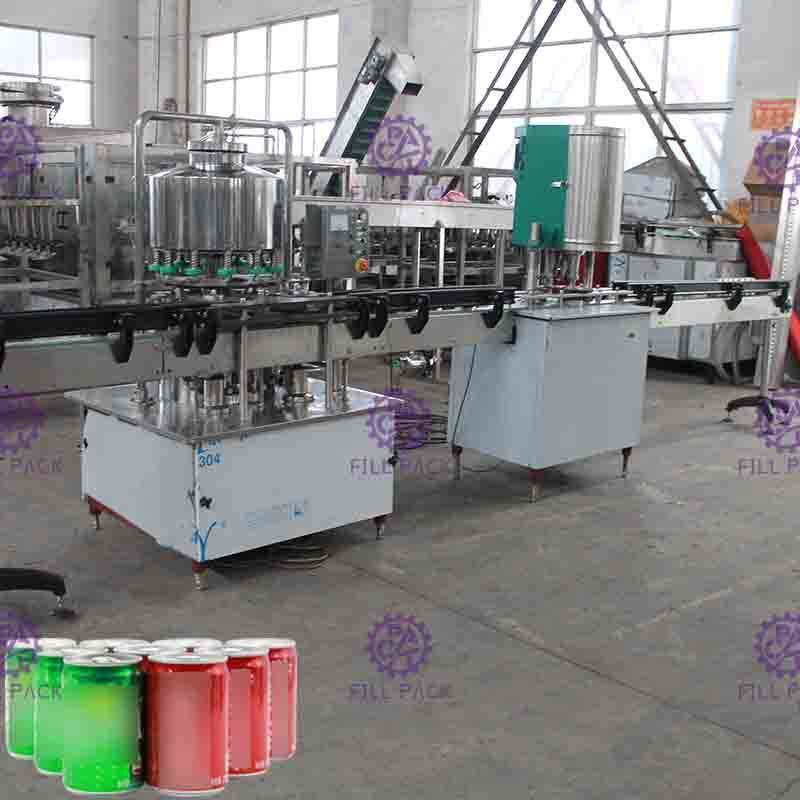

12 Heads Linear Rotary Can Filling Machine For Juice / Milk / Tea Drink
Quick Detail:
1. For filling juice, milk, tea non carbonated drink in tin can
2. Capacity: 1000-2000 Cans / Hour adjustable
3. Automatic with speed adjustable
3. Main material: SUS304
4. Filling pressure: Normal pressure
5. Filling type: Linear rotary filling machine with 12 filling heads, connect the can washer, can sealer for production line.
6. One machine is suitable for same bottle diamater different can height without any can change parts.
If with different can diamater, then it needs to set with extra change parts to share the machines.
Description:
This juice tin can filling machine is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for filling non-gas containing drink in tin cans, such as water, juice, milk, tea and so on. The filling way is normal pressure. It adopts the electric magnetic speed control system and the speed can be regulated infinitively as customer requirements within the scope. It adopts the high quality of stainless steel 304 material, meets the requirements of food grade. It is full automatic and advanced in construction, steadily in performance, safe in operation, easy in maintenance, high in production efficiency. The filler is the ideal choice for drink factories of small and middle size.
Working process:

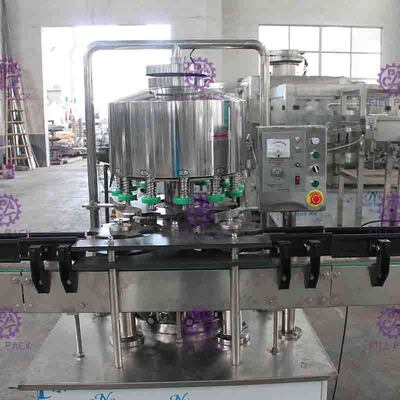

After turning on the chain conveyor and switch of can filling machine, cans after washing come through the chain conveyor to the can filler, when can face to the filling position, it run into the rotary cam and rasied by the cam to the filling mouth, the filling valve goes into the can, then filling machine inducts the can and filling the juice. After turning a round and filling juice reaches a level, cans will go down by cam falling, and go out through the outing wheel, at last they will be conveyed to the can sealer by the chain conveyor.
Components:

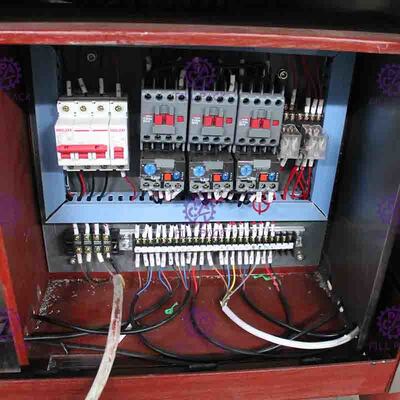

Machine frame, machine base, sealing door, filling hydraulic cylinder, electric magnetic speed control system, liquid pipe, one speed regulator motor, one liquid pump, one set can feed and coming out wheel, one set conveyor track and chain conveyor, 18 pieces filling valve
Specifications:
| Model | CYG-12 |
| Capacity | 1000-2000 Cans/H |
| Filling way | Normal pressure |
| Material | SUS304 |
| Filling heads | 12 heads |
| Automatic type | Automatic with electromagnetic speed regulator |
| Can neck | 40-120mm |
| Can height | 60mm-180mm |
| Motor power | 1.5KW |
| Dimension | L1300*W1100*H1800mm |
| Weight | 450kg |
For more details, please feel free to contact me, hilary.
