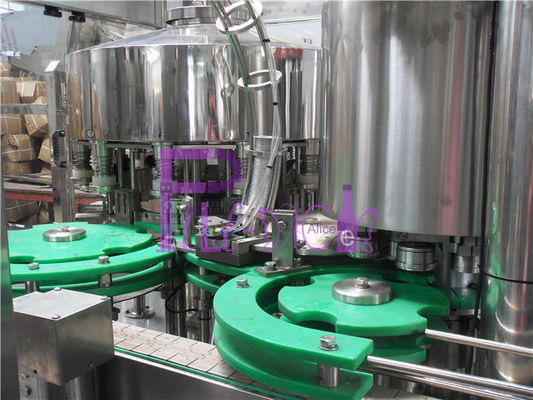

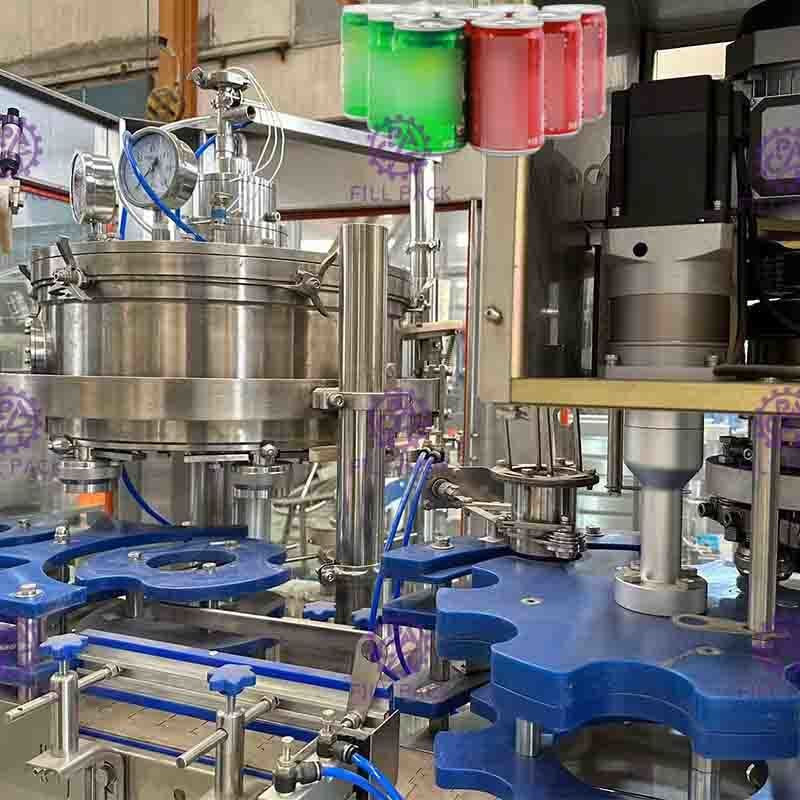

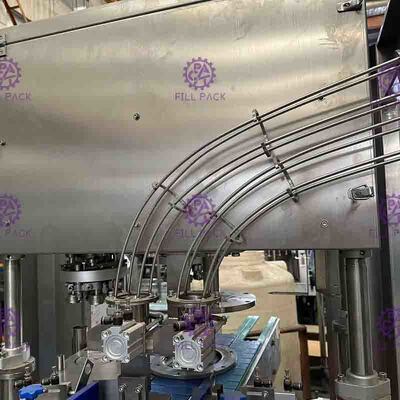

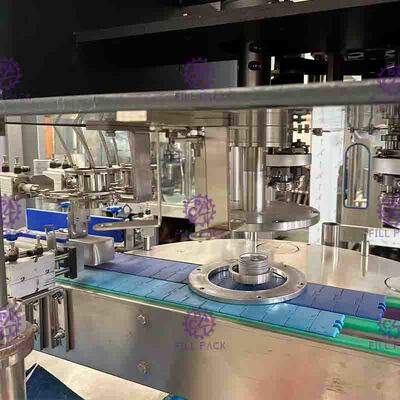

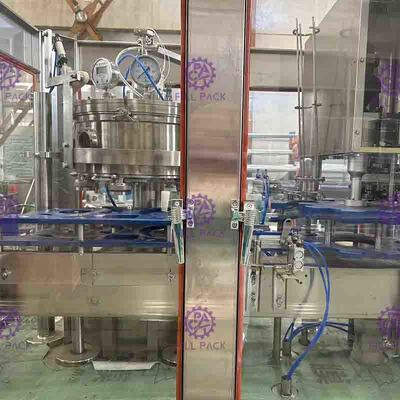

High Speed Beverage Juice Can Filling Machine , Automatic Can Sealing Equipment

High Speed Beverage Juice Can Filling Machine , Automatic Can Sealing Equipment

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE,ISO
Model Number: YLGF12-4
Filling heads: 12
Sealing heads: 4
Filling material: Juice drink, milk drink, non-carbonated drink
Applicable can: Tinplate can with diameter 40-120mm
Automatic control: PLC touch screen
Machine type: 2 in 1 filling and sealing machine
Power: 2.2KW
Driven type: Electric
Guarantee time: CE, ISO
Condition: New
Voltage: 380V, 3PHASE, 50HZ
After service: Engineer available to overseas

Payment & Shipping Terms:

Minimum Order Quantity: 1 set/pcs
Price: Negotiation
Packaging Details: Blanket cloth or wooden case as machine need
Delivery Time: 20-25 days
Payment Terms: 30% T/T deposit, 70% before shipment.
Supply Ability: 50 sets/month
Get Best Price Contact Now

Detail Information

High Light:

aerosol can filling machine

,

water bottling plant

Product Description

High Speed Beverage Juice Can Filling Machine , Automatic Can Sealing Equipment


Quick Detail:

1. Capacity: 3000-4000 Cans/H
2. For tin can juice drink, milk drink, non carbonated drink
3. Can filling and sealing 2 in 1 machine, with 12 filling heads and 4 sealing heads
4. Main material: SUS304
5. Automatic with PLC  touch screen, speed adjustable


Description:


The 2 in 1 juice can filling line is developed on the basis of digesting and absorbing advanced technology introducing from abroad and is with international advanced level. It is mainly used for filling non-gas containing drink in tin cans, such as water, juice, milk, tea and so on. The filling way is normal pressure. It adopts the automatic PLC touch screen control system, and the speed can be regulated infinitively as customer requirements within the scope. It is set with 12 filling heads and 4 sealing heads. The filling valves are adopted special for filling juice and pulp. It adopts the high quality of stainless steel 304 material, meets the requirements of food grade. It is full automatic and advanced in construction, steadily in performance, safe in operation, easy in maintenance, high in production efficiency. The filler is the ideal choice for drink factories of small and middle size.





Working process:


After get through the power and juice source, touch the touch screen to start the main machine, cans after washing come through the chain conveyor to the can filler and sealer, when can face to the filling position, it run into the rotary cam and rasied by the cam to the filling mouth, the filling valve goes into the can, then filling machine inducts the machine to filling the juice and pulp. After turning a round and filling juice reaches a level, cans will go down by cam falling, and go out through the outing wheel, at last they will be conveyed to the can sealer by the chain conveyor for sealing, since the juice contains the pulp, so there will be add a mixing function in the filling liquid tank with motor driving up on the top, to get uniformly juice and pulp.





Components:



Machine frame, machine base, sealing door, filling hydraulic cylinder, electric magnetic speed control system, liquid pipe, one speed regulator motor, one liquid pump, one set can feed and coming out wheel, one set conveyor track and chain conveyor, 18 pieces filling valve





Specifications:


Model YLGF12-4
Capacity 3000-4000 Cans/H
Filling way Normal pressure
Material SUS304
Filling heads 12 heads
Capping head 4 heads
Can neck 40-120mm
Can height 60mm - 180mm
Motor power 2.2 KW
Dimension L1600*W1400*H2000mm
Weight 2200kg


High Speed Beverage Juice Can Filling Machine , Automatic Can Sealing Equipment 0
