Screw Feeding Type Cola / Soda Can Filling Machine / Canning Machine Plc Control

Screw Feeding Type Cola / Soda Can Filling Machine / Canning Machine Plc Control

    • Screw Feeding Type Cola / Soda Can Filling Machine / Canning Machine Plc Control
    • Screw Feeding Type Cola / Soda Can Filling Machine / Canning Machine Plc Control
    • Screw Feeding Type Cola / Soda Can Filling Machine / Canning Machine Plc Control
    • Screw Feeding Type Cola / Soda Can Filling Machine / Canning Machine Plc Control
  • Screw Feeding Type Cola / Soda Can Filling Machine / Canning Machine Plc Control

    Product Details:

    Place of Origin: ZhangJiaGang City, JiangSu Province, China
    Brand Name: FillPack
    Certification: CE, ISO
    Model Number: CM12-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set/pcs
    Price: Negotiation
    Packaging Details: Blanket cloth or wooden case pacakge
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 50 sets/month
    Contact Now
    Detailed Product Description
    Guarantee Time: 1 Year Material: SUS304
    Filling Liquid: Cola / Soda Condition: New
    Processing Type: Cola / Soda Canning Machine Service: Engineers Available To Serve Overseas
    Production Name: Cola Canning Machine Suitable Container: Aluminium Can / PET Can
    Driven Type: Electric Capacity: 2000CPH



    Screw Feeding Type Cola / Soda Can Filling Machine / Canning Machine Plc Control



    Quick Detail:



    Can type: New empty aluminium can or PET can

    Capacity: 2000 Cans / Hour

    Filling head: 12 Heads

    Sealing head: 1 Head

    Main material: SUS304

    Filling pressure: Negative pressure

    Suitable cans: Aluminium can

    Service: Engineers available to serve overseas

    Function: filling, sealing





    Description:



    1. The aluminium can fillig line consists of automatic can washing machine, negative pressure filling machine, automatic capping machine and conveying system

    2. The whole line is straight and separate line.It apply to tin can filling.

    3. The machine is made of high quality SUS304 stainless steel.

    4. It is ideal selection for beverage factory due to its reasonable configuration, security of operation, dependability of running and its so convenient maintenance.



    Application

    1, The cola canning machine is suitable for alumiium cans with same body diameter but different cans height.
    2, The cola canning machine is used to wash the cans,fill carbonated drinks, for example, cola, soda, and so on, finally seal the aluminium cans.


    Working procedure

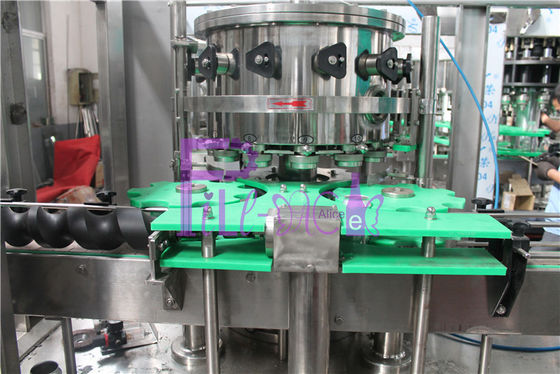

    Cans will be pushed into can holding platform one by one by feeding screw and star-wheel. Centering cup of filling valve will fall to can; The distance between filling valves and cans is sealed by springiness plastic ring. The movement of centering cup is generated by plastic idler wheel along curvilinear motion. After filled, valve will be closed, air is discharged, and centering cup will rise from the can. Filled can will be sent to conveyor chain, then to seamer. Seamer will take lid, turn over the edge of can and turn the edge to finish the sealing action by the control of cam. After that can will be transferred to conveying system.




    Specifications:



    Model CM12-1
    Capacity 2000 Cans/H
    Material SUS304
    Applicable tin can diameter 40-100mm
    Applicable tin can height 50-300mm
    Filling pressure Negative pressure
    Power 0.75KW
    Water pressure 0.15Mpa
    Dimension L1900*W600*H1200mm
    Weight 350kg





    Screw Feeding Type Cola / Soda Can Filling Machine / Canning Machine Plc Control
