3 In 1 Glass Bottle Drinking Water Filling Plant With Full Automatic PLC Control

3 In 1 Glass Bottle Drinking Water Filling Plant With Full Automatic PLC Control

    • 3 In 1 Glass Bottle Drinking Water Filling Plant With Full Automatic PLC Control
    • 3 In 1 Glass Bottle Drinking Water Filling Plant With Full Automatic PLC Control
    • 3 In 1 Glass Bottle Drinking Water Filling Plant With Full Automatic PLC Control
    • 3 In 1 Glass Bottle Drinking Water Filling Plant With Full Automatic PLC Control
  • 3 In 1 Glass Bottle Drinking Water Filling Plant With Full Automatic PLC Control

    Product Details:

    Place of Origin: China,JiangSu,Zhangjiagang
    Brand Name: FillPack
    Certification: CE & ISO & TUV & SGS
    Model Number: CGF24-24-8

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Wooden Case Package
    Delivery Time: 30 Working Days After Receiving Your Deposit Payment
    Payment Terms: TT & L/C
    Supply Ability: 20 Sets Per Months
    Contact Now
    Detailed Product Description





    3 In 1 Glass Bottle Drinking Water Filling Plant With Full Automatic PLC Control





    Quick Detail:



    Name: 3 In 1 Glass Bottle Drinking Water Filling Plant With Full Automatic PLC Control

    Material: Food stage stainless steel
    Control: PLC & touch screen control
    Capacity: 10000-15000bph
    Suitable Bottle: Glass bottle
    Bottle Volume: 0.2-2L
    Dimension: By order
    Function: Washing filling capping 3 in 1
    Technology: Germany & Japan
    After-sales service provided: Engineers available to service machinery overseas





    Description:



    1. This 3 in 1 glass bottle drinking water filling plant with full automatic PLC control has a compact structure, perfect control system, easy to operate and highly automated.

    2. The parts contacted with product are made of quality SUS304, anti-corrosive, and easy to clean.

    3. By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.

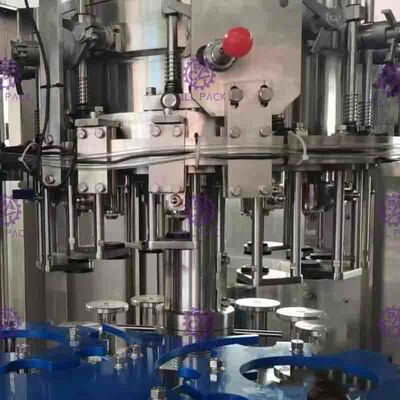

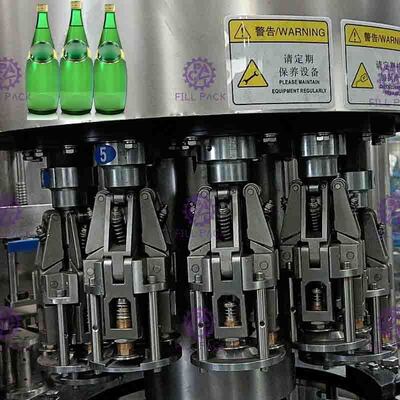

    4. The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.

    5. This machine has a high efficient cap arranging system, perfect cap feeding and protection device.

    6. Equipped with perfect clean management system to ensure the bottle clean.

    7. Only by changing the star-wheel, can realize to fill the changed bottle shape.

    8. The machine adopts perfect overload protective device can ensure the operator and machine safe.

    9. This machine adopts adjustable frequency converter.

    10. The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.

    11. The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.

    12. The electric components and pneumatic components are all introduced from world famous brand products.





    Specifications:



    Model CGF8-8-3 CGF12-12-6 CGF18-18-6 CGF24-24-8 CGF32-32-10
    Rinsing Head No 8 12 18 24 32
    Filling Head No 8 12 18 24 32
    Capping Head No 3 6 6 8 10

    Rated

    Capacity

    (500ml)

    2000BPH 4000BPH 7000-8000BPH 10000-15000BPH 15000-20000BPH
    Overall Size 1900*1420* 2000mm

    2200*1600*

    2300mm

    2450*1900*

    2300mm

    2750*1180*

    2400mm

    4000*2300*

    2300mm

    Weight 1.5T 2.2T 3.0T 4.0T 8.0T
    Power(KW) 3.0kw 3.5kw 4.0kw 4.8kw 7.6kw
    Rated Voltage Customized Customized Customized Customized Customized





    Competitive Advantage:



    1. One year warranty for the whole system

    2. Free equipment installation and debugging

    3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

    4. Every 3 years, we can help to overhaul the machine free (Labor)

    5. We can provide internship service and help you train the operator and mechanic

    6. Free production technology and process configuration

    7. We can help you to design the production line, workshop and provide turn-key project





    Market Distribution:



    Market Revenue(Previous Year) Total Revenue (%)
    Africa confidential 40%
    Middle east confidential 15%
    America confidential 5%
    Euro confidential 4%
    Middle Aisa confidential 3%
    South-east Asia confidential 3%
    Domestic confidential 30%



    3 In 1 Glass Bottle Drinking Water Filling Plant With Full Automatic PLC Control

    please kindly click the play button to watch the video
