High Capacity Drinking Water Filling Plant Plastic Bottle Vertical Filling Machine

High Capacity Drinking Water Filling Plant Plastic Bottle Vertical Filling Machine

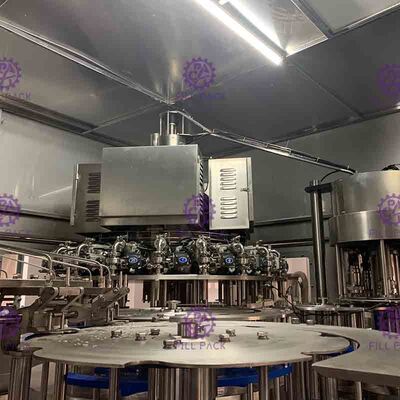

    • High Capacity Drinking Water Filling Plant Plastic Bottle Vertical Filling Machine

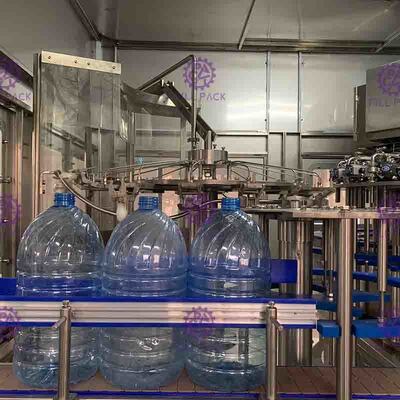

    • High Capacity Drinking Water Filling Plant Plastic Bottle Vertical Filling Machine

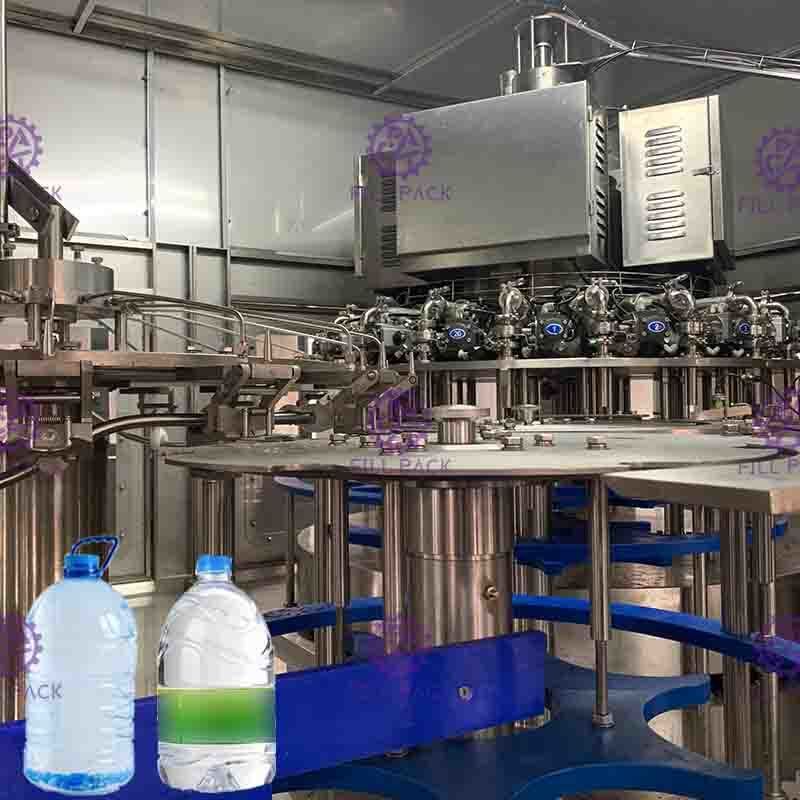

    • High Capacity Drinking Water Filling Plant Plastic Bottle Vertical Filling Machine

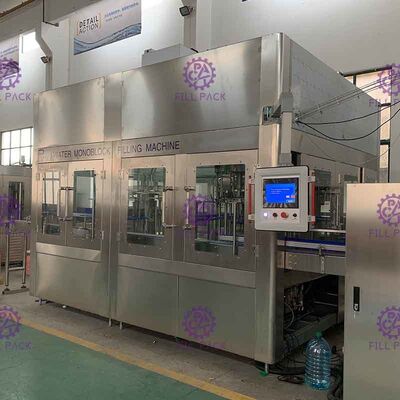

    • High Capacity Drinking Water Filling Plant Plastic Bottle Vertical Filling Machine
  • High Capacity Drinking Water Filling Plant Plastic Bottle Vertical Filling Machine

    Product Details:

    Place of Origin: China,JiangSu,Zhangjiagang
    Brand Name: FillPack
    Certification: CE & ISO & TUV & SGS
    Model Number: CGF32-32-10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Wooden Case Package
    Delivery Time: 30 Working Days After Receiving Your Deposit Payment
    Payment Terms: TT & L/C
    Supply Ability: 20 Sets Per Months
    Contact Now
    Detailed Product Description





    High Capacity Drinking Water Filling Plant Plastic Bottle Vertical Filling Machine





    Quick Detail:



    Name: High Capacity Drinking Water Filling Plant Plastic Bottle Vertical Filling Machine

    Material: Food stage stainless steel
    Control: PLC & touch screen control
    Capacity: 10000-15000bph
    Suitable Bottle: PET bottle
    Bottle Volume: 0.2-2L
    Dimension: By order
    Function: Washing filling capping 3 in 1
    Technology: Germany & Japan
    After-sales service provided: Engineers available to service machinery overseas





    Description:



    1. The drinking water production line including: Washing-filling-capping 3 in 1 machine, lamp inspection, label shrinking machine, inkjet printer, hot shrink film packer and conveyors. It is a full automatic production line.

    2. The water filling line is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.

    3. The machine is used in filling drinking water, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.

    4. The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. The output and benefit of the machine is higher than the machinery of the same specifications.

    5. The advanced MITSUBISHI/OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle - entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.

    6. It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum.

    7. The filling category of lower vacuum (Z type machine) is applicable in glass bottles, filling alcohol, soy and such like materials. The aluminum theft proof cap and plastic cap can be adopted. The machine is an idea-preferred equipment for drinking water makers.





    Specifications:



    Model CGF8-8-3 CGF12-12-6 CGF18-18-6 CGF24-24-8 CGF32-32-10
    Rinsing Head No 8 12 18 24 32
    Filling Head No 8 12 18 24 32
    Capping Head No 3 6 6 8 10

    Rated

    Capacity

    (500ml)

    2000BPH 4000BPH 7000-8000BPH 10000-15000BPH 15000-20000BPH
    Overall Size 1900*1420* 2000mm

    2200*1600*

    2300mm

    2450*1900*

    2300mm

    2750*1180*

    2400mm

    4000*2300*

    2300mm

    Weight 1.5T 2.2T 3.0T 4.0T 8.0T
    Power(KW) 3.0kw 3.5kw 4.0kw 4.8kw 7.6kw
    Rated Voltage Customized Customized Customized Customized Customized





    Competitive Advantage:



    1. One year warranty for the whole system

    2. Free equipment installation and debugging

    3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

    4. Every 3 years, we can help to overhaul the machine free (Labor)

    5. We can provide internship service and help you train the operator and mechanic

    6. Free production technology and process configuration

    7. We can help you to design the production line, workshop and provide turn-key project





    Market Distribution:



    Market Revenue(Previous Year) Total Revenue (%)
    Africa confidential 40%
    Middle east confidential 15%
    America confidential 5%
    Euro confidential 4%
    Middle Aisa confidential 3%
    South-east Asia confidential 3%
    Domestic confidential 30%
