Stainless Steel Drinking Water Bottle Filling Machine 10 Heads With Linear Type

Stainless Steel Drinking Water Bottle Filling Machine 10 Heads With Linear Type

Product Details:

Place of Origin: ZhangJiaGang JiangSu China
Brand Name: FILL PACK
Certification: CE & ISO & SGS & TUV
Model Number: XGF 10-10-1

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD $12000-$19000/set
Packaging Details: Wooden Case Packaging
Delivery Time: 30 Working Days After Receiving Deposit Payment
Payment Terms: T/T, L/C, D/A, D/P, , MoneyGram
Supply Ability: 10 Sets Per Months
Get Best Price Contact Now

Detail Information

Material: Stainless Steel Capacity: 1000BPH
Automatic Grade: Linear Automatic Bottle Size: 3L-10L
Processing Brand: Japan & Germany Application: Pure Water/mineral Water
High Light:

1000BPH Drinking Water Filling Machine


3L Drinking Water Filling Machine


10L Drinking Water Filling Machine

Product Description

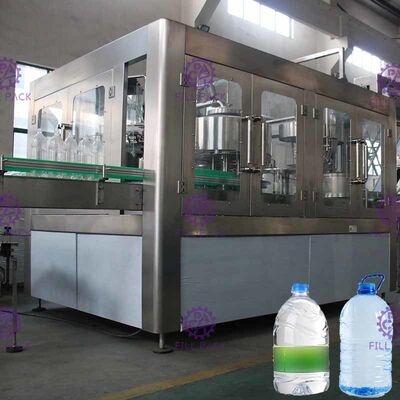

Stainless Steel Drinking Water Bottle Filling Line 10 Heads With Linear Type




1.The bottling filling line is used in production of drinking water ,mineral water or pure water packed in big PET bottles.

The most advanced technology from Japan and Germany is employed in the design. The gravity fixed liquid surface filling is used. The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.

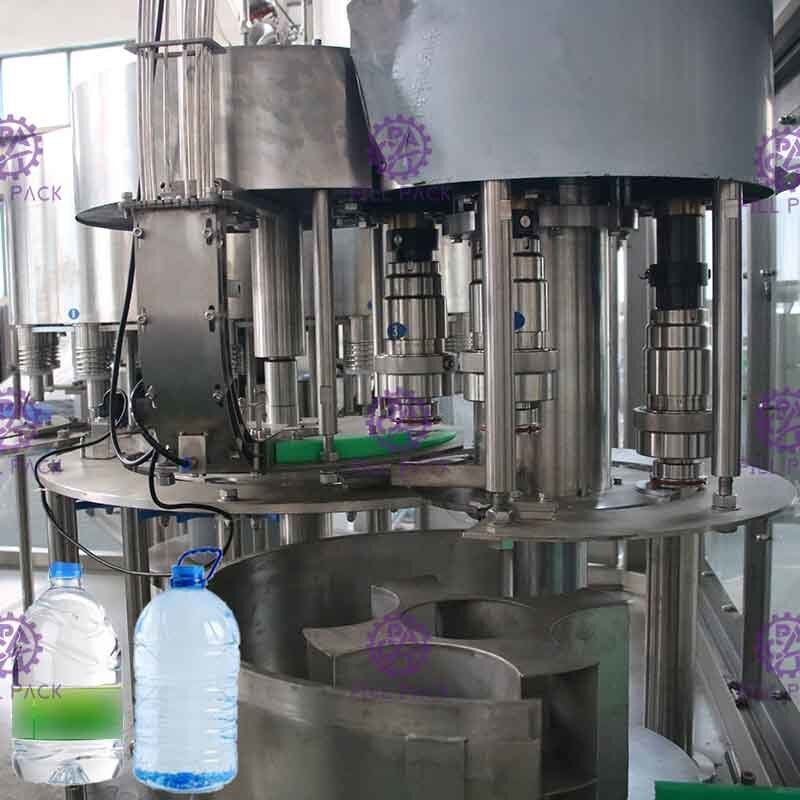

2.The filling by spring type liquid lever controlling filling valve, no dripping. The liquid lever is easy to control. All construction made of SUS304, There is no dead corner inside filling valve.


3.Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180~ along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.


4.The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.

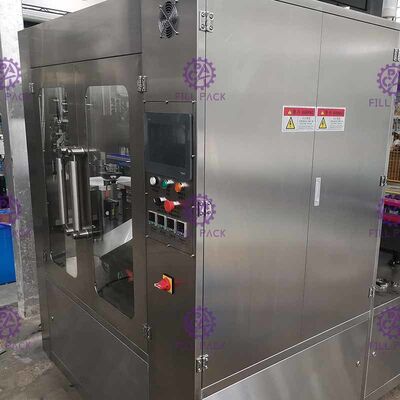

5.The bottle filling machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.


6.There is electrical heating cold-heat tank enclosed in the whole system especially for keeping hot filling temp during hot juice filling. And it can also be stopping heating by easy electrical break down for cold water filling. It do not need extra steam system to work together.




model XGF10-10-1
filling heads 10
capping heads 1
applicable bottle diameter 140-200mm
power 3.5KW
capacity 1000-1200BPH
suitable for bottle height 150-340mm
filling precision 100%


Company information:


At present we produce: production lines for mineral water, pure water, fruit juice, tea drink, milk drink and carbonated drink with capacity 1000-20000bottles/hour; production lines for vinegar, soy sauce and wine 1000-20000bottles/hour; 3-5 gallon barreled water with capacity 80-1200 barrels per hour and various water treatment plants; We provide separate machinery or turnkey project.

Our product pass quality inspection executed by Bureau of Quality and Technical Supervision every year. Our factory is in accordance with ISO9001: 2000 certification system standards and we gain CE certificate for exportation to Euro countries. Our machineries are sold to more than 40 cities in China and over cross to American, Spanish, Hungary, middle east and African countries.
