Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE & ISO & TUV & SGS
Model Number: KLCGF24-24-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case Package
Delivery Time: 30 Working Days After Receiving Your Deposit Payment
Payment Terms: TT & L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 20 sets/month
Get Best Price Contact Now

Detail Information

Weight: 8000-12000 Kg Dimension(L*W*H): 3100*2450*2300 Mm
Filling Pressure: 0.1-0.35Mpa Automatic Grade: Automatic
Bottle Type: PET Plastic Bottle Condition: New
Material: SUS304 Filling Precision: ≤+/-1mm(liquid Level)
Processing Types: Granular Juice Processing Filling Packing Voltage: 380V/220V 50HZ
Filling Material: Juice With Paste Granule Capacity: 8000-12000BPH
Control: PLC Control With Touch Screen Suitable Bottle Size: 0.3-2L PET Bottle
Cap Style: Plastic Screw Cap Warranty: 1 Year For Spare Parts
High Light:

monoblock filling machine


high speed filling machine

Product Description

Product Description

Plastic bottle granular juice drink filling line KLCGF24-24-8


>>> Overview of Production Line:

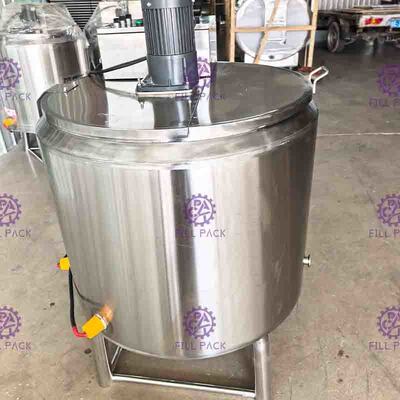

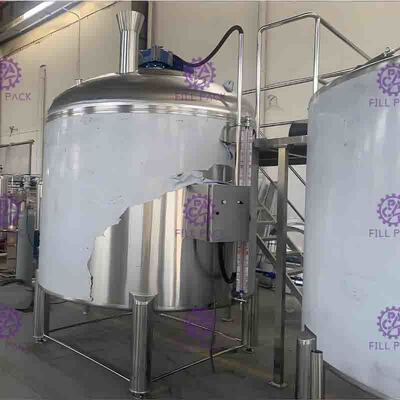

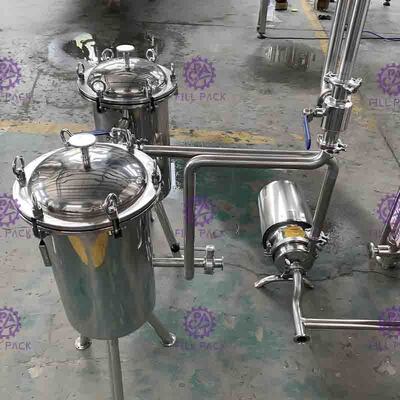

The granular juice blending process is designed according to the formula of the juice drink. Usually, the juice blending process is: sugar preparation syrup, syrup filtration, concentrated juice dilution, juice mixing tank,Vacuum degasser, Homogenizer, UHT(Sterilization), CIP cleaning. For example: use concentrated juice to produce bottled juice. Before the concentrated juice is prepared, it is necessary to carry out the juice recovery, that is, adding an appropriate amount of water to pre-dissolve and dilute the concentrated juice. After that, it is sent to the mixing tank, and then the syrup and other auxiliary materials are added, and the water is stirred and the volume is adjusted.

★ UHT sterilizer is used for heating, sterilization, heat preservation and cooling of juice drinks. This equipment is the ideal equipment for prolonging the retention period of materials through sterilization and cooling.
★ With a variety of safety protection measures and high temperature alarm, low temperature reflux function. Materials and heating medium are heated by non-contact heat exchange in their respective sealing systems to ensure the health and safety of materials.

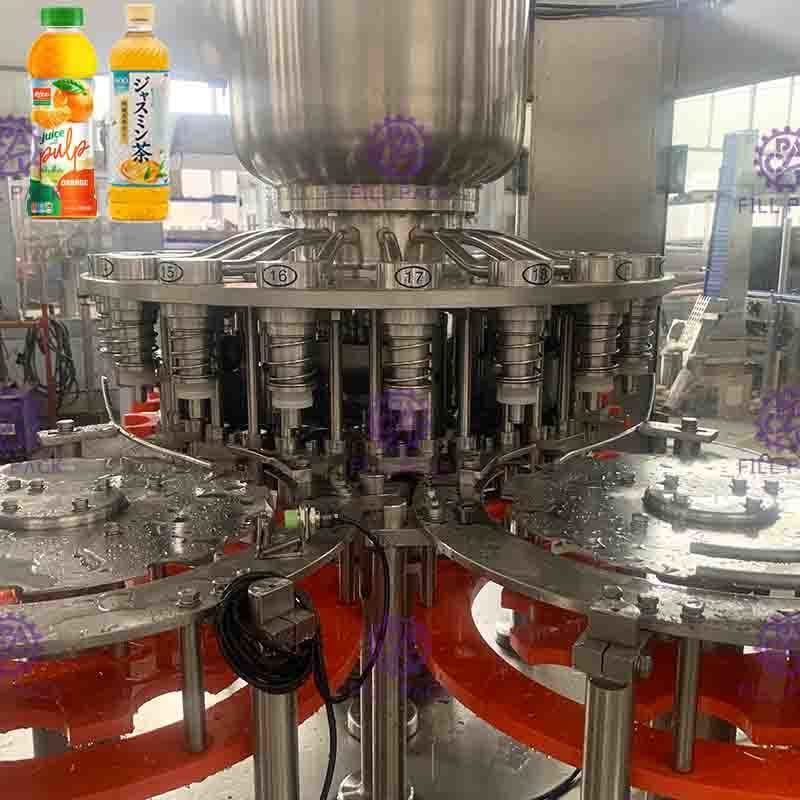

Washing, Filling, Capping 3-in-1 Machine For Filling Juice
Washing, Filling, Capping 3-in-1 Machine is a set of equipment with high precision and speed to fill liquid. It adopts bottle-neck block technology, not only avoiding second pollution to the bottle-neck, but also realizing filling different specs of bottles in one equipment, which greatly improved commonality of this equipment.
Apple Orange Pulp Pulpy Grain Granule Juice Bottling Machine / Equipment / Plant / Unit / System / Line 0
Washing Filling Capping 3-in-1 in the Granular Juice filling line
Model KLCGF12-12-4 KLCGF18-18-6 KLCGF24-24-8 KLCGF32-32-12 KLCGF40-40-12
Capacity 4000BPH 5000-7000BPH 8000-12000BPH 12000-15000BPH 15000-20000BPH
Bottle shape (Bottle Diameter):50-110mm (Height):160-320mm
PET bottle PET screw
Filling precision ≤+/-1%
Filling pressure 0.15-0.35MPa 0.15-0.35MPa 0.15-0.35MPa 0.15-0.35MPa 0.15-0.35MPa
Rinsing pressure 0.2-0.25MPa 0.2-0.25MPa 0.2-0.25MPa 0.2-0.25MPa 0.2-0.25MPa
Power 4.4Kw 4.4Kw 5.2Kw 6.2Kw 7.8Kw
Size(mm) 2100*1750*2200 2800*2150*2300 3100*2450*2300 3800*2800*2500 4100*3000*2500
Weight(Kg) 3500 5000-7000 8000-12000 12000-15000 15000-20000
If you need non-granular juice filling line, please check them on our website or contact the sales consultant directly.
Other machines in the production line

1, Water treatment system

2, Vacuum degasser

3, Homogenizer

4, Washing Filling Capping Heads
★ The three functions of bottle washing, filling and capping are composed in one body of the machine.
★ The rinsing, filling, capping machine is automatically controlled by PLC.
★ Direct connection technology is used between air conveyor and in-feeding starwheel to substitute in-feeding screw and conveyor. It is easy to change the size of bottles.
★ The head of filling machine is made of better stainless steel, which is firm and endurable.

5, Labeling machine with code printer

6, Film shrinking packing machine
