High Capacity Pulp Juice Filling Machine Plastic Bottles PLC Control
Product Details:
| Place of Origin: | China,JiangSu,Zhangjiagang |
| Brand Name: | FillPack |
| Certification: | CE & ISO & TUV & SGS |
| Model Number: | YFRG24-24-8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 18000-45000USD |
| Packaging Details: | Wooden Case Package |
| Delivery Time: | 30 Working Days After Receiving Your Deposit Payment |
| Payment Terms: | L/C, T/T, |
| Supply Ability: | 20 sets/month |
|
Detail Information |
|||
| Material: | Stainless Steel | Bottle Type: | PET Bottles |
|---|---|---|---|
| Color: | Gray | Driven Type: | Electric |
| Guarantee Time: | 1 Year | Capacity: | 2000-20000 BPH |
| Highlight: | monoblock filling machine,high speed filling machine |
||
Product Description

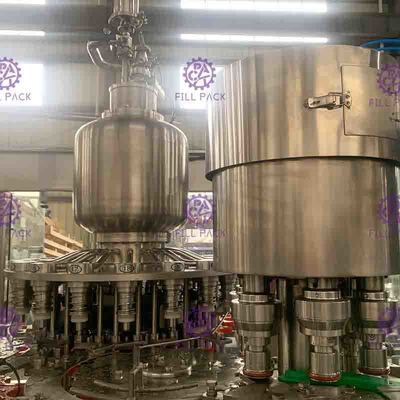

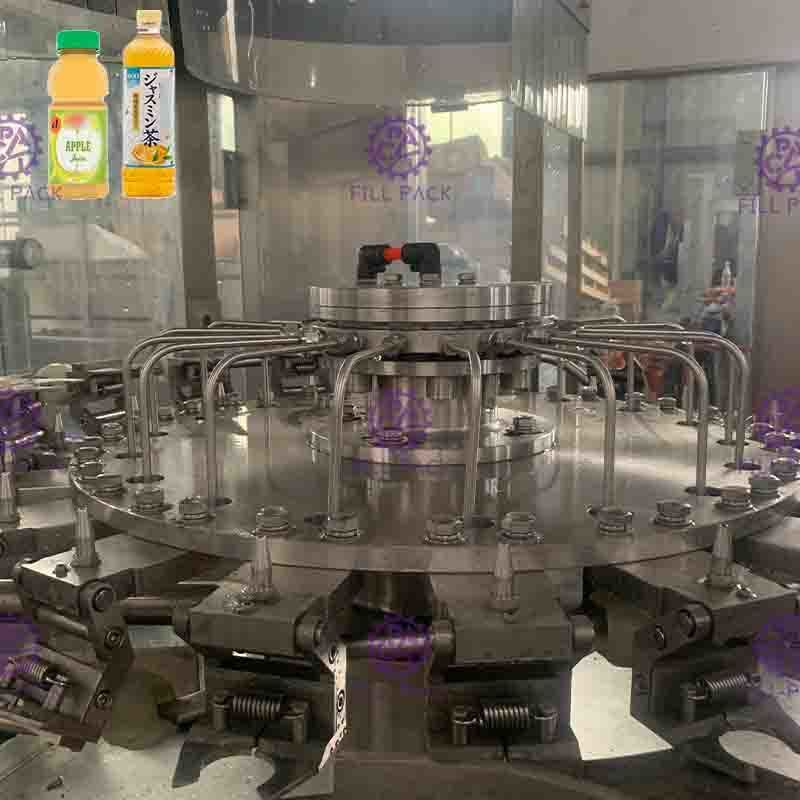

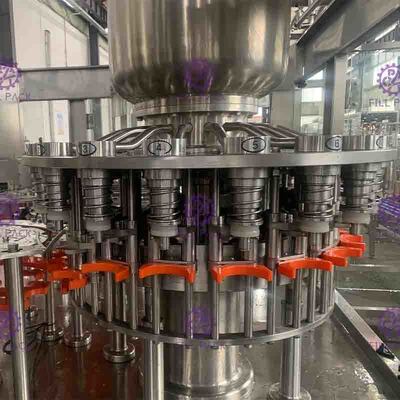

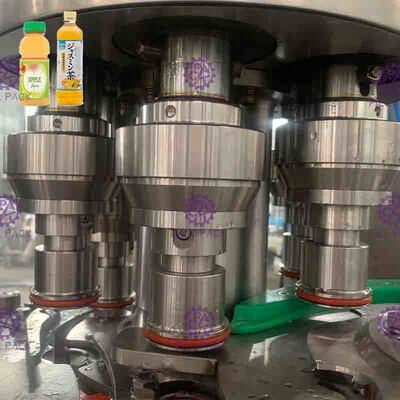

High Capacity Pulp Juice Filling Machine Plastic Bottles PLC Control
Quick Detail:
Name: YFRG24-24-8 High Capacity Pulp Juice Filling Machine For Plastic Bottles With PLC Control
Material: Food stage stainless steel
Control: PLC control and touch screen
Capacity: 2000-20000bph
Suitable Bottle: PET bottle
Bottle Volume: 0.2-2L
Machine structure: Washing filling capping 3 in 1
After-sales service provided: Engineers available to service machinery overseas .
Description:
The Automatic glass bottle juice filling machinery is used in production of non-soda drink of
mineral-pure water packed in polyester bottles. Washing, filling and capping are integrated in
one machine.
The whole machine is controlled by PLC with touch-screen as the human-machine interface.
The amount of the drinks in the storage tank can be controlled automatically. The filling and
capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly
or when caps are not available, the machine can be stopped automatically.
The frequency changing technology is used to adjust the operation speed steplessly. The production capacity can be displayed digitally and can be adjusted converniently.
Technical data:
| Model | YFRG12-12-4 | YFRG18-18-6 | YFRG24-24-8 | YFRG32-32-10 |
| Production B/H(600ml) | 4000-5000 | 6000-8000 | 8000-12000 | 12000-15000 |
| Bottle standard | Neck:φ50-100mm Height 150-320mm | |||
| Water pressure of washing bottle | 0.18-0.25Mpa | |||
| Water consumption for washing bottle (kg/h) | 1300 | 2000 | 3000 | 4000 |
| Spraying position | 4 | 7 | 10 | 14 |
| Dripping bottle position | 3 | 5 | 8 | 10 |
| Filing precision | +5MM | |||
| Gas source pressure | 0.4Mpa | |||
| Gas consumption(m³/min) | 0.3 | 0.4 | 0.5 | 0.7 |
| Total power(KW) | 4.2 | 4.5 | 5 | 6.2 |
| Total weight (T) | 2 | 2.5 | 3 | 4 |
| Dimension (L*W*H)mm | 2100*1600*2100 | 2500*1750*2100 | 2700*2100*2100 | 3500*2100*2100 |
After-sales service:
1. One year warranty for the whole system
2. Free equipment installation and debugging
3. After one year, we can help you to maintain the machine and the accessories are provided only
one the cost price
4. Every 3 years, we can help to overhaul the machine free (Labor)
5. We can provide internship service and help you train the operator and mechanic
6. Free production technology and process configuration
7. We can help you to design the production line, workshop and provide turn-key project
Company introduction:
Zhangjiagang City FILL-PACK Machinery Co., Ltd. is a manufacturer enterprise specializing
in producing beverage packing equipment and various water treatment equipment. The company has
not only gained over ten year’s producing experience but also incorporated advanced technology
from home and abroad. So we have won high reputation among our customers domestic and
abroad.
At present we produce: production lines for mineral water, pure water, fruit juice, tea drink, milk
drink and carbonated drink with capacity 1000-20000bottles/hour, production lines for vinegar, soy
sauce and wine, 3-5gallon barreled water with capacity 80-120 barrels per hour and various water
treatment plant.
Honesty, Sincerity, and good faith" is our spirit, while "High technology, high quality, and high
level" is what we look for. We try our best to satisfy our customers' needs with our good after-sales
service. We would like to cooperate with our friends and develop together. All friends from at home
and abroad are warmly welcomed to visit us.
please kindly click the play button to watch the video
