SUS304 2L Glass Bottle Fruit Juice Packing Machine 4000BPH With Homogenizer

SUS304 2L Glass Bottle Fruit Juice Packing Machine 4000BPH With Homogenizer

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE & ISO & TUV & SGS
Model Number: RCGF32-32-12B

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case Package
Delivery Time: 30 Working Days After Receiving Your Deposit Payment
Payment Terms: TT & L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 20 sets/month
Get Best Price Contact Now

Detail Information

Weight: 12000-15000 Kg Dimension(L*W*H): 3800*2800*2500 Mm
Filling Pressure: 0.1-0.35Mpa Automatic Grade: Automatic
Bottle Type: Glass Bottle Condition: New
Material: SUS304 Filling Precision: ≤+/-1mm(liquid Level)
Processing Types: Juice Processing Filling Packing Voltage: 380V/220V 50HZ
Capacity: 12000-15000BPH Control: PLC Control With Touch Screen
Suitable Bottle Size: 0.3-2L Glass Bottle Cap Style: Glass Screw Cap
Warranty: 1 Year For Spare Parts
High Light:

SUS304 juice packing machine


2L Glass juice packing machine


SUS304 fruit juice packaging machine

Product Description

Product Description

 Glass bottle juice drink filling line RCGF18-18-6B


>>>Processing flow:
Drinking Water Treatment Equipment → Syrup pot → Syrup Filter → juice mixing tank → Vacuum degasser → Homogenizer → UHT(Sterilization) → Washing, Filling, Capping 3-in-1 Machine For Filling Juice → Bottle Inverted Conveyor Sterilization → Spray Water Sterilization.(85℃) → Labeling Machine Code printer → Shrink wrap packing machine→ Finished Products


SUS304 2L Glass Bottle Fruit Juice Packing Machine 4000BPH With Homogenizer 0

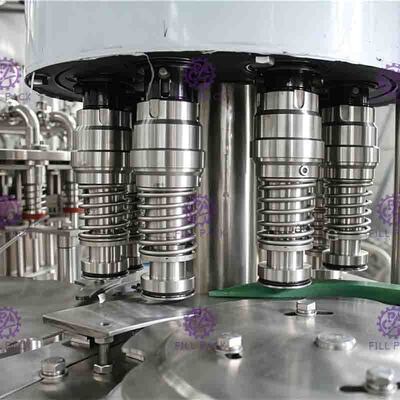

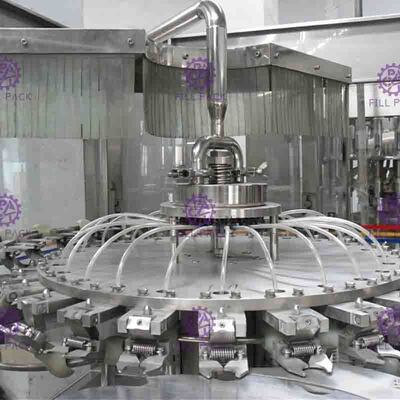

Washing, Filling, Capping 3-in-1 Machine For Filling Juice
Washing, Filling, Capping 3-in-1 Machine is a set of equipment with high precision and speed to fill liquid. It adopts bottle-neck block technology, not only avoiding second pollution to the bottle-neck, but also realizing filling different specs of bottles in one equipment, which greatly improved commonality of this equipment. Production capacity is 2000 bottles to 250000 bottles per hour. Main-frame machine adopts frequency controlling electric motor, which is much convenient to adjust speed in scope of production capacity.


Spray Water Sterilization.(85℃)
When passing through the spray sterilizer, the machine will spray a certain temperature of water outside the bottle to achieve the second step of sterilization. That is to say, for the products after filling and capping, the bottle pouring sterilizer can automatically turn the bottle 90° to put the bottle down, sterilize the inner wall of the bottle cap through the material temperature, and then pass the spray cooling machine.

Washing Filling Capping 3-in-1 in the Juice/Tea Hot filling line
Model RCGF12-12-4B RCGF18-18-6B RCGF24-24-8B RCGF32-32-12B RCGF40-40-12B
Capacity 4000BPH 5000-7000BPH 8000-12000BPH 12000-15000BPH 15000-20000BPH
Bottle shape (Bottle Diameter):50-110mm (Height):160-320mm
PET bottle PET screw
Filling precision ≤+/-1%
Filling pressure 0.15-0.35MPa 0.15-0.35MPa 0.15-0.35MPa 0.15-0.35MPa 0.15-0.35MPa
Rinsing pressure 0.2-0.25MPa 0.2-0.25MPa 0.2-0.25MPa 0.2-0.25MPa 0.2-0.25MPa
Power 4.4Kw 4.4Kw 5.2Kw 6.2Kw 7.8Kw
Size(mm) 2100*1750*2200 2800*2150*2300 3100*2450*2300 3800*2800*2500 4100*3000*2500
Weight(Kg) 3500 5000-7000 8000-12000 12000-15000 15000-20000
If you need plastic bottle juice filling line, please check them on our website or contact the sales consultant directly.
Other machines in the production line

1, Water treatment system
2, Vacuum degasser.
3, Homogenizer
4, Labeling machine with code printer
5, Film shrinking packing machine

★ The film shrink packing is used to pack scattered bottles into a whole group.We have Manual wrapping Shrink Packing Machine, Semi-Automatic PE Film Heat Shrink Packing Machine, L Type Automatic PE Film Heat Shrink Wrapping Machine,Linear type High Speed Automatic Shrink Packing and Color film orientation shrink packing machine.
★ How to choose the machine? You need to tell us what kind of film you need and what kind of bottle arrangement you need.
