Using high-speed microcomputer work, can set a variety of currencies, multiple identification function is more stable, can use a variety of coins and banknotes at the same time.

|
12g/H 5 Gallon Barrel Water Filling Machine Self Service Coin Swiping Payment
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FillPack |
| Certification: | CE / ISO9001 |
| Model Number: | 1600GPD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 2880USD/set |
| Packaging Details: | sea worthy packing |
| Delivery Time: | 20 Working Days After Deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram |
| Supply Ability: | 20 Sets Per Months |
|
Detail Information |
|||
| Model: | 1600GPD | Pre-fillter Stage: | 9 |
|---|---|---|---|
| Pay Function:: | IC Card, Coins | Voltage:: | AC 220V/50Hz Or 110V/60Hz |
| Filling Material:: | Pure Water | RO Membrane:: | 4040 |
| Power:: | 1250W | Diamention:: | 1600*680*2000 Mm |
| High Light: | Barrel 5 Gallon Filling Machine,12g/H Barrel Water Filling Machine,Coin Swiping Barrel Water Filling Machine |
||
Product Description
Slef-service Coin swiping payment operated gallon bottle / bucket / barrel pure / drinkable water filling / filler machi

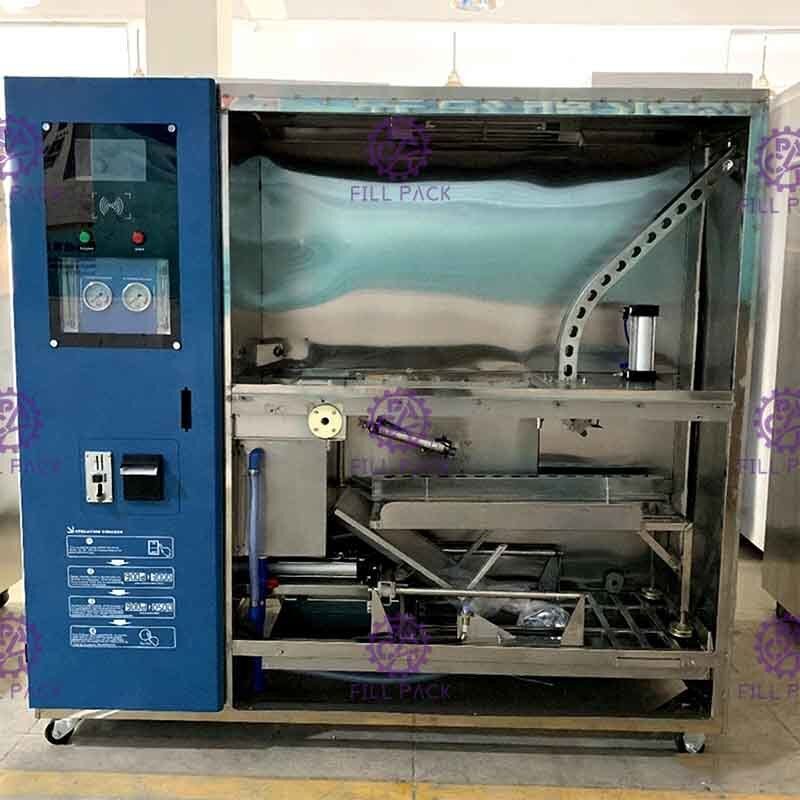

This machine can only fill 5 gallon bottle. The right side of the machine is the filling part, the left side is the electrical and operating part, and the back is the water treatment part. This machine can recognize coins and paper money from multiple countries. At the same time, gallon bottle water filling can be carried out through IC card and a recharge machine. If this machine is placed to the seller's store, only a recharge machine and an IC card can be used to serve consumers. The water treatment part and the filling part are integrated. The water filtration process strictly in accordance with the standards, including quartz sand filters, activated carbon filters, 3 PP cotton precision filters, RO membrane filter, and 4 T33 filters, UV sterilizer and ozone sterilizer. The water produced will fully meet the standards of pure water.
Steps to get gallon water:
1. When guests come to fill water, first put the gallon bucket in the washing station, and then insert coins or swipe cards. 2. The machine will automatically start to work. The machine has a detection probe. After detecting the gallon barrel, it will automatically wash the bottle, then fill, cover, press and push out. 3. The customer takes away the gallon bucket filled with pure water.
Features:
1, Stainless steel waterproof cabinet, ,safety and health, easy for installation and maintenance. 2, Advanced reverse osmosis purification technology,nine effective water treatment, water meets national standards. 3, Automatic bottle washing, filling, capping, output. Intelligent control, easy to complete bottled water production. 4, 24 hours UV sterilization, to prevent secondary pollution. 5, Efficient ozone generation and mixing technology,filling water with a normal ozone levels meet the national standards. 6, Powerful pre-processing,automatic backwash features,Full automatically.
Details images
Details of main machines
Coin, paper money and cards Paying system
Washing filling capping head
The magnetic torque type screw cover head is adopted to realize grasping and screwing the cover. The screw cap torque is stepless adjustable, and the sealing is tight and reliable without damaging the cover.

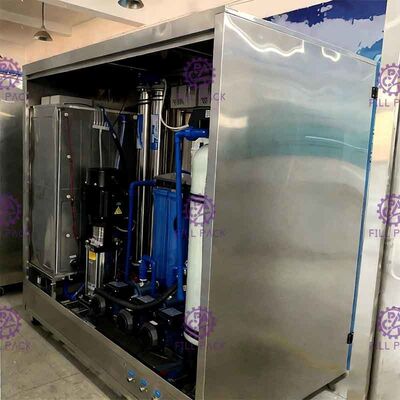

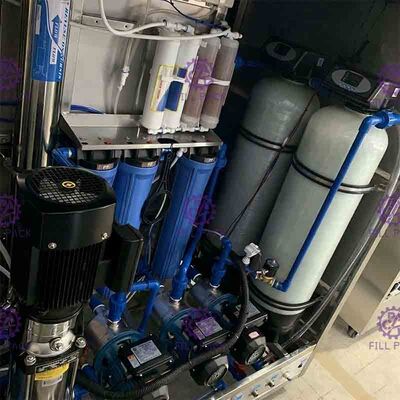

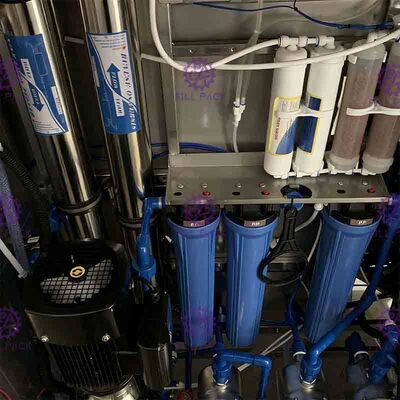

RO water treatment part in the back
Reverse osmosis (RO) is a reverse migration movement of osmosis. It is a separation method of solute and solvent in solution driven by pressure with the help of selective interception of semipermeable membrane. Its pore size is about 5-10A. It has been widely used in the purification and concentration of various liquids. The most common application example is in the water treatment process. Inorganic ions, bacteria, viruses, organic matters and colloids in raw water can be removed by reverse osmosis technology to obtain high-quality purified water

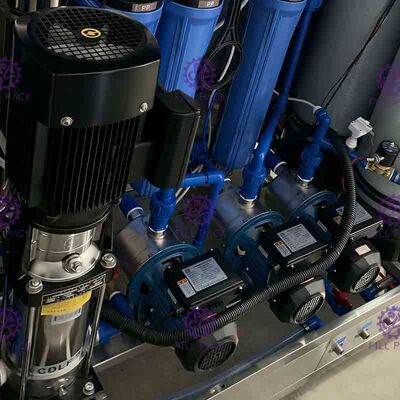

4 pumps.Raw water booster pump, bottle washing, filling pump and RO high-pressure pump
Pump is to transport fluid or make the fluid supercharged machinery. It transfers the mechanical energy or other external energy of the prime mover to the liquid to increase the liquid energy
