SUS304 Automatic PET Bottle Sorting Machine

SUS304 Automatic PET Bottle Sorting Machine

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: FillPack
Certification: CE. ISO9001
Model Number: LP-18

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Sea worthy package
Delivery Time: 30-40 days after deposit receipt
Payment Terms: TT/LC/Wertern union
Supply Ability: 1 set/sets/month
Get Best Price Contact Now

Detail Information

Automation: Automatic Capacity: 15000BPH
Material: SUS304 Bottle Type: Plastic Bottles
Voltage: 380V 3phase 50/60HZ/customize Condition: New
Highlight:

Bottle Unscrambler

,

Juice Production Line

Product Description



SUS304 PET Bottle Sorting Machine Automatic Bottle Feeder Machine





Quick Detail:



1, Capacity: 15000BPH

2, Automation: TOTALLY automatic

3, Material: SUS304

4, Bottle type: Plastic bottles

5, PLC control





Description:

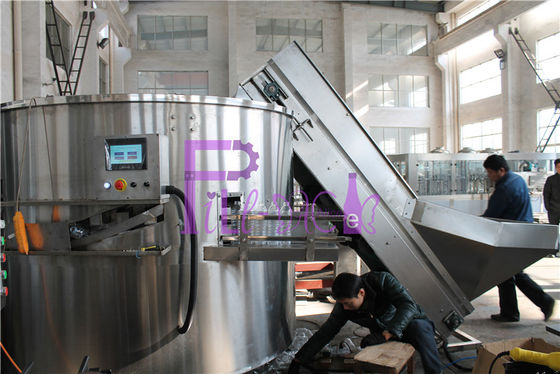

The automatic bottle sorter is composed by two parts: bottle loading part and bottle sorting machine. Bottles are loaded into the bottle loader, and the bottles will be lifted up by belt into bottle sorting machine.



There are air blowers installed around the sorting machine body. They will blow bottles into the grooves for arranging. Whatever how the machine drop into the grooves, bottles will be out with bottle mouth up.





Applications



The automatic bottle sorting machine is used to arrange disordered plastic bottle to production line. It can connect to different production line including mineral water line, food production line, dairy production line, medical production line and chemical production line and etc.





Specifications:



Working position 18
Capacity 12000-15000BPH (500ml)
Air pressure 0.7Mpa
Air consumption 2M3/min
Applicable bottle diameter 50-96mm
Applicable bottle height 160-300mm
Main motor 2.2kw
Lifting motor 0.75kw
Blow motor 2.2kw
Dimension (Cylinder part) 2700*2400mm
Dimension (Lifte part) 800*800*4500mm
Weight 4500kg





Working principle:



When the bottle elevator is started, the disordered bottles will be transferred on top of umbrella shape tower ,and then fall into bottle ascending devices .The bottle ascending devices will push bottles into bottle dropping grooves under the action of cam . Then the ordered bottles will be sent out through planet wheel into air conveyor. Planet wheel is connected with motor main axis by synchronous belt.





Competitive Advantage:



1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project





Package & Shipment
