PET or Plastic Bottle Sorter / Sorting Machine / Equipment / Line / Plant / System
Product Details:
| Place of Origin: | Zhangjiagang, China |
| Brand Name: | FILLPACK |
| Certification: | CE. ISO9001 |
| Model Number: | LP-5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set/pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Sea worthy package |
| Delivery Time: | 35-40 days after deposit receipt |
| Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram, Western Union |
| Supply Ability: | 1 set / month |
|
Detail Information |
|||
| Weight: | 300kg | Power: | 2.95KW |
|---|---|---|---|
| Packaging Material: | Wooden Case | Machine Type: | Semi Automatic |
| Capacity: | 10000BPH | Bottle Type: | PET Bottles |
| Material: | Stainless Steel | Driven Type: | Electric |
| Highlight: | Bottle Sorting Equipment,Bottle Unscrambler |
||
Product Description
PET / plastic bottle Sorter / Sorting Machine / equipment / line / plant / system
Brief Introduction

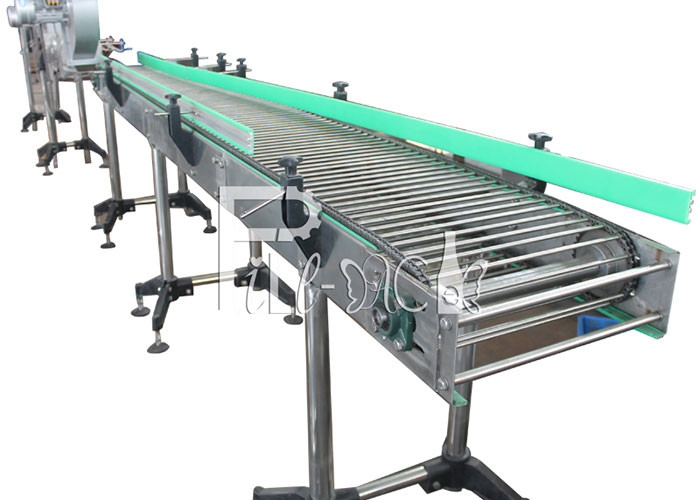

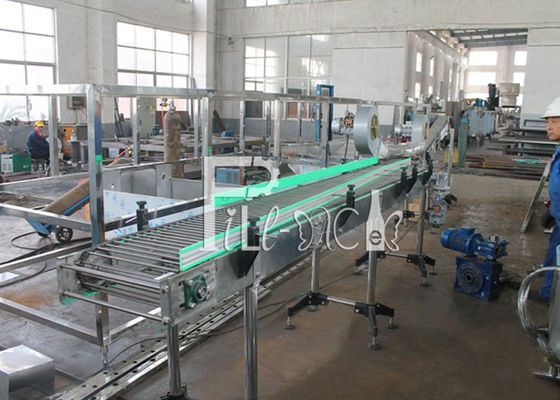

The Unscrambler system including 3 parts: bottle loading conveying rack, bottle neck holding reverse conveyor and height ascending conveyor; The worker load empty disordered bottles on the 1sr part, then the machine will arrange bottles automatically with air to go into monoblock filling machine; It is the ideal machine to substitute traditional automatic unscrambler since it is more cost effective.
Characters for Unscrambler
1, It can be used for various round shapes and volumes of bottles without part changing
2, It can be adopted to low and high capacity line production
3, It only require easy manual arrangement, no special requirement for labour.
|
Parameters
|
|
|
Max Capacity
|
10000BPH
|
|
Power
|
2.95KW
|
|
Dimension
|
7000*800*1300mm
|
Device Features
Automatic Bottle Unscrambler is the introduction of foreign advanced technology, according to China high-speed beverage filling equipment, the direction of development needs, development of a leading domestic level with a row of bottles of equipment. the main features of the main motor reducer with torque limit agencies, in order to prevent damage to equipment failure. Two-row of bottles of elected bodies, to ensure that each station has a bottle off the bottle and improve the efficiency of a bottle.
Using hanging bottle conveying duct to prevent the overturning of the bottle in the transportation time. Remove body with broken bottles. Equipped with card bottle detector, the card automatically shut down bottles and alarm. With no bottle detector, used for a hoist to issue a signal to hoist will automatically add the bottle. Bottle conveying air paths and is equipped with photoelectric switches, for controlling the start-stop Unscrambler.
Unscrambler with injection nozzle, can be easily addressed to gears, bearings and cam lubricant filling. Has a maintenance gate and mold to replace the door. Main electrical components (inverter, PLC, photoelectric switches, relays) are used MITSUBISHI, OMRON, SIEMENS and other components. Pneumatic systems are used imports.
