Empty Aluminum Can Filling Line - Beverage Aluminum Can Rinser SUS304 With CE
Product Details:
| Place of Origin: | ZhangJiaGang City, JiangSu Province, China |
| Brand Name: | FillPack |
| Certification: | CE, ISO |
| Model Number: | YFGC-1 |
| Application: | Food and beverage production line |
|---|---|
| Applicable can: | New empty aluminum can or PET can |
| Water pump power: | 0.37 KW |
| Material: | SUS304 |
| Driven Type: | Electric |
| Condition State: | New |
| Service: | Engineer available to oversea service |
| Guarantee Time: | 1 Year |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set/pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Blanket cloth or wooden case pacakge |
| Delivery Time: | 7-10 days |
| Payment Terms: | 30% T/T deposit, 70% before shipment |
| Supply Ability: | 60 sets/month |
|
Detail Information |
|||
| Highlight: | bottling filling machine,aerosol can filling machine |
||
|---|---|---|---|
Product Description
Empty Aluminum Can Filling Line - Beverage Aluminum Can Rinser SUS304 With CE
Quick Detail:
1. Capacity: 1000-2000 Cans / Hour
2. Avaliable to new empty aluminum can or PET can
3. Water pump for pure water or sterilized water ringsing
4. Main material: SUS304

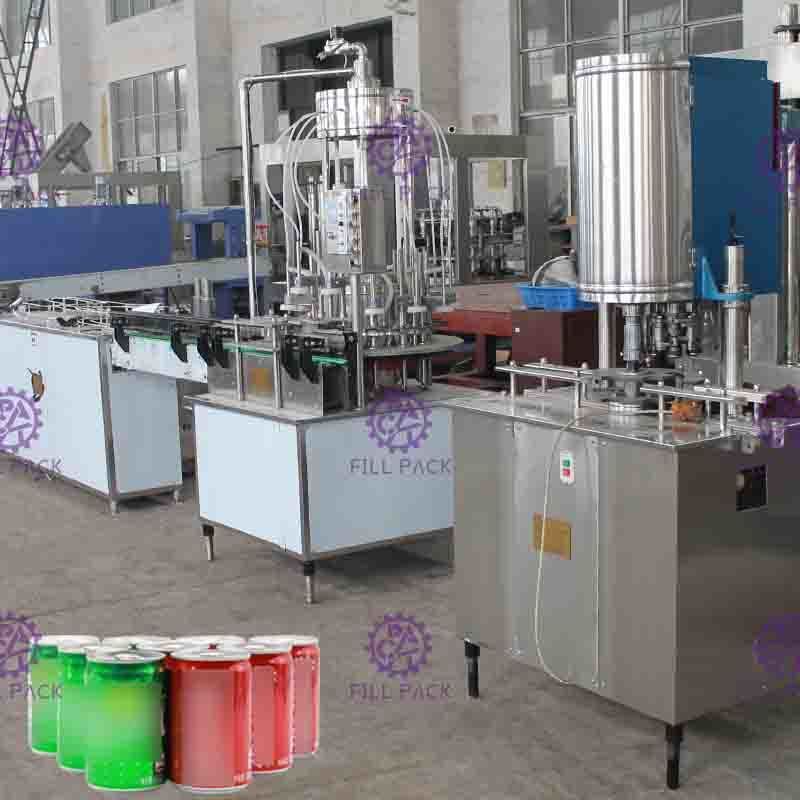

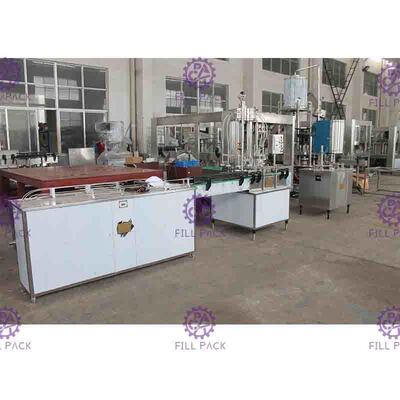

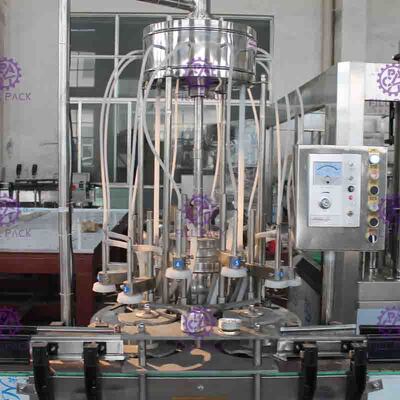

5. Can rinser + can filler + can selaer
6. Manual put the cans into rinser
Description:

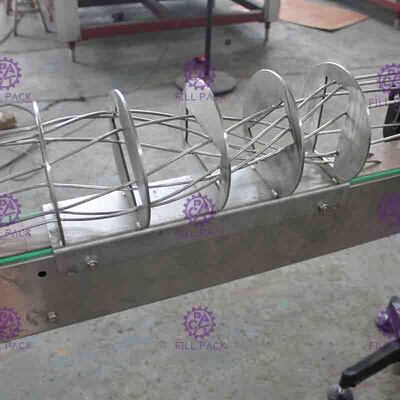

This can rinser is revolution inclined type can rinser;
One end of the cabinet is entrance of the cans, usually it need to work together with unpiler, if the client do not have unpiler, he will need to set up one high flat roof for manual loading of cans;
After the cans loading, they will be reversed 90 degree and pass the cabinet quickly with gravity when can mouth face to ground. The cabinet is inside set with 12 pcs of shower to spray water inside the cans to wash. After washing, the cans will be reversed again 90 degree to loaded on conveyor connected to filler.
The cabinet is connected with pump for water discharge. And the cabinet is with checking winder to check if any problem happen inside. And the roof of the cabinet is removable for repair and cleaning.
Operation process
1. Please put the can one by one to the can feeding conveyor by manual or the unpiler and open the water pump to wash.
2. The cans will be washed clean and will go forward with the manual push force.
3. The cans are through different direction and final stand up to the feeding conveyor of can filling machine.
Specifications:
| Model | YFGC-1 |
| Capacity | 1000-2000 Cans/H(500ml) |
| Material | SUS304 |
| Power | 0.37 KW |
| Water pressure | 0.15Mpa |
| Dimension | L1500*W500*H1860mm |
| Weight | 150kg |
