|Place of Origin:||China,JiangSu,Zhangjiagang|
|Certification:||CE & ISO & TUV & SGS|
|Control:||PLC Control With Touch Screen|
|Processing:||Japan & Germany|
|Suitable Bottle Size:||0.3-2L PET Bottle|
|Cap Style:||Plastic Screw Cap|
|Electrical Brand:||Mitsubishi, OMRON, SIEMENS|
|Warranty:||1 Year for Spare Parts|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden Case Package|
|Delivery Time:||30 Working Days After Receiving Your Deposit Payment|
|Payment Terms:||TT & L/C|
|Supply Ability:||20 sets/month|

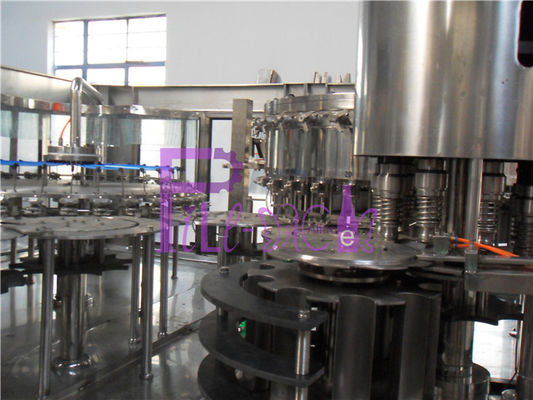

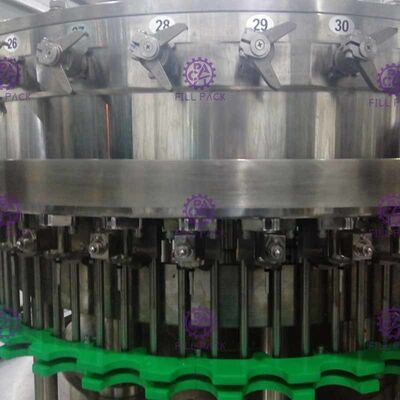

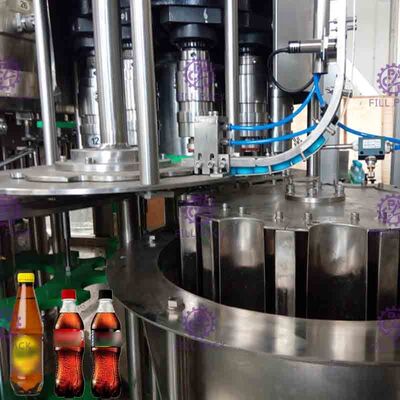

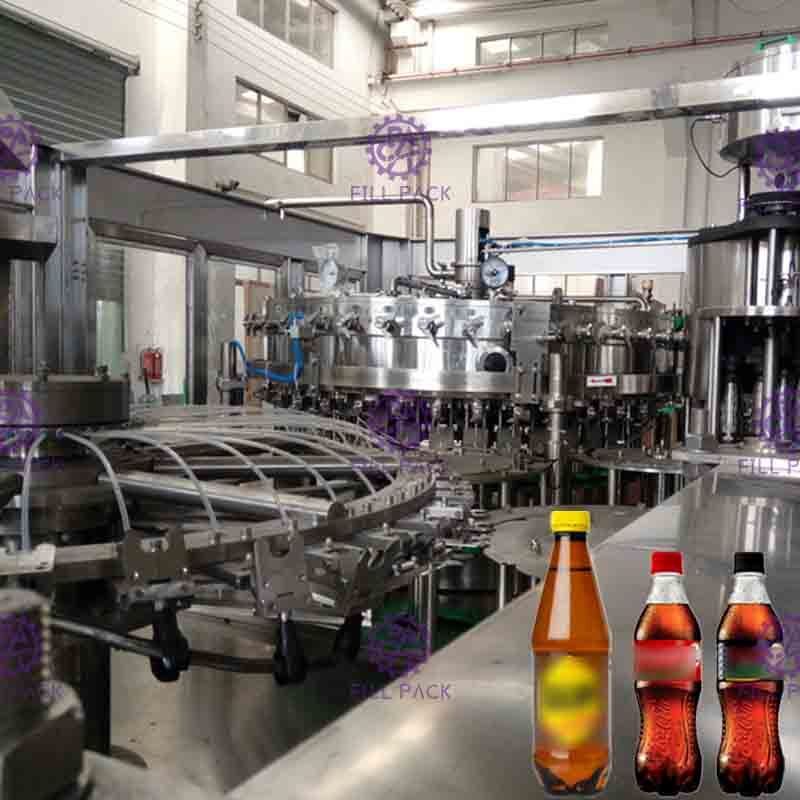

Full Automatic Energy Soft Drink Filling Line Aseptic Juice Processing Equipment
Name: Full Automatic Energy Soft Drink Filling Line Aseptic Juice Processing Equipment
Material: Food stage stainless steel
Control: PLC & touch screen control
Suitable Bottle: PET bottle
Bottle Volume: 0.3-2L
Dimension: By order
Function: Washing filling capping 3 in 1
Technology: Germany & Japan
After-sales service provided: Engineers available to service machinery overseas .
1. This series equipment is used in producing all kinds of energy drink / soda drink contained with PET bottle. Washing, filling, sealing can be carried out on the same machine. The design of the machine is scientific and reasonable. The appearance is beautiful and the function is complete. Its operation and maintenance is convenient. Its automation is high.
2. The advanced technology from Germany and Italy are employed. The speed of filling is fast and the liquid amount is controlled accurately. The filling device can be stopped automatically when there is no bottle or bottles are damaged. The advanced auto-washing technology is used in the system.
3. Pneumatic value and damped gears are used for bottle conveying, the noise is low and the whole machine runs smoothly.

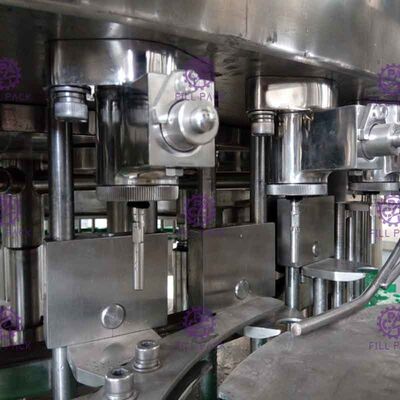

4. The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed. The caps can’t be damaged, the capping is reliable.
5. Horizon swirl air power caps sorting device is used to avoid damaging the surface of caps, and when there is a shortage of caps in the caps storage tank, an alarm signal will be generated and the caps will be fed automatically.
6. The whole machine is controlled by PLC with touch-screen as the interface between human and machine. The amount of the drinks in the drink tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or caps are not available, the machine can be stopped automatically.
|Model||DCGF12-12-4||DCGF 18-18-6||DCGF 24-24-8||DCGF G32-32-10|
|Water pressure of washing bottle||0.18-0.25Mpa|
|Water consumption for washing bottle (kg/h)||1300||2000||3000||4000|
|Dripping bottle position||3||5||8||10|
|Gas source pressure||0.4Mpa|
|Total weight (T)||2||2.5||3||4|
1. One year warranty for the whole system
2. Free equipment installation and debugging
3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price
4. Every 3 years, we can help to overhaul the machine free (Labor)
5. We can provide internship service and help you train the operator and mechanic
6. Free production technology and process configuration
7. We can help you to design the production line, workshop and provide turn-key project
