Automatic 8000BPH Plastic Soft Drink Filling Line For Carbonated Drinks

Automatic 8000BPH Plastic Soft Drink Filling Line For Carbonated Drinks

Product Details:

Place of Origin: China,JiangSu,Zhangjiagang
Brand Name: FillPack
Certification: CE & ISO & TUV & SGS
Model Number: DCGF24-24-8

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case Package
Delivery Time: 30 Working Days After Receiving Your Deposit Payment
Payment Terms: L/C, T/T,
Supply Ability: 20 sets/month
Get Best Price Contact Now

Detail Information

Filling Material: Carbonated Drinks Control: PLC Control And Touch Screen
Suitable Container: PET Bottle Cap Type: Plastic Screw Cap
Bottle Size: 0.2-2L Guarantee Time: 1 Year
High Light:

electric filling machine


industrial filling machine

Product Description

Automatic 8000BPH Plastic Soft Drink Filling Line For Carbonated Drinks



Quick Detail:


Name: Carbonated Soft Drink Filling Line 3 in 1 Monoblock filling line With High Speed

Material: Stainless steel
Control: PLC & touch screen control
Capacity: 6000 - 8000bph
Suitable Bottle: PET bottle
Bottle Volume: 0.3-2L
Dimension: customized
Machine structure: Washing filling capping 3 in 1
Technology: Germany & Japan
Service: Engineers available to service machinery overseas .

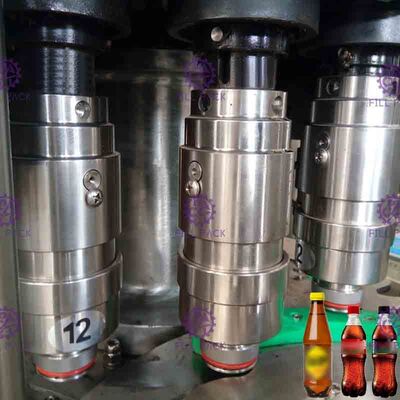

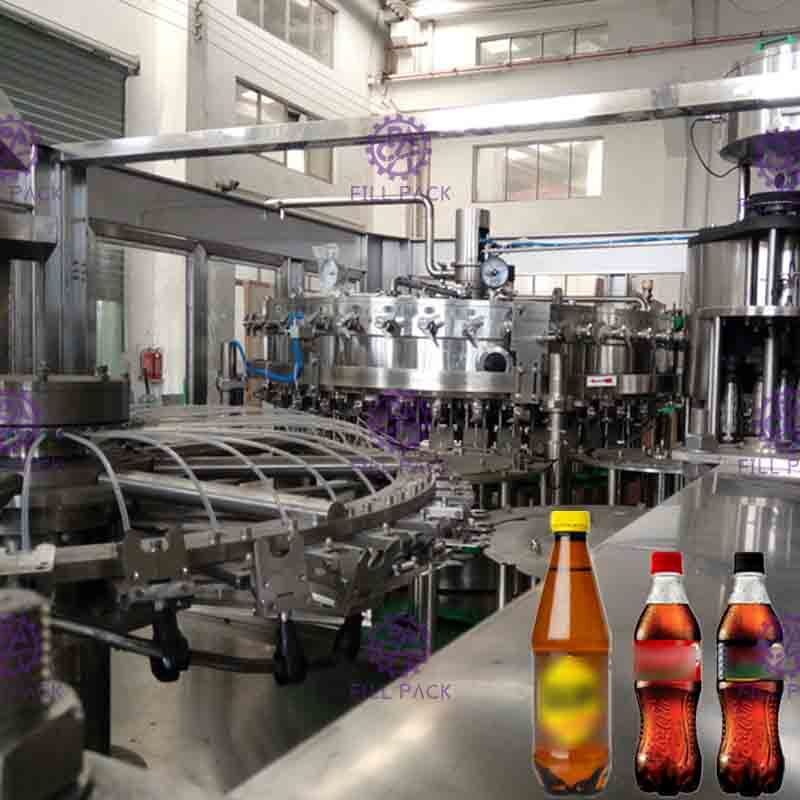

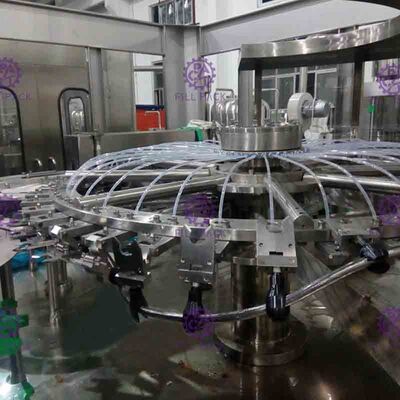

1.The machine is mainly used for filling carbonated drink. It combines rinsing and filling and

capping as one automatic body suitable for PET or other plastic bottles. The iso-pressure

(iso-barometric) filling technology is adopted enabling it to fill more efficiently and more stably

with more output than the machine of the same level from others.

2.Besides using photo-electronic detectors to detect the running of every important sub-process,

it employs PLC from OMRON for automatic control of the whole process and new type air-channel

for bottle-loading featuring speediness and damage-free of bottle. The handing-over of bottles

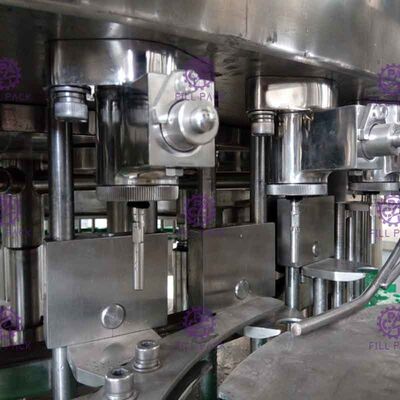

between two linking structures is fulfilled by applying clamping-bottle-neck method. For bottle of

different shape only a few parts need to be changed and the substituting is simple, which shows

the machine is of good adaptability.

High automation and easy operation make it an ideal option for beverage companies.



Technical data:


Model DCGF12-12-4 DCGF 18-18-6 DCGF 24-24-8 DCGF G32-32-10
Production B/H(600ml) 3000-4000 4000-6000 6000-8000 8000-12000
Bottle standard Neck: φ50-100mm Height:150-320mm
Water pressure of washing bottle 0.18-0.25Mpa
Water consumption for washing bottle (kg/h) 1300 2000 3000 4000
Spraying position 4 7 10 14
Dripping bottle position 3 5 8 10
Filing precision +5MM
Gas consumption(m³/min) 0.3 0.4 0.5 0.7
Total power(KW) 4.2 4.5 5 6.2
Total weight (T) 2 2.5 3 4
Dimension (L*W*H)mm 2100*1600*2100 2500*1750*2100 2700*2100*2100 3500*2100*2100






After sales service:


1. One year warranty for the whole system

2. Free equipment installation and debugging

3. After one year, we can help you to maintain the machine and the accessories are provided only

one the cost price

4. Every 3 years, we can help to overhaul the machine free (Labor)

5. We can provide internship service and help you train the operator and mechanic

6. Free production technology and process configuration

7. We can help you to design the production line, workshop and provide turn-key project



Company description:


    Zhangjiagang City FILL-PACK Machinery Co., Ltd. is a manufacturer enterprise specializing

in producing beverage packing equipment and various water treatment equipment. The company

has not only gained over ten year’s producing experience but also incorporated advanced technology

from home and abroad. So we have won high reputation among our customers domestic and abroad.


    At present we produce: production lines for mineral water, pure water, fruit juice, tea drink, milk

drink and carbonated drink with capacity 1000-20000bottles/hour, production lines for vinegar, soy

sauce and wine, 3-5gallon barreled water with capacity 80-120 barrels per hour and various water

treatment plant.


    Honesty, Sincerity, and good faith" is our spirit, while "High technology, high quality, and high

level" is what we look for. We try our best to satisfy our customers' needs with our good after-sales

service. We would like to cooperate with our friends and develop together. All friends from at home

and abroad are warmly welcomed to visit us.
