|Place of Origin:||China,JiangSu,Zhangjiagang|
|Automatic grade:||automatic with PLC touch screen|
|Gurantee time:||1 year|
|Voltage:||Customised or 380V, 50HZ, 3Phase|
|Minimum Order Quantity:||1 set/pcs|
|Packaging Details:||Blanket cloth or wooden case as machine need|
|Delivery Time:||25-30 days|
|Payment Terms:||30% T/T deposit, 70% before shipment|
|Supply Ability:||50 sets/month|
3-in-1 Washing Filling Capping Machine For 200ml - 1000ml Bottle Beer
1. Capacity: 3000-4000B/H
2. For fillng beer in glass bottle - crown cap
3. Automatic with PLC touch screen
4. 3 in 1 washing filling capping machine
5. Filling pressure: Balanced Pressure
6. Filling valves: special beer filling valves
7. For glass bottle 200-1000ml, we can also customise the machine as your bottle sample.
8. 16 washing heads, 16 filling heads, 6 capping heads
1. The beer filling machine is used in production of beer drink packed in glass bottles with crown cap.
Washing, filling and sealing parts are integrated in one machine, 3 in 1 type.
2. The whole machine is controlled by PLC with touch screen as the human-machine interface.
It is with English operation, easy to operate.
The filling and capping will be stopped automatically when there is no bottle.
When bottles are cramped wrongly or when caps are not available, the machine can be
3. The frequency changing technology is used to adjust the operation speed sleeplessly.
The production capacity can be displayed digitally and can be adjusted conveniently.

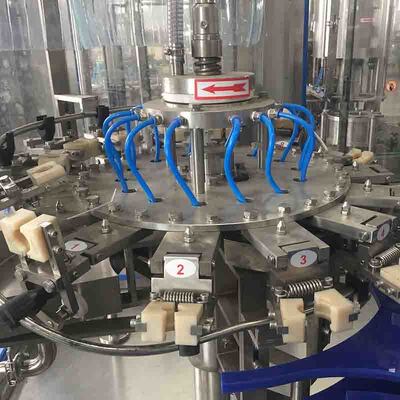

4. Bottle washing part:
Spring cramps are used in the bottle washing process.
The empty bottles can be turned over 180~ along the conveying rail.
There are two times of internal and external washing, the efficiency of bottle washing is high.

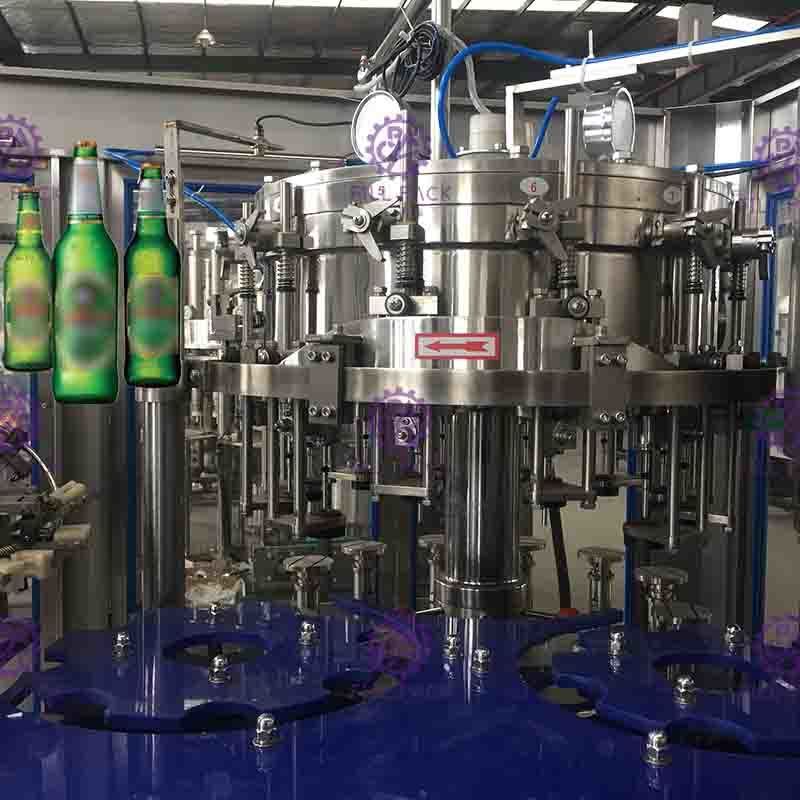

5. Bottle filling part:
The beer filling machine is designed with advanced technology.
The high quality of NanQing beer filling valve is adopted for filling the beer, with fast filling speed,
high filling precision, stable filling function, long life span to guarantee the quality.
The amount of liquid is accurately controlled and the dropping and leakage are avoided.

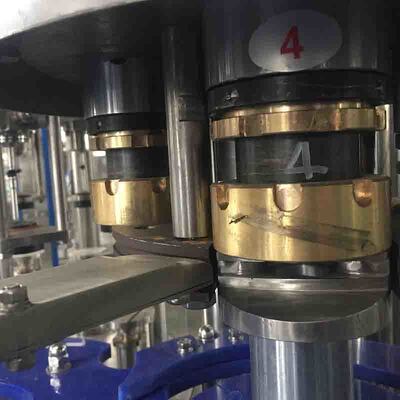

6. Bottle sealing part:
The crown cap pressing system is used for crown cap sealing. It is with automatic cap sorter,
cap loader, and cap sealing pressing head.
7. As the customer’s need, the filling machine is made with automatic cap lifter for easy lifting caps
into the cap sorter, then which will save a lot labor to put the caps into the cap sorter up the sealing part.
It's used to filling beer in glass bottle - crown cap, with bottle washing, filling, sealing machine.
Widely used in every beer factory, beer production line.
|Production Capacity||3000-4000b/h (500ml)|
|Work principle||Balanced pressure|
|Filling valve||Special beer filling valve|
|Bottle standard||Glass bottle - crown cap|
|Applicable bottle diameter||40 -100mm|
|Applicable bottle height||120 -320mm|
|Standard||PLC touch screen|
|Overall Dimensions||2500×1800×2400 mm|
